Specifications

Size

32inch

Panel item

RS320NET-N10

Panel type

a-Si TFT-LCD

Display mode

 IPS,Normally black,transmissive display

Pixels

1920*1080/3840*2160 optional

brightness

500-5000cd/m2

Contrast Ratio

1200:1

Response Time

6ms

Viewing Angle

89/89/89/89 (Min)

View area

700.6*396.5mm(H*V)

Display Area

698.4*392.85mm(H*V)

Outline Size

725.2*422.7*14.4mm(H*V*D)

Signal Type

LVDS

Refresh Rate

60Hz

Operating Temperature

-20~70°C

Storage Temperature

-30~80 °C

Aspect Ratio

16:9

Display color

16.7m

Backlight Voltage

12V

Backlight Power Consumption

40w

Surface Treatment

Haze 3%,Hard coating(2H)

Weight

4kgs

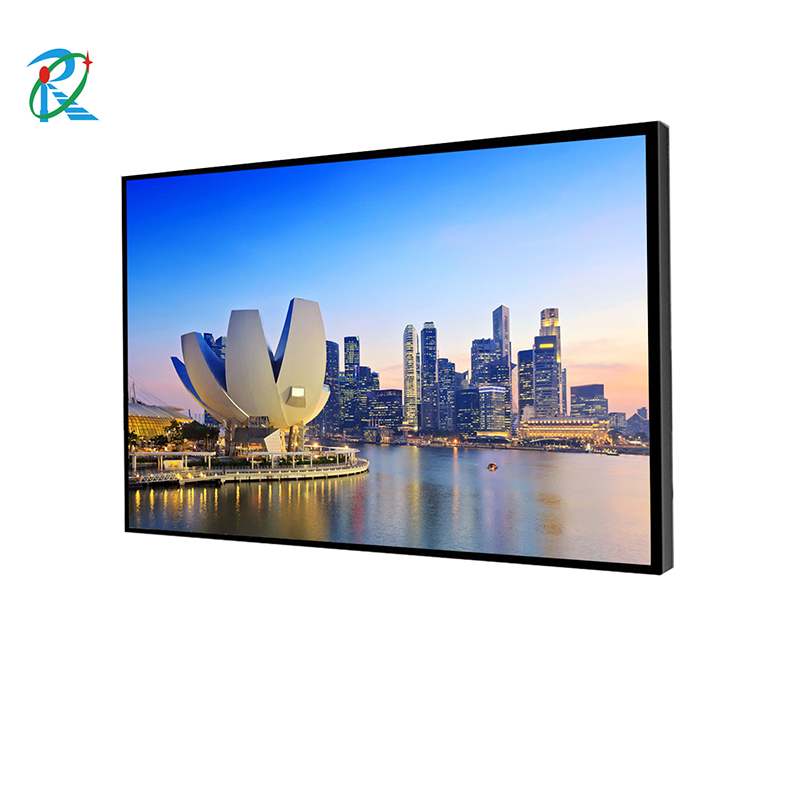

RS320ENT-N10 is a 32-inch LCD display with 1,000 nits brightness, 1920×1080 resolution and 1200:1 contrast ratio. Its operating temperature range is -20 °C to 70 °C.

32inch high brightness lcd panel ,the brightness 1000 nits ,Industrial grade lcd panel,with good performance and fast heat dissipation.

32inch high brightness lcd panel with Led backlight ,TFT-LED direct backlight,low power consumption. High brightness can be adjustment in the sunshine. Clearly pitucre and colorfull .

1000 nits digital screen

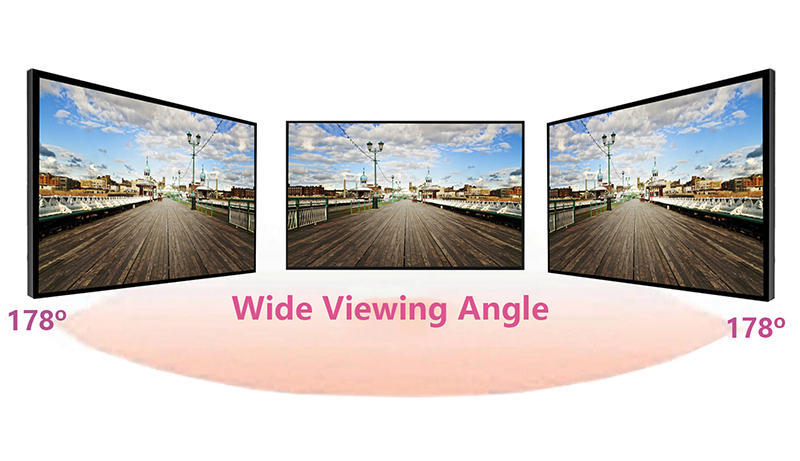

32inch high brightness lcd panel with wide viewing angel .

1000 nits lcd panel

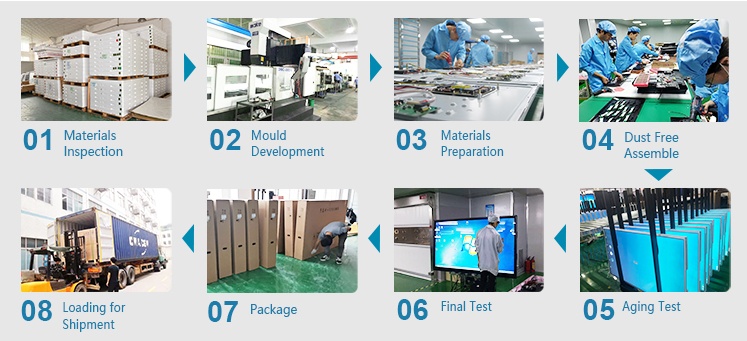

Risingstar high brightness lcd module production process:

75inch

Product FAQs

  • It is rated at 1,000 nits (cd/m²) brightness.

  • It uses a 32-inch panel, 1920×1080 resolution, 1200:1 contrast ratio.

  • The operating temperature range is -20 °C to 70 °C.

  • Yes. RisingStar is an OEM/ODM manufacturer and accepts customization requirements for volume orders; contact the sales team with your target specification.

  • It adopts LVDS interface.

  • The power input requirement is 12V.

  • The viewing angle is 89/89/89/89 (Min).

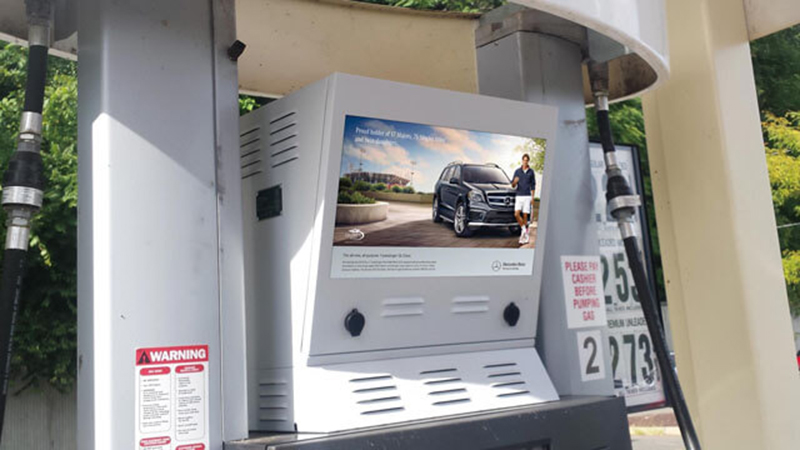

  • Yes. Rated at 1,000 nits, it is a high-brightness panel built for sunlight-readable and outdoor applications.

  • The panel surface treatment is Haze 3%,Hard coating(2H).

  • It uses a-Si TFT-LCD.
