High Brightness • Sunlight Readable • Industrial-Grade Reliability

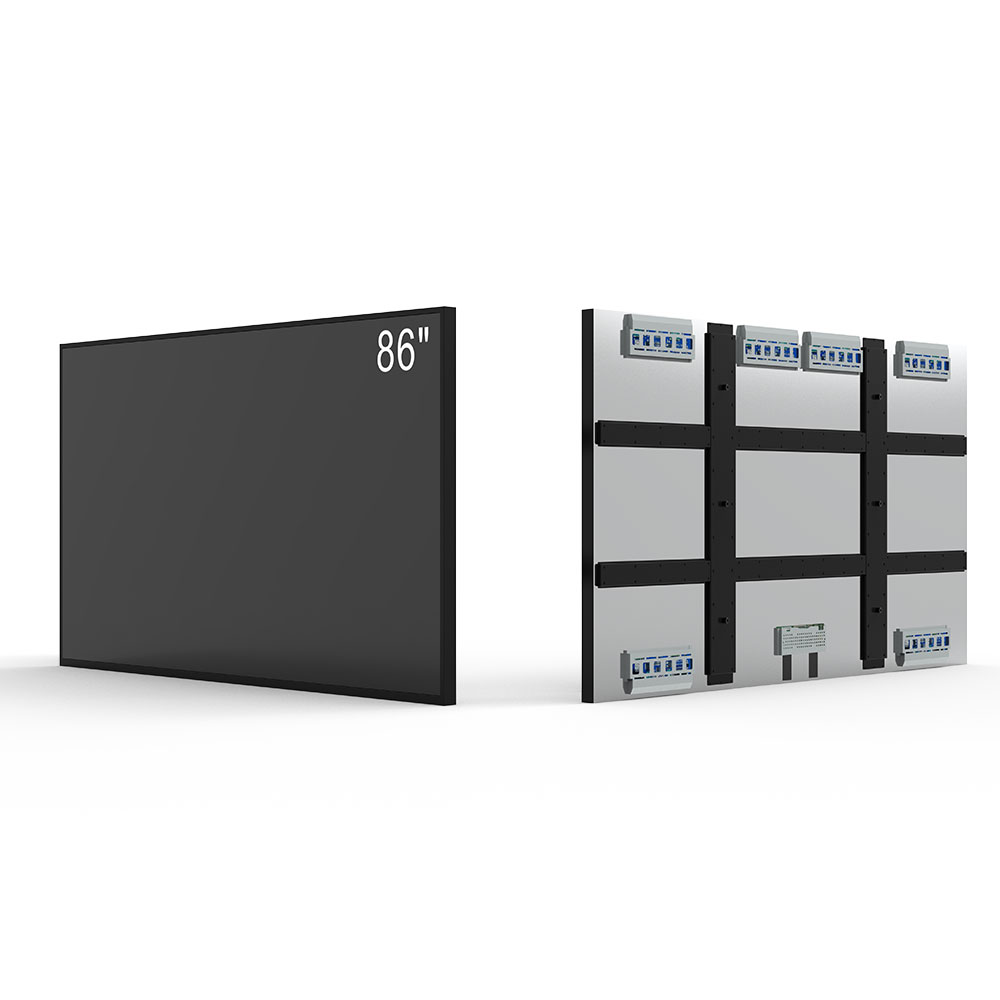

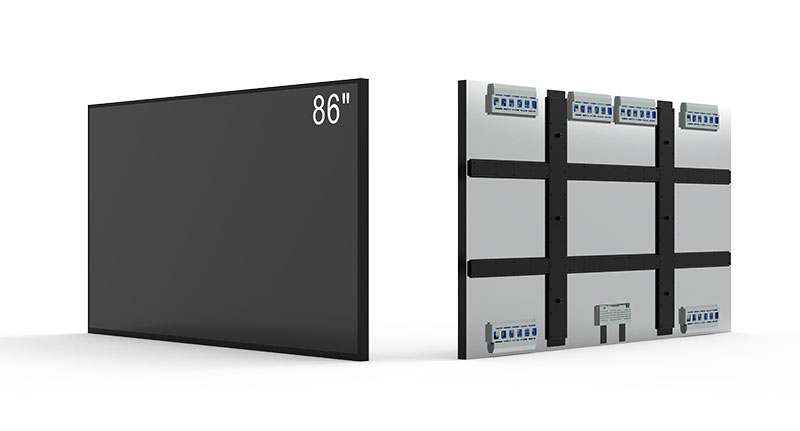

The RisingStar 86-Inch UHD 4K Outdoor Digital Signage LCD Panel is purpose-built for large-format outdoor advertising, smart city infrastructure, transportation hubs, and high-traffic retail environments. With over 3000 nits peak brightness and advanced direct-lit LED backlight technology, the panel ensures true sunlight readability even under extreme daylight conditions.
Designed with an industrial-grade aluminum structure and reinforced steel bars, this display delivers unmatched durability and stability for continuous 24/7 operation. It has been tested for extreme weather conditions, wide operating temperatures, and long-term brightness performance, making it the trusted choice for integrators and distributors seeking high reliability, low maintenance, and long service life.
Ultra-High Brightness (3000+ nits) – Delivers crystal-clear visibility in direct sunlight.
4K UHD Resolution (3840 × 2160) – Ensures sharp, vibrant, and detailed content for premium digital signage.
Sunlight Readable Performance – Anti-glare surface treatment, high contrast ratio, and optimized backlight uniformity.
Extreme Temperature Resistance – Tested for reliable operation in -20°C to +60°C outdoor environments.
Energy-Efficient & Low Heat – Industrial-grade low power consumption with optimized heat management.
Long Lifespan (50,000+ hours) – Designed for stable, long-term operation with minimal brightness degradation.
Durable Housing – Lightweight yet strong aluminum frame with weatherproof design.
Flexible Integration – Available in open frame or customized enclosure options, compatible with DOOH networks and smart kiosks.
| Parameter | Specification |
|---|---|
| Panel Size | 86.0 inch |
| Resolution | 3840 (RGB) × 2160 UHD |
| Brightness | 1000 to 5000nits |
| Contrast Ratio | 4000:1 |
| Viewing Angle | 89/89/89/89 (L/R/U/D) |
| Color Depth | 1.07B (10-bit) |
| Backlight Type | Direct-lit LED |
| Lifetime | ≥ 50,000 hours |
| Surface Treatment | Anti-glare, Hard Coating (3H) |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -30°C to +70°C |
| Housing | Aluminum structure + steel reinforcement |
| Input Interface | HDMI / DP / LVDS (customizable) |
| Power Supply | DC 12/24V or AC 100~240V |
| Certifications | CE, RoHS, FCC (optional: UL, IP-rated enclosure) |
Detailed specification sheet available for download upon request.

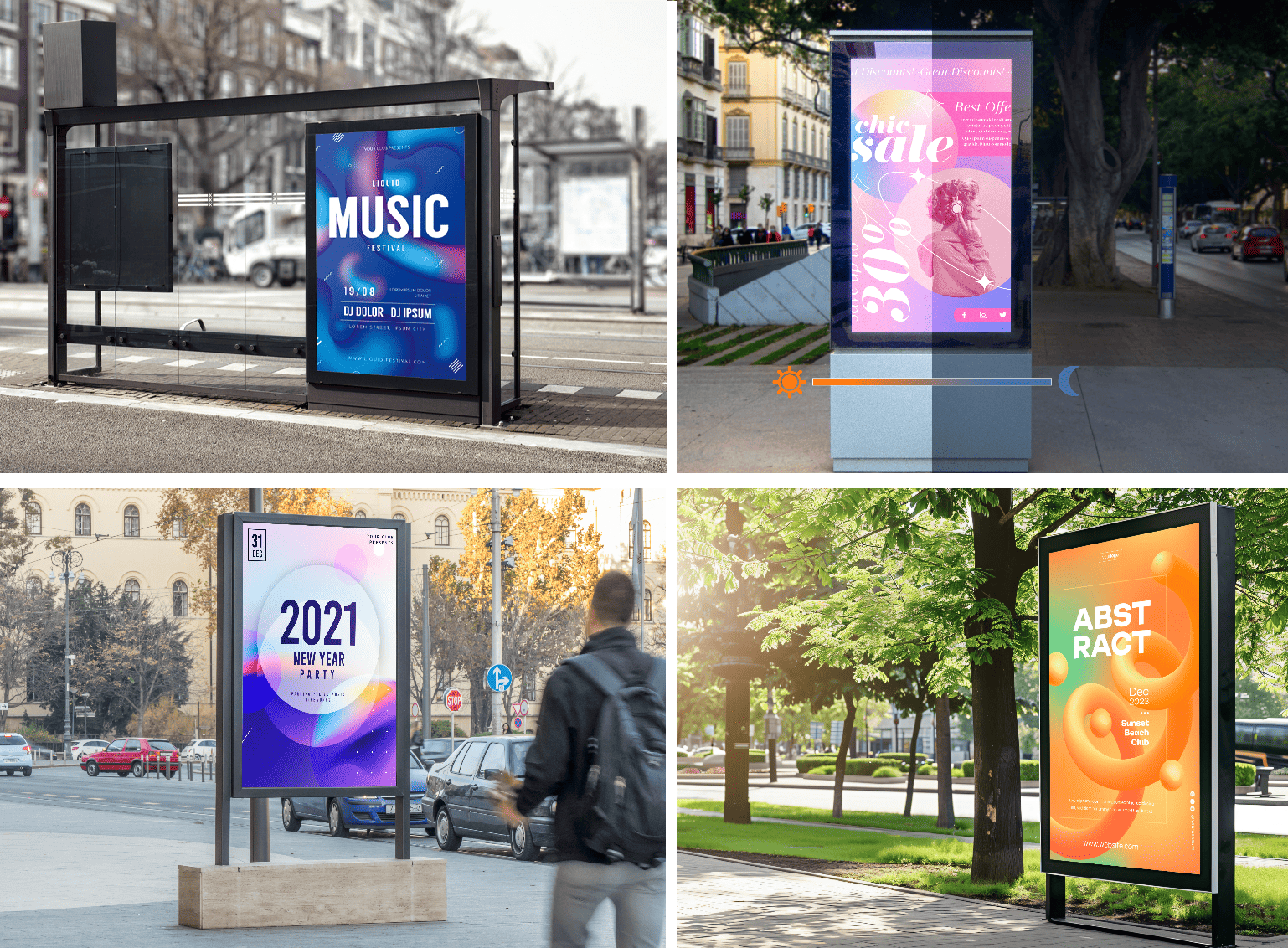

Outdoor Digital Billboards – Large-scale advertising in city centers, highways, and stadiums.
Transportation Hubs – Passenger information displays in airports, train stations, and metro systems.

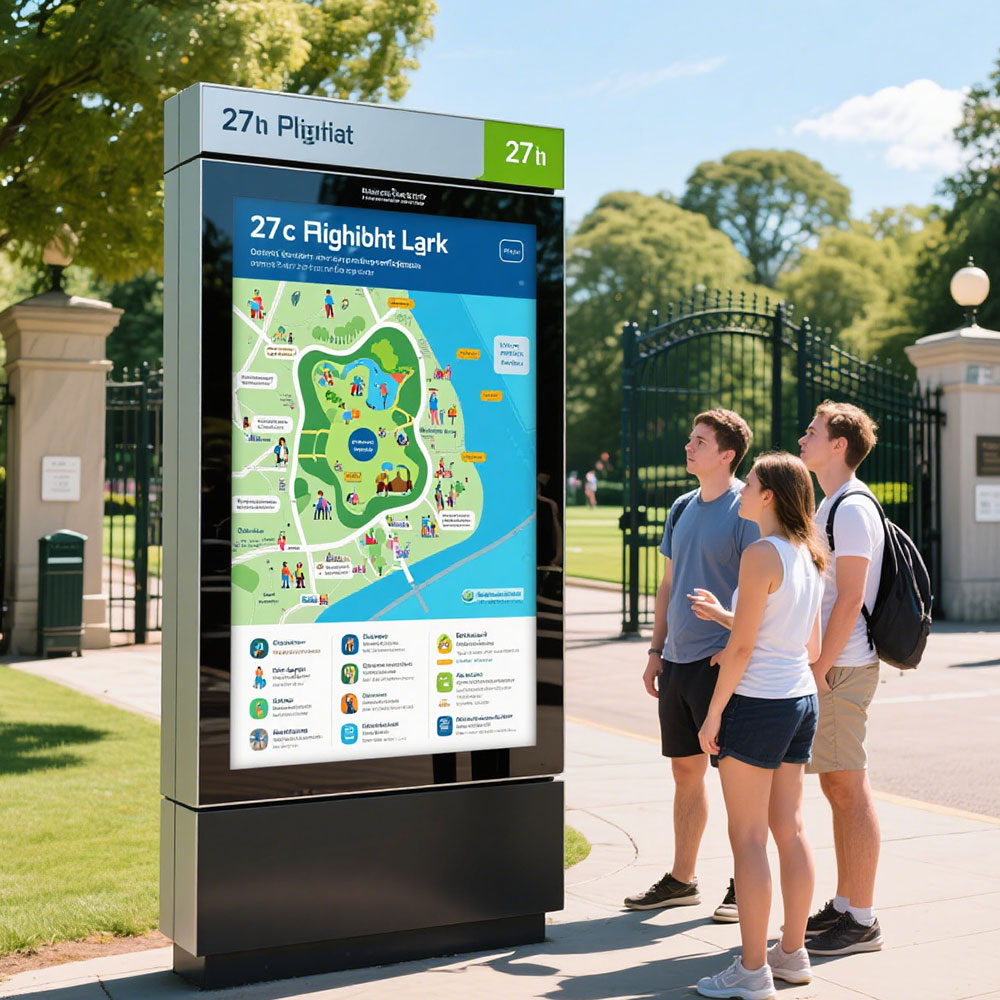

Smart City Infrastructure – Public information kiosks, EV charging stations, and outdoor service terminals.

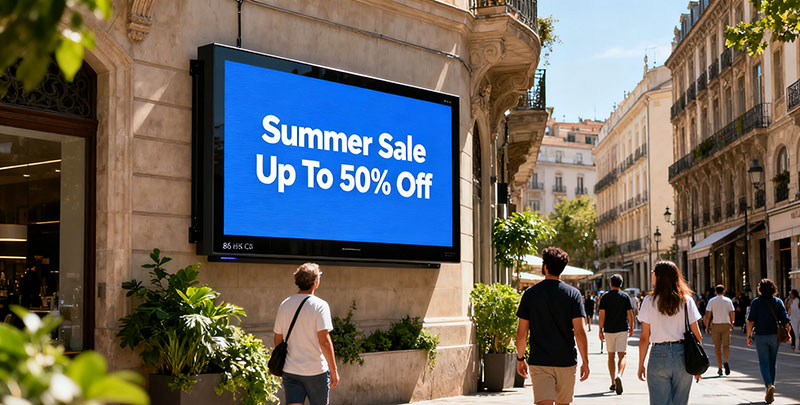

Retail & Real Estate – Shopfront signage, mall directories, and digital building displays.
Hospitality & Entertainment – Outdoor event screens, theme parks, and resort information systems.
By offering high reliability and minimized maintenance, this model allows integrators and distributors to reduce total cost of ownership while delivering consistent performance to end-users.
20+ Years of LCD Manufacturing Expertise – Trusted partner for global integrators.
Certified Quality Control – Each panel undergoes extreme temperature tests, vibration tests, and brightness stability checks before shipment.
Flexible Customization – Size, brightness level, interface, and housing options tailored to your project needs.
Global Distribution Support – Short lead times, technical documentation, and multilingual support available.
After-Sales Guarantee – Backed by 2-year standard warranty and extended service packages.
In 2024, RisingStar supplied 86-inch 4K outdoor LCD panels for a major airport signage upgrade project in Southeast Asia. The displays operate under 40°C direct sunlight conditions with stable brightness and zero downtime. Integrators reported 30% lower maintenance costs compared to previous generation panels, while advertisers praised the improved color accuracy and visibility.
Q1: How long will the brightness remain stable in outdoor conditions?
Our panels are rated for 50,000+ hours of backlight lifetime, with brightness degradation <10% over 3 years under typical outdoor operation.
Q2: Does the panel support waterproof housing?
Yes. While the open-frame design is standard, we provide IP55/IP65-rated enclosures for full outdoor weatherproof protection.
Q3: What is the lead time for bulk orders?
Standard lead time is 4–6 weeks depending on configuration. Custom solutions may require additional time.
Q4: Can RisingStar customize brightness or interfaces?
Yes. Brightness levels from 1500 nits to 5000 nits are available, and input interfaces can be customized for system integration.
Whether you are a display system integrator, distributor, or project contractor, RisingStar offers reliable, sunlight-readable LCD solutions that deliver long-term value.
👉 Contact us today for pricing, customization, and distribution partnership opportunities.
| Brand | RsingStar |
| Size | 86" |
| Panel Type | A-si TFT LCD |
| Panel Model | RS860ENT-GD30 |
| Resolution | 3840(RGB)×2160 UHD 59PPI |
| Brightness | 1000 to 5000nits |
| View Angle | 89/89/89/89 |
| Contrast Ratio | 1400:1 |
| Display Colors | 16.7M 72% NTSC |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 1897*1068 mm |
| Backlight | White LED |
| Outline size | 1930(W)×1111(H)×70.7(D) mm |
| Surface | AG, Hard coating 3H |
| Weight | 40 Kgs |
| Response Time | 8 ms |
| Refresh Rate | 60 Hz |
| Interface | 51 pins V-by-One 8 lane Connector |
| input voltage | 90 ~ 264 V |
| Operating | -20 ~ 60 ℃ |
| Storage | -20 ~ 60 ℃ |
