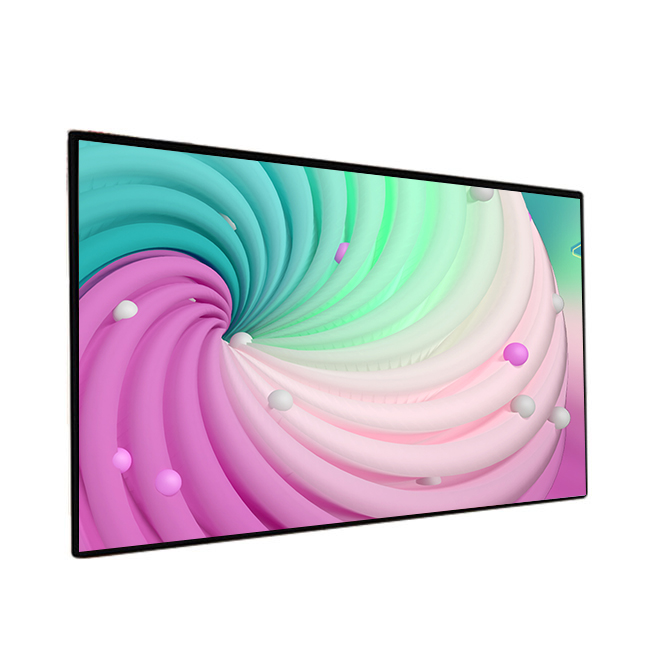

    AUO 65 inch advertising outside big screen P650HVN05.1

    P650HVN05.1 is a 65-inch advertising outside big screen that with 1920(RGB)*1080 resolution, and this screen is equipmented with a direct-light source LED backlight. P650HVN05.1 adopts LVDS (2 ch, 10-bit) signal interface, 51 pins, which are connected by terminals, and the drive voltage is 12.0V (Typ.)


    Brand:

    AUO

    Size:

    65"

    Panel Type:

    a-si TFT-LCD

    Panel Model:

    P650HVN05.1

    Resolution:

    1920 X 1080

    Brightness:

    2500  cd/m² (Typ.)

    AUO 65" advertising outside big screen P650HVN05.1 General Description:



    P650HVN05.1 is a 65-inch advertising outside big screen that with 1920(RGB)*1080 resolution, and this screen is equipmented with a direct-light source LED backlight. P650HVN05.1 adopts LVDS (2 ch, 10-bit) signal interface, 51 pins, which are connected by terminals, and the drive voltage is 12.0V (Typ.)

    This screen characterizes wtih a brightness of 2500 cd/m², a static contrast ratio of 4000:1 and an ability to work in the industrial temperature range (0~50°C).

    High brightness and contrast ratio are the main features of this screen, it can work for a long time with wide range of temperatures, and could be read from any angle, no gray scale inversion effect due to the IPS/MVA technology. it is recommended successfully to be applied as a wall mount advertising display( Standalone/network/touch screen), wall-mounted, vertical, horizontal, embedded, desktop, a variety of installation ways.




    P650HVN05

    With original AUO P650HVN05.1 screen, We, RisingLCD China factory can customize it as your wanted!

    OEM and ODM are welcomed!



    RisingLCD Advantage:

    OEM/ODM is acceptale!

    Small MOQ is acceptable!

    Competitive price!

    Fast Delivery time!



    RisingLCD is your best choice!



    Ref no. P650QVN06.0, P650QVN05.0

    Hot Tags: sunlight screen 2500 nits lcd panel, China, factory, cheap, price, customized, quotation, window facing LCD, 3000 cd/m² LCD Display, 43 Charging Pile LCD Advertising Player, 55 Inches Highlight LCD, 1000 cd/m²s LCD Screen, 82 LCD E-Reader, 21.5 LCD Strip Screen




    Hot Tags: AUO 65 inch advertising outside big screen P650HVN05.1 , manufacturers, suppliers, factory, Customized
    AUO 65" advertising outside big screen P650HVN05.1
    Panel BrandAUO
    Panel ItemP650HVN05.1
    Size65 inch
    Panel Typea-Si TFT-LCD,   LCM
    Resolution: 1920(RGB)*1080(FHD)   34PPI
    Pixel FormatRGB Vertical   Stripe
    Display Area1428.48*803.52(H*V)mm
    Outline   Size 1450.38*825.42*80(H*V*D)mm
    Bezel Area1430.78*805.85(H*V)mm
    Surface   Treatment Hard coating(2H),   Refection 2.0%(Max.)
    Brightness2500cd/m²
    Constrast   Ratio.4000:1
    View Angle89/89/89/89(Min)
    Display ModelAMVA3, Normally   Black, transmissive Display
    Best View   on Symmetry
    Response Time8 (Typ.)(G to G) ms
    Display Color1.07B  100% Srgb
    BacklightWLED, 60K hours, With   LED Driver
    Touch   Screen Without
    Panel   Weight 20.0Kgs
    Frame Rate60Hz
    Signal   Interface LVDS (2ch, 10-bit),   51 pins connector
    Input   Voltage 12v(Typ.)
    Working   Temperature0-+50 ゚C
    Storage   Temperature-20-+60 ゚C
    Current   State: In Production


    Quote for the Latest Price

    Ask a quote for the latest price and one of our team members will respond as soon as possible.
