A stretch bar display—also known as a stretched LCD bar display or ultra-wide bar screen—is a specially designed LCD panel that has been cut and re-engineered to achieve an ultra-wide aspect ratio. Unlike standard 16:9 monitors, these displays deliver panoramic visuals that fit narrow spaces such as store shelves, subway cars, elevators, vending machines, or fuel dispensers. Stretch bar displays combine high brightness, industrial durability, and custom dimensions, making them an innovative form of digital signage for space-limited environments.
The RisingStar 15.1-inch Stretch LCD Bar Display brings together cutting-edge display engineering and outdoor-grade performance, designed to operate flawlessly in 24/7 commercial and transportation settings.
Ultra-Wide Aspect Ratio – The stretched format delivers a sleek panoramic view ideal for real-time passenger information, shelf-edge promotions, or transportation dashboards.
High Brightness up to 3000~5000 nits – Ensures full readability under sunlight or high ambient light environments.
Direct LED Backlight – Provides uniform luminance, deep contrast, and lower power consumption compared to traditional edge-lit designs.
Industrial-Grade Components – Built for reliability with -30°C~80°C operating range, 50,000-hour lifespan, and 24/7 continuous operation capability.
Ultra-Slim & Lightweight Aluminum Structure – Easy to integrate into kiosks, vending machines, and space-limited enclosures.
Low Power & Low Heat – RisingStar’s efficient driver IC and thermal design reduce energy costs while maintaining optimal brightness.
Multiple Interface Options – HDMI, VGA, DP, RS232, and optional touch functionality for easy system integration.
Fully Customizable – Available in different lengths (8”–86”), resolutions, and enclosures, including waterproof IP65 options for outdoor use.
RisingStar stretch bar LCD displays are widely used across transportation, retail, and industrial sectors:

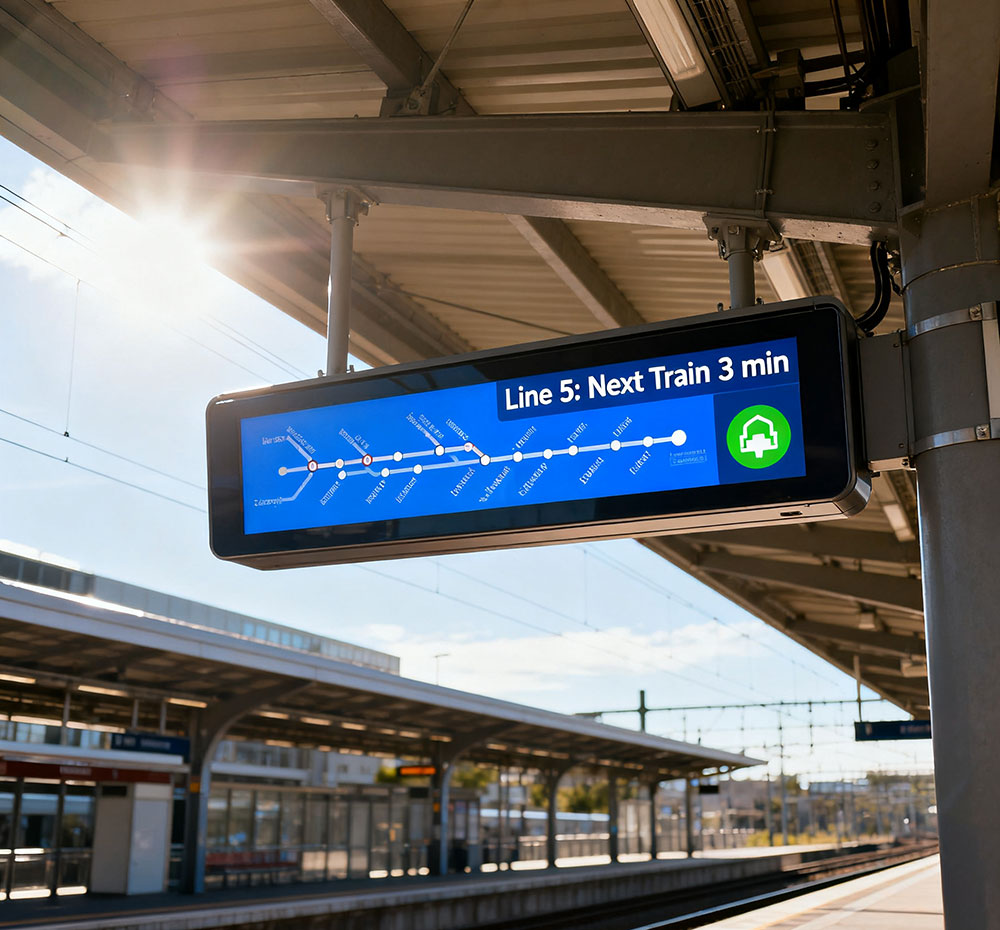

Passenger Information Systems (Railway / Metro / Bus) – Display schedules, routes, real-time arrival data, and service alerts.
Retail Shelf Edge Displays – Integrate product pricing, promotions, and digital content directly on store shelves.
Quick Service Restaurants & Drive-Thru Menus – Present dynamic menus and limited-time offers with outdoor readability.
Fuel Dispensers & EV Charging Kiosks – Withstand harsh outdoor conditions while displaying ads, instructions, or payment prompts.
Elevators & Public Spaces – Compact form factor ideal for news, announcements, and advertisement broadcasting.
Industrial Control & Equipment Monitoring – Embedded in machines or dashboards for high-contrast data visualization.
Each display undergoes extreme temperature testing, long-term aging verification, and vibration resistance evaluation to meet transportation and outdoor digital signage standards.
RisingStar is a global manufacturer specializing in high brightness LCD displays and outdoor digital signage solutions. With decades of industrial experience, we provide reliable products used in railways, retail chains, EV charging networks, and public information systems worldwide.
Our Strengths:
Over 15 years of professional LCD display manufacturing
ISO9001, CE, and RoHS certified production
In-house R&D team for custom-size LCD modules and open-frame monitors
5,000-hour continuous operation tests and real-case field deployment
Trusted OEM/ODM partner for global brands
Every RisingStar stretch display is designed and tested by experienced engineers who understand the challenges of outdoor readability, thermal stability, and long-term performance.
| Feature | Stretch Bar Display | Standard LCD |
|---|---|---|
| Aspect Ratio | Ultra-wide (32:9 / 48:9 / custom) | 16:9 |
| Brightness | 1000–5000 nits (sunlight readable) | 250–400 nits |
| Temperature Range | -30°C to +80°C | 0°C to +50°C |
| Mounting Flexibility | Custom enclosures, slim fit | Limited |
| Applications | Public info, retail, transport, kiosks | Office, indoor |
| Lifespan | 50,000+ hours | 20,000–30,000 hours |
This comparison highlights why stretched LCD bar signage is the top choice for modern digital display systems demanding both space efficiency and visibility.
RisingStar’s stretch displays can be integrated with popular content management systems (CMS) such as Scala, Novastar, BrightSign, or proprietary Android-based platforms.
They support remote scheduling, split-screen display, and real-time synchronization—enabling dynamic content delivery across multiple locations.
Q1: Can the stretch bar display be used outdoors?
Yes. RisingStar provides IP65 waterproof versions with high brightness up to 5000 nits for outdoor environments such as fuel stations or EV kiosks.
Q2: Is the size customizable?
Absolutely. We offer a wide range of stretched LCD modules from 8 inches to 86 inches, with optional touch, brightness, and housing customization.
Q3: What is the difference between stretch bar and shelf edge displays?
Both share a similar format, but shelf edge displays are typically lower brightness and optimized for indoor retail, while stretch bar displays are designed for both indoor and outdoor use with industrial reliability.
Q4: How is content updated?
You can update content via USB, LAN, or cloud-based CMS for remote management of multiple displays simultaneously.
Q5: What’s the warranty and lifespan?
Each unit comes with a 2-year standard warranty and a tested lifespan exceeding 50,000 hours of continuous operation.
The RisingStar 15.1-inch Stretch Bar Display represents the next generation of digital signage innovation—blending industrial durability, sunlight readability, and ultra-wide visual impact. Whether in transportation hubs, retail environments, or outdoor kiosks, RisingStar ensures your information and advertisements stay bright, reliable, and crystal clear under any condition.
👉 RisingStar — Your Trusted Partner for High Brightness, Sunlight Readable LCD Displays.

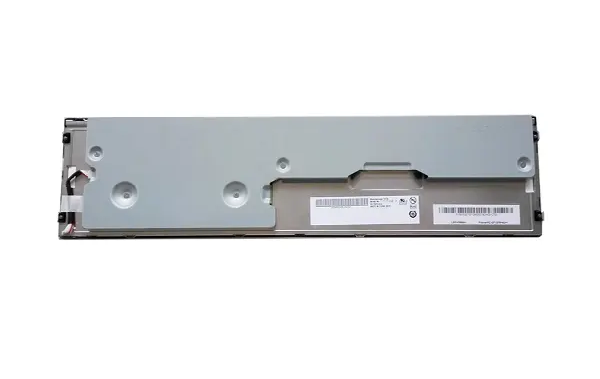

G151EVN01.0 is a 15.1 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen.
It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). WLED Backlight, Life ≥ 50K hours, With LED Driver, Bar Display, Matte , 1/4 Cut of 19". Based on its features, it is recommend that this model be applied to Industrial, Stretched Bar LCD etc.
· 15" stretch LCD digital signage bar display
· Stretch display
· Brightness of 300 nits
· Active area: 1428.48(H)*401.76(V)
· Dimension: 396(W)×100.8(H)×17.3(D) mm
· Resolutions: 1280*248
· Contrast ratio: 2000:1
· Wide viewing angle of 178° (H), 178° (V)
· Low power consumption
· MTBF: 50,000 hours
Risingstar offers a wide spectrum of indoor and outdoor ultra stretched LCD digital signage solutions. All these solutions are powered by our sophisticated, yet easy to use secure cloud-based content management system Web App. Whether you decide to manage one display or thousands, our comprehensive solution can handle any network scale imaginable
| Screen Diagonal | 15.1 inch |
| Model No | G151EVN01.0 |
| Active Area | 376.32(W)×72.91(H) mm |
| Pixels | 1280(RGB)×248, 86PPI |
| Physical Size | 396(W)×100.8(H)×17.3(D) mm |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| White Luminance ( Center ) | 300 cd/m2 (Typ.) [cd/m2 ] |
| Contrast Ratio | 2000:1 (Typ.) |
| Optical Response Time | 15/5 (Typ.)(Tr/Td), 8 (Typ.)(G to G) ms |
| Nominal Input Voltage | 5.0V (Typ.) |
| Frame Rate | 60Hz |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Weight [g] | 700g (Max.) |
| Interface Type | 30 pins LVDS (2 ch, 8-bit) |
| Support Color | 16.7M , 70% NTSC |
| Surface Treatment | Hard coating (3H), |
| RoHS Compliance | RoHS Compliance |
| Temperature Range | 0 ~50 °C |
| Storage (Non-Operating) | -20 ~ 60 °C |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
