RisingLCD 24 inch 1920*1200 IPS AUO display G240UAN01.0 lcd panel with 1000 nits sunlight readable
ShenZhen RisingLCD (RisingStar) 24" high brightness LCD screen, the high brightness 900cd/m2, High resolution 1920*1200, Full view angle,
High constrast 1000:1.
This LCD display is highly dersired feature in a situation of strong sunlight conditions, it could be fully readable in the sunlight.
Displays with high brightness many be successfully used e.g in expositions, stands, trains and buses, digital signage or other outdoor applications.
Hot Tags: M240UW01 V0 24 inch a-si tft lcd module, China, factory, cheap, price, customized, quotation, window facing LCD, Outdoor suspended advertising player, Smart LCD advertising playwr, Transparent LCD panel, LCD Splicing display
M240UW01 V0, M240UW01 V1, M240UW02 V2, G240UAN01.0, G240UAN01.1

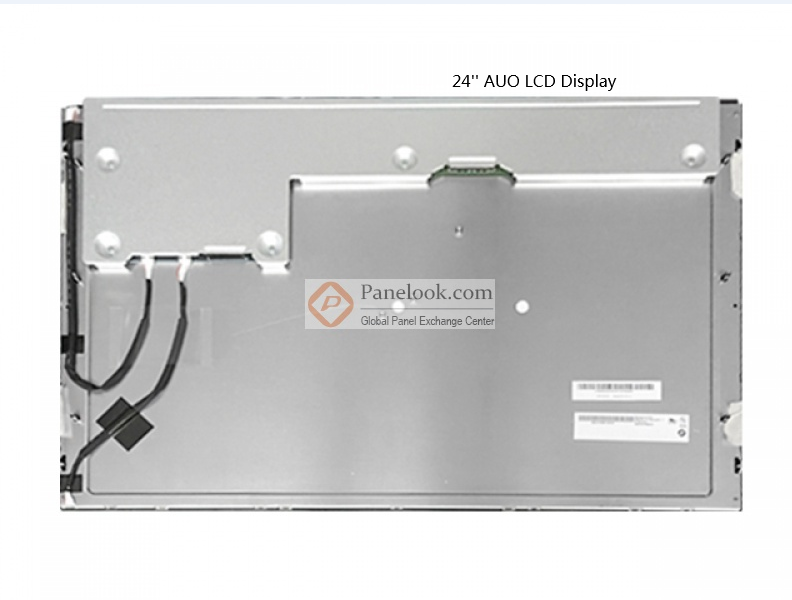

| 24.0" AUO G240UAN01.0 TFT LCD Panel Module | |
| Brand | AUO |
| Model | G240UAN01.0 |
| Diagonal Size | 24.0 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 1920(RGB)×1200 [WUXGA] 94PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 518.4(H)×324(V) mm |
| Outline Dim. | 546.4(H)×352(V) ×18.6(D) mm |
| Bezel Area | 521.4(H)×327.0(V) mm |
| Treatment | Antiglare |
| Luminance | 900 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 14 (Typ.)(Tr+Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | AHVA, Normally Black, Transmissive |
| Support Color | 1.07B 78% NTSC |
| Light Source | WLED , 50K hours , With LED Driver |
| Weight | 2.50Kgs (Typ.) |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 10-bit) , 51 pins Connector |
| Power Supply | 12.0±1.2V |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Current State: | In Production |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
