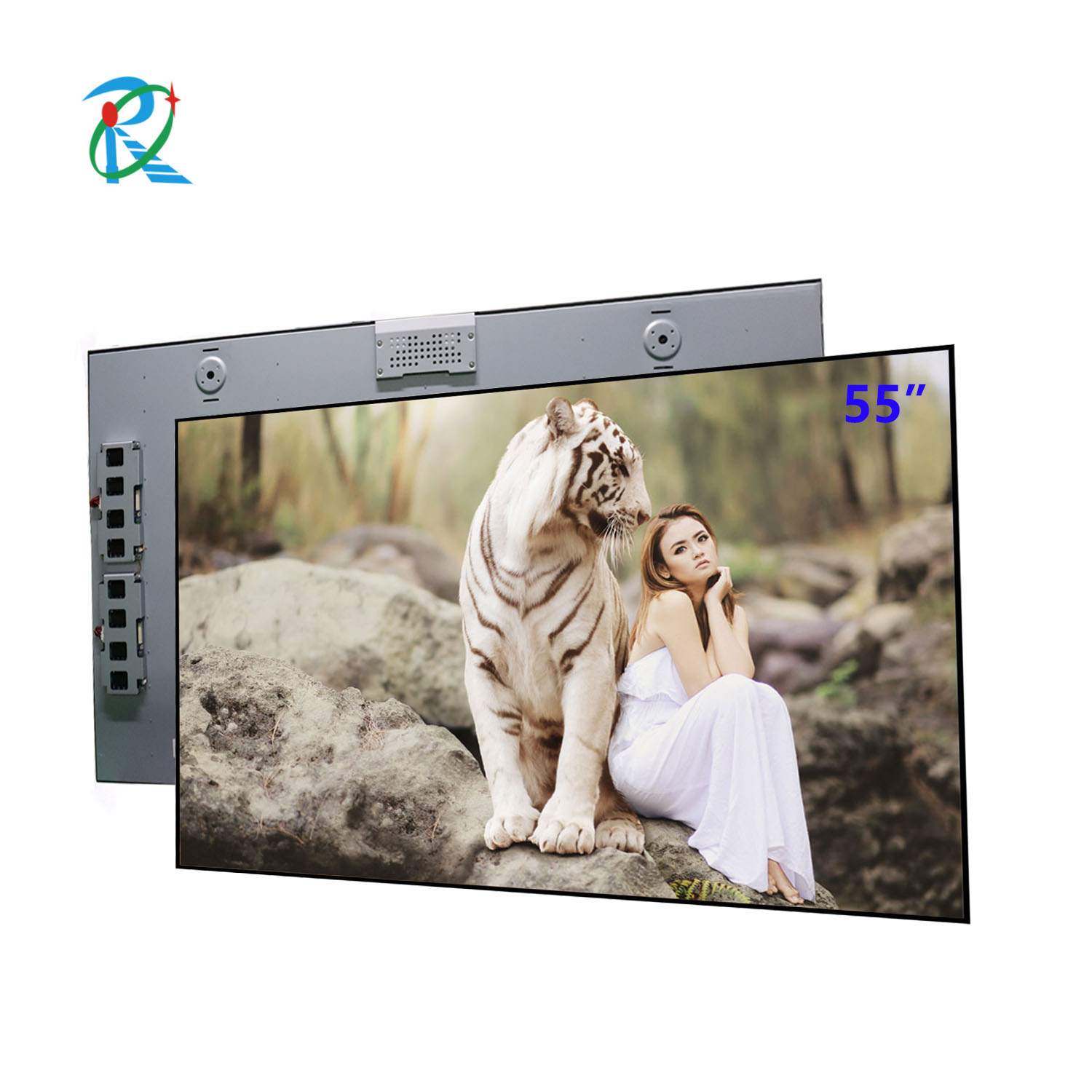

1920*1080(RGB) 55 inch High Brightness 500-5000nits HD LCD Screen  For Outdoor TV Show

1920*1080(RGB) 55 inch High Brightness 500-5000nits HD LCD Screen For Outdoor TV Show

RisingStar® 55 inch RS55750ENT-N05 sunlight readable display. 1000 nits high brightness, 1920 1080(RGB) resolution, Hi-Tni solar-resilient for 24/7 outdoor use.

OEM / ODM Manufacturer

Factory Direct

Order & Lead Time

Sample Order 1 Unit MOQ
Bulk Order 10+ Units Tiered Discounts

Need 50+ units? for framework agreements.

Global Shipping Options

Samples ship in ~10 working days; Bulk orders in 15-25 working days.

  • Express: DHL/FedEx door-to-door delivery (5-7 days)
  • Sea Freight: Cost-optimized bulk shipping (30-45 days)
  • Rush Orders: Available upon request for urgent projects

1-3 Year Standard Warranty

3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.

All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

Get Started

             RS550NET-N05  1920*1080(RGB) 55 inch High Brightness 500-5000nits HD LCD Screen For Outdoor TV Show,Low power,Industrial grade lcd panel,Accept to customized.

        Product frature as below:

        1.Fully modular design, easy to install and maintain; safety glass, explosion-proof radiation, high light transmission, zero UV High brightness LCD screen 500-5000nits

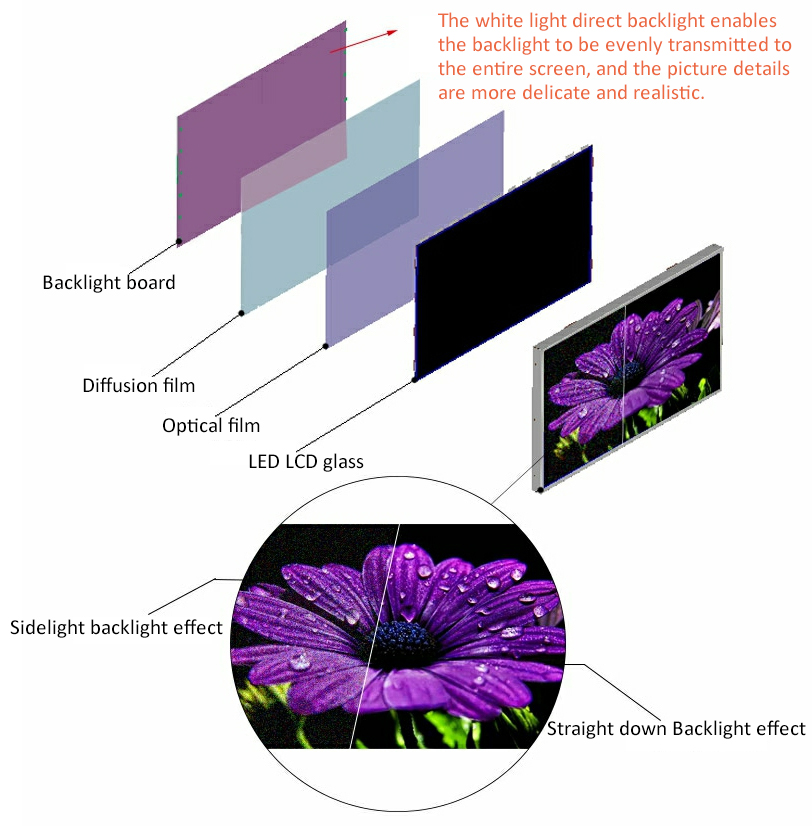

      2.Optical System Design
       LED backlight, environmental protection and energy saving;  Automatically dimming according to ambient brightness;The world's leading short-range wide-angle LED lamp beads; It has higher luminous efficiency and is more energy efficient.
The brightness of indoor screen is different from that of outdoor screen. Highlighting is not the only requirement in the complex  indoor light source. If the illumination environment suddenly darkens, a screen which can automatically adjust the brightness  according to the environment can make the viewer not hurt because the brightness of the screen is too high under the premise of  conveying information. Flexible change between high brightness and low brightness is the most important requirement for indoor screen



       3.Risinglcd Advanced Color Management Solution provides more detailed color management options that users can use automatically Or fine-tune the color manually. The direct-lit design has a brightness uniformity of over 90% from 3000 to 5000 nits. The color saturation is high, the picture is clear, and the picture quality is fine.



Size

 55 inch

Panel item

RS550ENT-N05

Panel type

a-Si TFT-LCD

Display mode

 IPS,Normally black.Transmissive

Pixels

1920*1080, FHD

brightness

500-1000cd/m2

Constrast Ratio

1200:1

View angle

89/89/89/89 (Min)

View area

1209.8*680.6mm(H*V)

Dispaly area

1209.6*680.4mm(H*V)

Outline Size

1242.1*718*40mm(H*V*D)

Working freqyency

60Hz

Respone Time

6ms

Working temperature

-20℃ ~ 70℃

Storage Temperature

-30 ~ 80 °C

Display ratio

16:9

Display color

16.7m/1.7B

Surface Treatment

Haze 3%,hard coating 2H

Weight

17.7kgs

RS55750ENT-N05 55 inch high brightness display 55 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Protection Rating Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Surface Finish Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Format Architecture Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

03 / Interface & I/O

Industrial signal and power regulation.

Connectors Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Power Regulation Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Sensor Suite Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology.
Optical Bonding Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio.
Advanced Coating Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

04 / Embedded & Data

Software architecture and data sync.

Operating Systems Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
Communication High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
