23.6 inch open frame high tni sunlight readable tft LCD

23.6 inch open frame high tni sunlight readable tft LCD

RisingStar® 23.6 inch RS236-OEM sunlight readable display. 2000 nits high brightness, 1366(RGB)×768 resolution, Hi-Tni solar-resilient for 24/7 outdoor use.

OEM / ODM Manufacturer

Factory Direct

Order & Lead Time

Sample Order 1 Unit MOQ
Bulk Order 10+ Units Tiered Discounts

Need 50+ units? for framework agreements.

Global Shipping Options

Samples ship in ~10 working days; Bulk orders in 15-25 working days.

  • Express: DHL/FedEx door-to-door delivery (5-7 days)
  • Sea Freight: Cost-optimized bulk shipping (30-45 days)
  • Rush Orders: Available upon request for urgent projects

1-3 Year Standard Warranty

3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.

All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

Get Started

23.6 inch sunlight-readable high-nit TFT LCD display with 2000 nits brightness that it can be easily viewed in bright outdoor conditions, such as direct sunlight. This makes it ideal for outdoor digital signage, transportation displays, and other applications where high visibility is essential.

This high tni open frame monitor can be customize in different sizes for multi-usage such as ATM ,viewing digital maps and other machines
This water proof monitor with very high touch sensitivity,can make very quick response and no drift
Industrial and high tni grade and high performance LCD panel, ensure image high definition and dependable performance
High reliability, high stability, suit to education and train, exhibition, public media, video meeting,force guarding, traffic management etc.

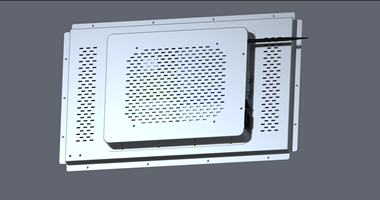

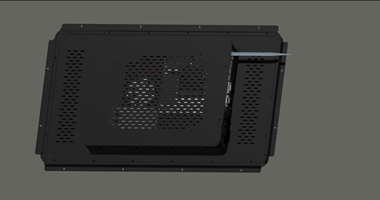

Open frame

1. Thin profile: The open-frame design allows the display to have a thin profile, which makes it suitable for applications where space is limited.

2. Easy integration: The open-frame design makes it easy to integrate the display into different types of products.

3. Cost-effective: Open-frame displays are often more cost-effective than other types of displays because they do not have an additional enclosure.

4. Customizable: Open-frame displays can be customized to meet specific application requirements, such as size, resolution, and brightness.

5. Versatile: They are suitable for a wide range of applications, including gaming machines, industrial equipment, medical devices, and transportation systems.

Sunlight Readable 2000nits brightness

RisingLCD 23.6 inch high tni 23.6 inch open frame LCD, custom 2000nits sunlight readable brightness, fanless cooling, android based media player, led backlight, blackening defect-free in direct sunlight, slim thickness, 1366*768 HD resolution



Panel
display screenLCD module
display size23.6 inches
display area521.5(W)×293.2(H) mm
display resolution1366*768
Zoom1 6 : 9
brightness, 2000 cd/m2 (center point, t yp ), sunlight readable
contrast5000:1
viewing angle89/89/89/89(Min.)(CR≥10)
Response time8ms ( Gray To Gray )
Uniformity of brightness ≧ 75%
color depth 16.7M
Operating Temperature-20 ~ 70 °C
system configuration
main chip68676
multimediaH265/H264 video decoding
system versionOSD
Interface
input interfaceUSB * 1 DC*1 hdmi*1 VGA*1
power inputAC 110-220V ~ 50/60Hz
RS236-OEM 23.6 inch high brightness display 23.6 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Protection Rating Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Surface Finish Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Format Architecture Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

03 / Interface & I/O

Industrial signal and power regulation.

Connectors Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Power Regulation Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Sensor Suite Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology.
Optical Bonding Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio.
Advanced Coating Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

04 / Embedded & Data

Software architecture and data sync.

Operating Systems Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
Communication High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
