    18.5 inch high brightness TFT LCD monitor
    • 18.5 inch high brightness TFT LCD monitor
    • 18.5 inch high brightness TFT LCD monitor
    • 18.5 inch high brightness TFT LCD monitor
    • 18.5 inch high brightness TFT LCD monitor

    18.5 inch high brightness TFT LCD monitor

    High brightness industrial LCD monitor, 1000 nits high  brightness, RisingLCD customized LED backlight technology ensures it high reliability and low power consumption, ideal for outdoor and industrial application.



    Model name:


    Screen size:


    Screen type:

    Open frame monitor



    Brightness (cd/m²):

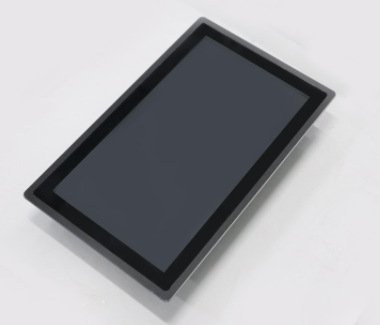

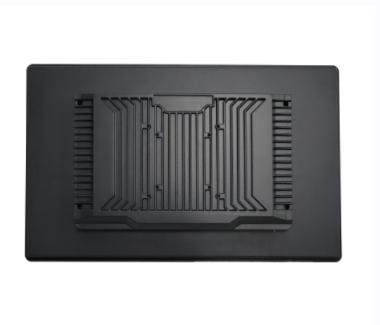

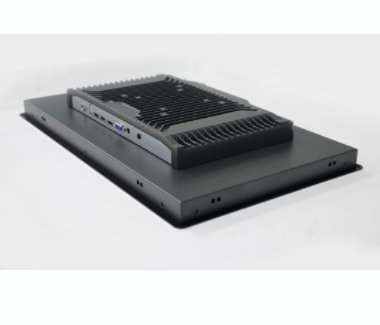

    RS185-MH01XT01BK is a 18.5 inch industrial grade high brightness LCD monitor, with high brightness 1000 nits, it produces sharp images, crisp text and lifelike colors. with VESA mount (75*75mm, 100*100mm), easy to mount for any space.

    18.5 inch high brightness LCD monitor Key Features

    High brightness 1000nits

    Edge LED Backlight

    Wide Viewing Angle of 178°(H), 178°(V)

    Wide Operation Temperature (-20 ˚C~70˚C)

    Fully enclosed industrial grade metal housing

    Low Power Consumption

    BL MTBF: 50,000 hours

    VESA Mount, (75 x 75mm,  100*100mm)

    Multi capacitive touch is option.

    More size high brightness LCD monitors are avaialble, 10.1 inch, 12.1 inch, 13.3 inch·15.6 inch·18.5 inch, 21.5 inch, 27 inch.

    18.5 inch high brightness LCD monitor application:

    Self-service terminals device, medical equipment, express cabinets, self-service vending machines, banking equipment, industrial equipment


    Hot Tags: 18.5 inch high brightness TFT LCD monitor, manufacturers, suppliers, factory, Customized
    Model NameRS18.5-MH00XT01BK
    Screen Size18.5 inch
    Display Area (mm)409.8(H) x 230.4(V)
    Brightness1000 cd/m
    Aspect Ratio16:9
    Contrast Ratio1000:1
    Pixel Pitch (mm)0.213(H) x 0.213(V)
    Viewing Angle85/85/85/85 (Typ.)(CR≥10)
    Color Saturation (NTSC)70%
    Display Colors16.7M
    Response Time (Typical)30(Typ.)(Tr/Td) ms
    Input InterfaceHDMI*1 VGA*1 AUDIO IN*1 HDMI*1DVI*1 DCIN*1
    Touch (optional)NC 2MM Tempered Glass
    Input PowerDC 12v
    Power Consumption21.5W
    Dimensions (mm)482 x 302 x 61
    Weight (Net)3.5KGS
    Operating Temperature-20 ˚ C ~ 70 ˚ C
    Storage Temperature-30 ˚ C ~ 80 ˚ C
