10.4 inch 1000nits high brightness LCD panel for industrial application
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

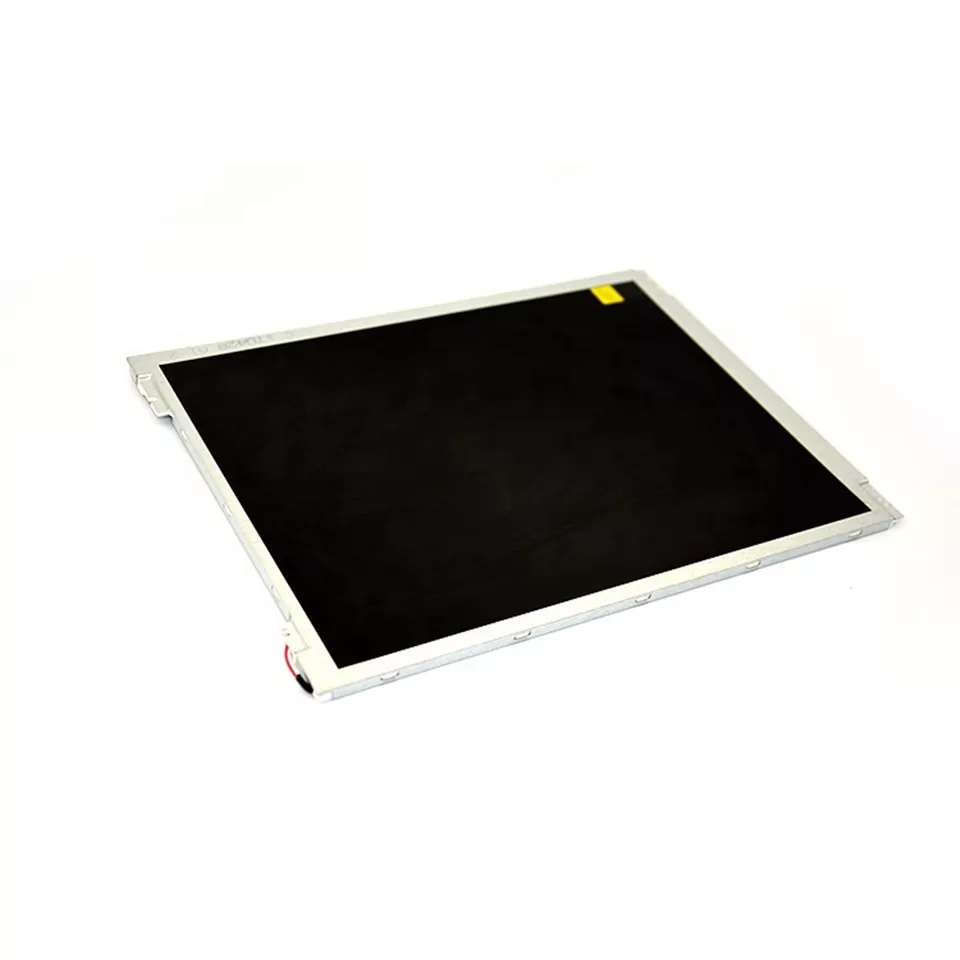

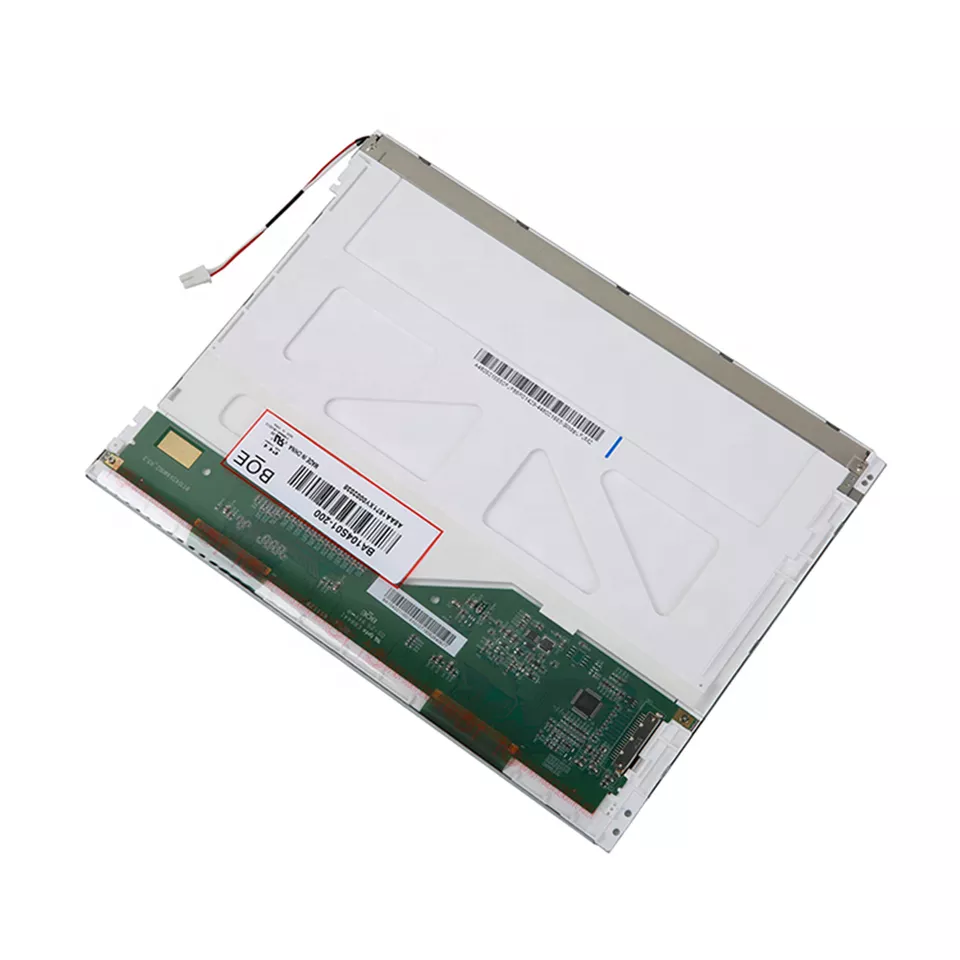

RisingLCD RS1040ENT-N10 is a 10.4 inch high brightness and professional LCD with IPS technology, with a brightness rating of 1000nits, this display features an ELED and energy-saving backlight for incredible, high contrast picture quality and low power consumption.
RS1040ENT-N10 is a industrial high brightness panel, 1024*768 native resolution, antiglare surface treatment, with LED driver, without touch screen, and it is with an operating temperature range of -30 ~ 85°C, life is above 50k hours. And LVDS signal type, This slim and light industrial LCD display is designed to fit a wide range of application, such as automotive display, medical display, self-service terminals display, military display and so on.
| Factory Model No: | RS104ENT-N10 |
| Panel Brand | BOE Display |
| Panel No.: | G104XCE-L01 |
| Screen Size | 10.4" |
| Active Area(mm) | 210.4 × 157.8 (H×V)mm |
| Outline(mm) | 225.5 × 176.3 × 9.2 (H×V×D) |
| Panel Type. | LCM , a-Si TFT-LCD |
| Aspect Ratio | 16:9 |
| Native Resolution | 1024(RGB)*768(XGA) 123PPI |
| Refresh Rate | 60Hz |
| Brightness | 1000nit (Typ, w/ Glass) |
| Contrast Ratio | 1000:1 (Typ) |
| Color gamut | 262K/16.2M 72% NTSC |
| Viewing Angle (H x V) | 88/88/88/88 (Typ.)(CR≥10 |
| Response Time | 13/12 (Typ.)(Tr/Td) ms |
| Display Mode | AAS, Normally Black, Transmissive |
| Surface Treatment (Haze) | Antiglare |
| Life time | up to 50,000 hoursrs (Typ) |
| Operating Temperature: | -20 ~ 70 °C |
| Storage Temperature: | -30 ~ 80 °C |
| Signal Type | LVDS (1 ch, 6/8-bit) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
