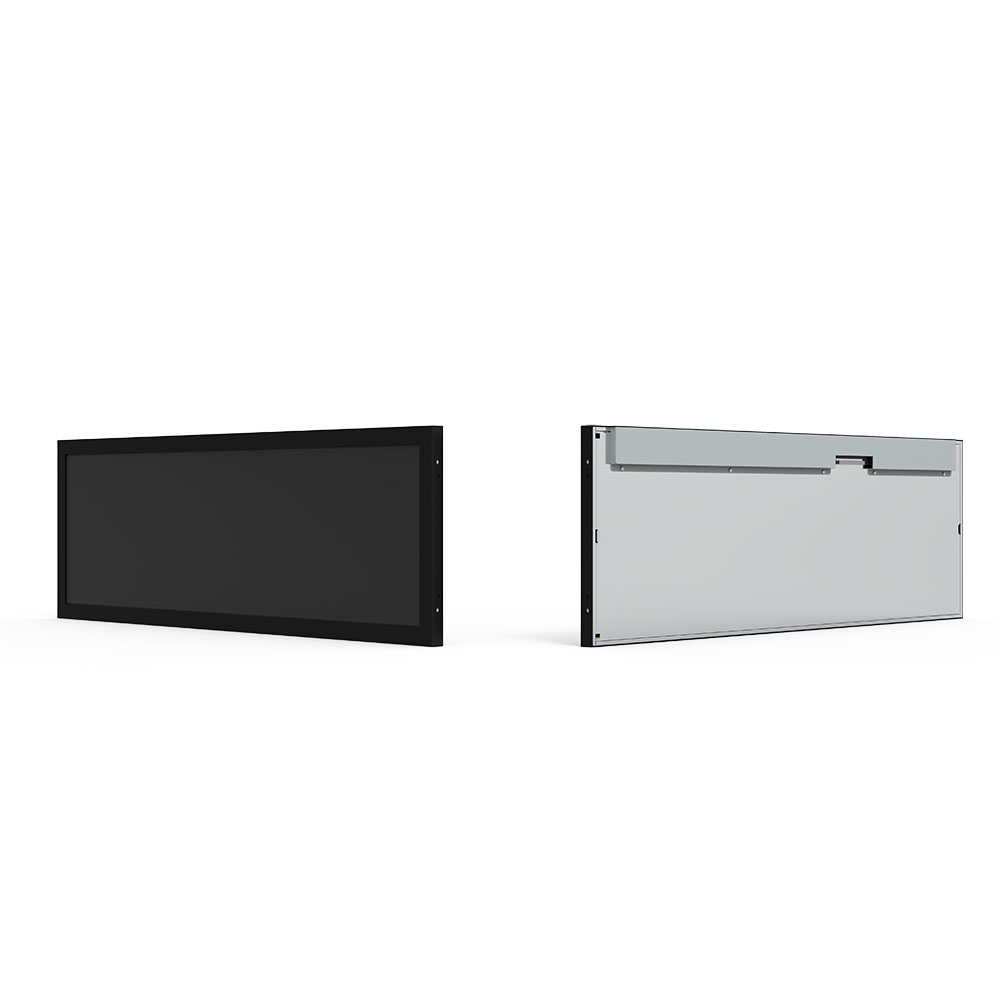

19.0 inch Industrial Stretched Bar Type LCD Panel – High-Performance, Ultra-Wide Display Solution
The 19.0-inch Industrial Bar Type LCD Panel is engineered for specialized applications requiring a wide aspect ratio and reliable performance. Featuring a resolution of 1680×342 and a pixel density of 90PPI, this panel delivers crisp, clear visuals across a wide 473.76 × 96.44 mm active area. Its high contrast ratio of 2000:1 and full viewing angles (89° in all directions) ensure excellent readability from any angle.
Designed with a P-MVA transmissive mode and an anti-glare surface treatment (3H hard coating), the display is optimized for industrial environments where durability and clarity are essential. With 300 nits brightness and a wide operating temperature range of 0°C to 60°C, it performs reliably in demanding conditions.
The panel supports advanced refresh rates including 60Hz, 120Hz with built-in MEMC, and up to 240Hz, providing smooth motion rendering. It is backlit by a long-life WLED system (50,000 hours) with integrated driver and consumes low power thanks to its 5.0V LVDS interface.

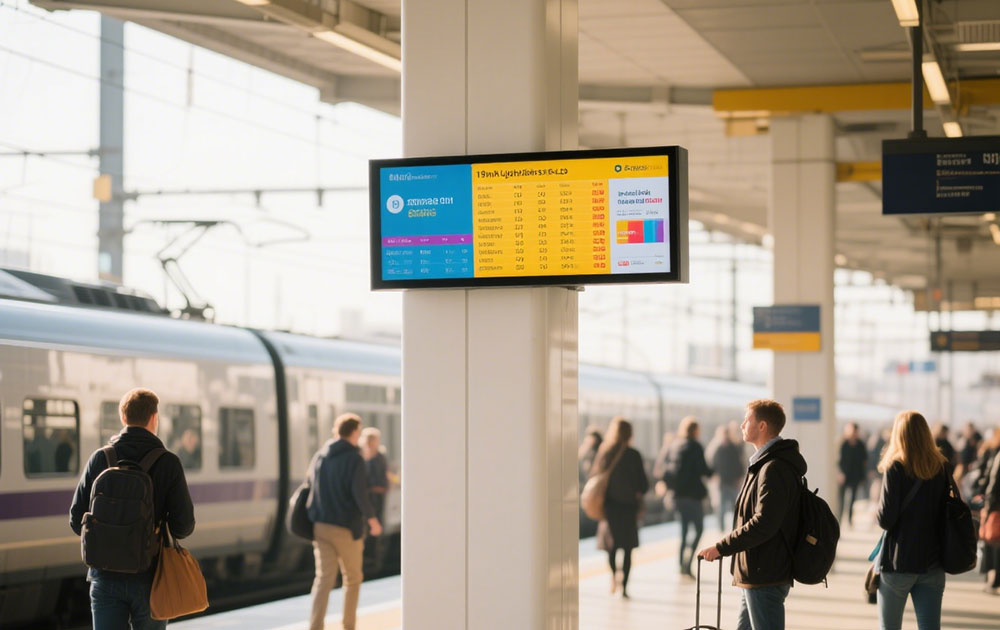

Ideal for transportation systems, automation displays, digital signage, and other industrial applications, this bar-type LCD panel is a powerful, space-saving display solution.
| Item | Specification |
|---|---|
| Panel Size | 19.0 inch (1/3 cut of 22.0 inch) |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1680 (RGB) × 342 |
| Pixel Density | 90 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 473.76 (W) × 96.44 (H) mm |
| View Area | 477.7 (W) × 100.44 (H) mm |
| Brightness | 2500/ 3000/ 4000/ 5000nits |
| Viewing Angle | 89/89/89/89 (Typ.)(CR ≥10) (L/R/U/D) |
| View Direction | All View Directions |
| Display Colors | 16.7M (72% NTSC) |
| Refresh Rate | 60Hz (native) 120Hz (MEMC, 60Hz input) 120Hz+120Hz (Panel + Backlight) 240Hz (MEMC, 60Hz input) |
| Weight | 1.50 kg (Typ.) |
| Surface Treatment | Anti-glare, Hard Coating (3H) |
| Contrast Ratio | 2000:1 (Typ.) (Transmissive) |
| Display Mode | P-MVA, Normally Black, Transmissive |
| Response Time | 15/5 ms (Typ.)(Tr/Td), 8 ms (Typ.)(G to G) |
| Backlight Type | 8S5P WLED, 50,000 hrs Lifetime, Integrated LED Driver |
| Touch Screen | None |
| Application | Industrial Bar Type / Cutting Display |
| Signal Interface | LVDS (2 channel, 8-bit), 30 pins, Terminal type |
| Driving Voltage | 5.0V (Typ.) |
| Operating Temp. | 0 ~ 60 °C |
| Storage Temp. | -20 ~ 60 °C |
| Item | Specification |
|---|---|
| Panel Size | 19.0 inch (1/3 cut of 22.0 inch) |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1680 (RGB) × 342 |
| Pixel Density | 90 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 473.76 (W) × 96.44 (H) mm |
| View Area | 477.7 (W) × 100.44 (H) mm |
| Brightness | 2500/ 3000/ 4000/ 5000nits |
| Viewing Angle | 89/89/89/89 (Typ.)(CR ≥10) (L/R/U/D) |
| View Direction | All View Directions |
| Display Colors | 16.7M (72% NTSC) |
| Refresh Rate | 60Hz (native) 120Hz (MEMC, 60Hz input) 120Hz+120Hz (Panel + Backlight) 240Hz (MEMC, 60Hz input) |
| Weight | 1.50 kg (Typ.) |
| Surface Treatment | Anti-glare, Hard Coating (3H) |
| Contrast Ratio | 2000:1 (Typ.) (Transmissive) |
| Display Mode | P-MVA, Normally Black, Transmissive |
| Response Time | 15/5 ms (Typ.)(Tr/Td), 8 ms (Typ.)(G to G) |
| Backlight Type | 8S5P WLED, 50,000 hrs Lifetime, Integrated LED Driver |
| Touch Screen | None |
| Application | Industrial Bar Type / Cutting Display |
| Signal Interface | LVDS (2 channel, 8-bit), 30 pins, Terminal type |
| Driving Voltage | 5.0V (Typ.) |
| Operating Temp. | 0 ~ 60 °C |
| Storage Temp. | -20 ~ 60 °C |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
