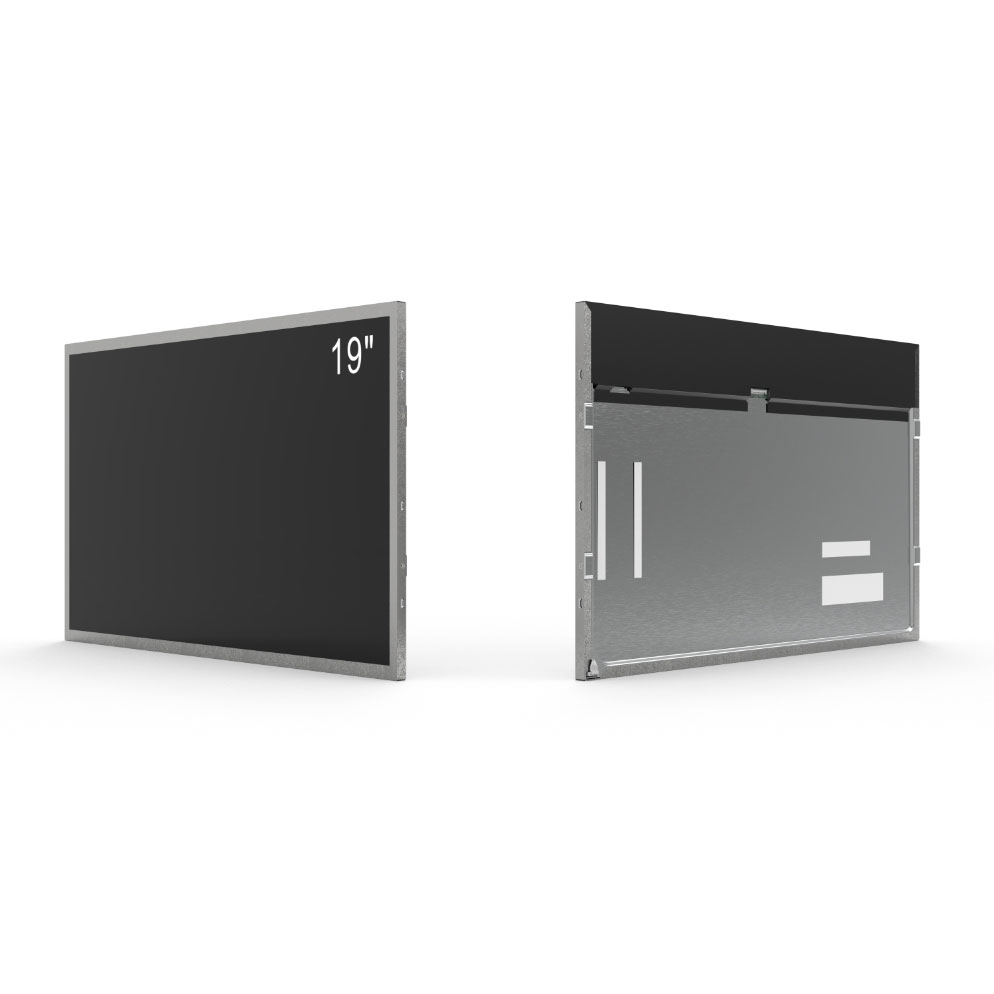

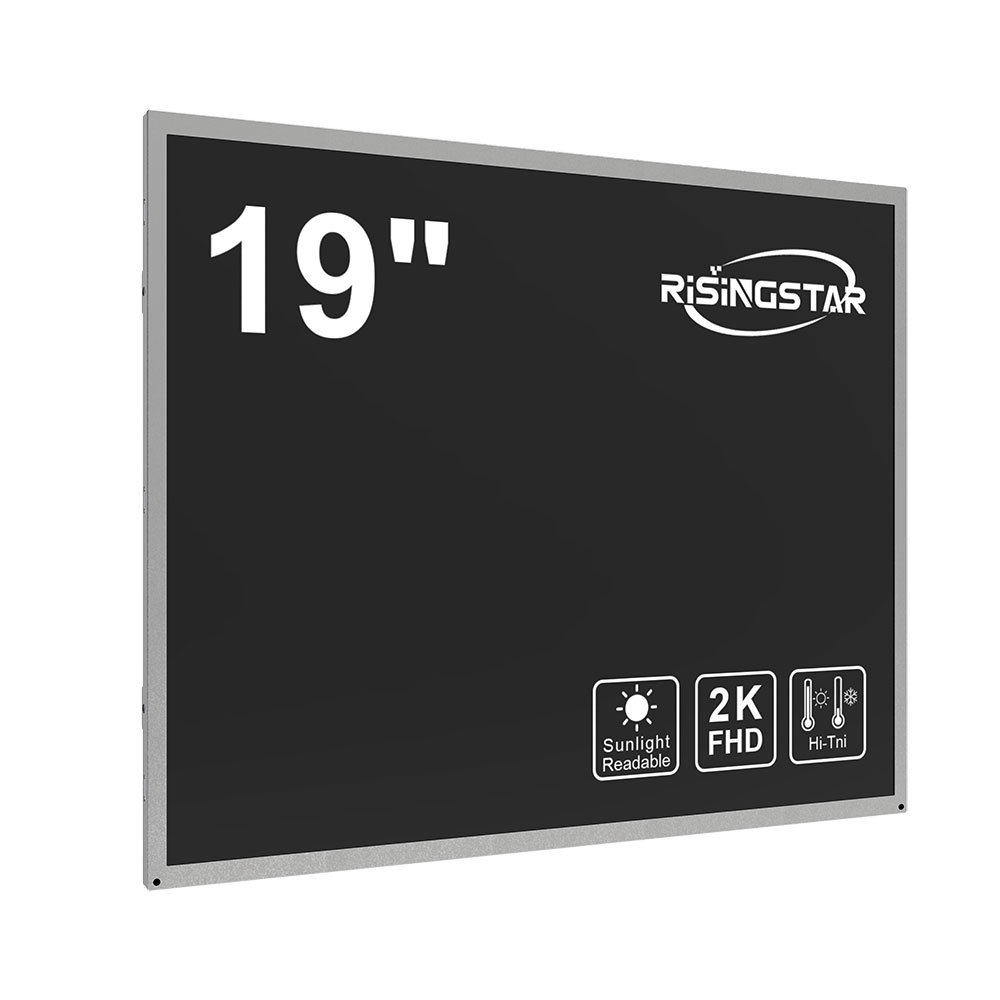

RisingStar's 19 inch 4:3 ratio high brightness LCD display module is an industrial-grade TFT-LCD solution designed for demanding environments where visibility and reliability are paramount. Featuring a native resolution of 1280×1024 (SXGA) and a pixel density of 86 PPI, this module delivers crisp, detailed images within a wide viewing area of 376.32(W) × 301.056(H) mm.
With customizable brightness levels ranging from 500 up to 5000 nits, the display ensures optimal readability even under direct sunlight, making it ideal for outdoor kiosks, industrial control systems, and public information terminals. The wide viewing angles (85°/85°/80°/80°, CR≥10) and 16.7 million color support (72% NTSC) guarantee consistent and vibrant visuals from all directions.
Constructed with a durable matte surface and hard coating (3H), the module provides excellent anti-glare performance. It utilizes a WLED backlight with a lifespan of up to 50,000 hours and integrates a built-in LED driver for simplified power design. Its typical contrast ratio of 1000:1 and rapid response time of 3.6/1.4 ms (Tr/Td) ensure smooth performance even in fast-changing scenes.
Operating on a 5.0V power supply via a 30-pin LVDS interface (dual channel, 8-bit), the display is engineered to perform reliably in environments ranging from 0°C to 50°C (operation) and -20°C to 60°C (storage). It supports 60Hz standard refresh rate and offers optional advanced frame rates up to 240Hz through MEMC technology for enhanced motion clarity.
This no-touch display module is well-suited for applications in industrial automation, medical equipment, transportation displays, and ruggedized outdoor systems where high brightness and longevity are essential.

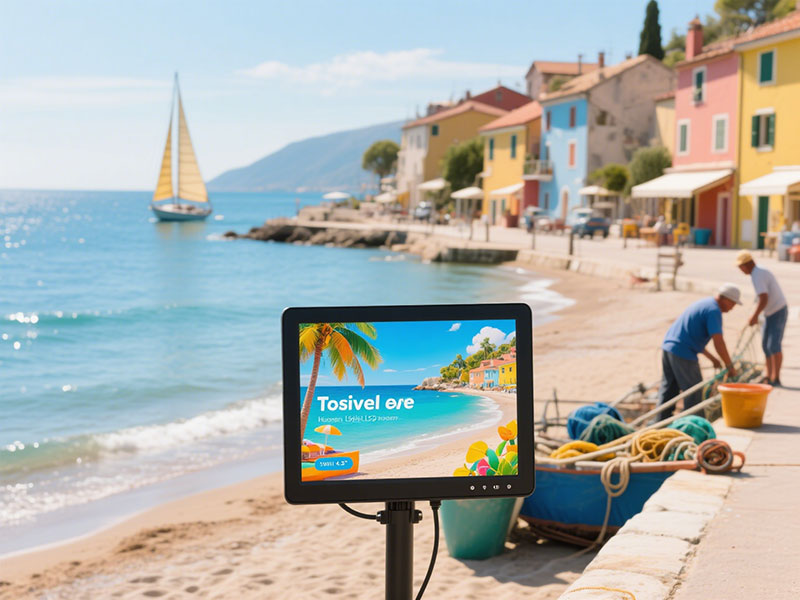

RisingStar 19 inch 4:3 ratio outdoor use case
| Specification | Details |
|---|---|
| Panel Size | 19.0 inch |
| Aspect Ratio | 4:3 |
| Resolution | 1280 (RGB) × 1024 (SXGA), 86 PPI |
| Active Display Area | 376.32 (W) × 301.056 (H) mm |
| Outline Dimensions | 380.32 (H) × 305.06 (V) mm |
| Brightness Range | 500 to 5000 nits |
| Viewing Angle | 85°/85°/80°/80° (Left/Right/Up/Down, CR ≥10) |
| Color Support | 16.7M colors, 72% NTSC |
| Contrast Ratio | 1000:1 (Typ.) |
| Response Time | 3.6 / 1.4 ms (Tr / Td) |
| Surface Treatment | Anti-glare, Hard Coating (3H) |
| Display Mode | TN, Normally White, Transmissive |
| Optional Panel Types | IPS, VA (Various Technologies Supported) |
| Backlight Type | WLED, with LED Driver, 50,000 Hours Lifetime |
| Weight | 1.67 kg (Typ.) |
| Frame Rate Options | 60Hz (Standard), 120Hz MEMC, 240Hz MEMC Available |
| Touch Panel | None (Non-touch) |
| Interface | 30-pin LVDS (2 channel, 8-bit) |
| Power Supply | 5.0V (Typ.) |
| Operating Temperature | 0 ~ 50°C |
| Storage Temperature | -20 ~ 60°C |
| Recommended Applications | Industrial displays, outdoor kiosks, control terminals |
| Specification | Details |
|---|---|
| Panel Size | 19.0 inch |
| Aspect Ratio | 4:3 |
| Resolution | 1280 (RGB) × 1024 (SXGA), 86 PPI |
| Active Display Area | 376.32 (W) × 301.056 (H) mm |
| Outline Dimensions | 380.32 (H) × 305.06 (V) mm |
| Brightness Range | 500 to 5000 nits |
| Viewing Angle | 85°/85°/80°/80° (Left/Right/Up/Down, CR ≥10) |
| Color Support | 16.7M colors, 72% NTSC |
| Contrast Ratio | 1000:1 (Typ.) |
| Response Time | 3.6 / 1.4 ms (Tr / Td) |
| Surface Treatment | Anti-glare, Hard Coating (3H) |
| Display Mode | TN, Normally White, Transmissive |
| Optional Panel Types | IPS, VA (Various Technologies Supported) |
| Backlight Type | WLED, with LED Driver, 50,000 Hours Lifetime |
| Weight | 1.67 kg (Typ.) |
| Frame Rate Options | 60Hz (Standard), 120Hz MEMC, 240Hz MEMC Available |
| Touch Panel | None (Non-touch) |
| Interface | 30-pin LVDS (2 channel, 8-bit) |
| Power Supply | 5.0V (Typ.) |
| Operating Temperature | 0 ~ 50°C |
| Storage Temperature | -20 ~ 60°C |
| Recommended Applications | Industrial displays, outdoor kiosks, control terminals |
