| Item | Description |
|---|---|
| Model Name | RS185-MH00XT01BK |
| Screen Size | 18.5” |
| Display Area (mm) | 408.96(H) × 230.04(V) |
| Brightness | 3000 cd/m² |
| Resolution | 1920 × 1080 |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 3000:1 |
| Pixel Pitch (mm) | 0.071(H) × 0.213(V) |
| Viewing Angle | 178°(H), 178°(V) |
| Color Saturation (NTSC) | 73% |
| Display Colors | 16.7M |
| Response Time (Typ.) | 14 ms (Tr/Td) |
| Input Interface | HDMI × 1, VGA × 1, AUDIO IN × 1, HDMI × 1, DVI × 1, DC IN × 1, Light Sensor IN × 1 |
| OSD Key | 6 Keys |
| Input Power | DC 12V / 7A (5.5 × 2.5) |
| Power Consumption | 65W |
| Radiator System | 60 × 15 × 2 Intelligent Temperature Control |
| Dimensions (mm) | 443 × 264 × 50 |
| Mounting | 300 × 100 mm |
| Weight (Net) | 6 kg |
| Operating Temperature | -20°C ~ 70°C |
| Storage Temperature | -20°C ~ 70°C |

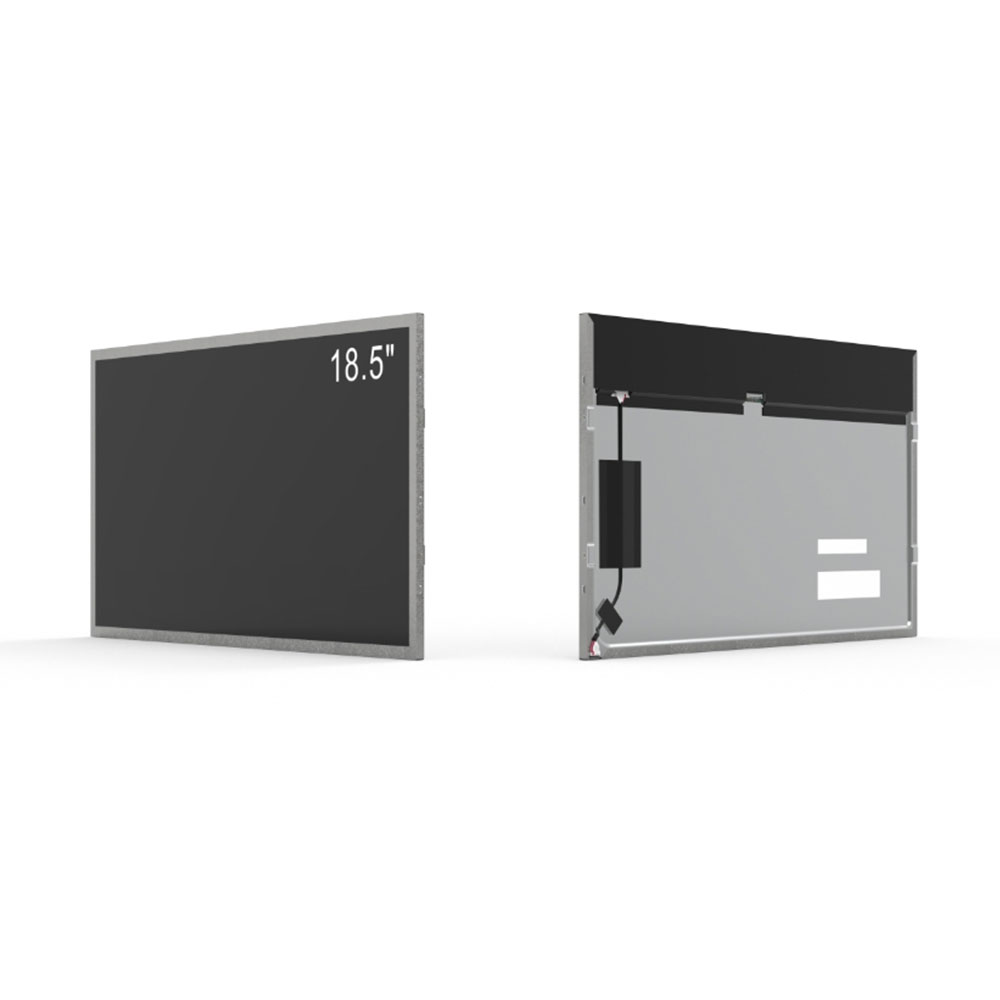

The RisingStar RS185-MH00XT01BK is a 18.5-inch open-frame high-brightness LCD module delivering 3000 nits, purpose-built for outdoor digital displays, kiosk systems, public information terminals, EV charging stations, transportation hubs, and window-facing retail signage.
Its industrial-grade design combines extreme visibility under direct sunlight with long-life performance, low power consumption, and advanced thermal engineering—meeting the stringent requirements of modern European integrators.
With a 178° viewing angle, 3000:1 contrast ratio, and Full HD 1920×1080 resolution, this sunlight-readable display ensures clear and crisp visibility in high ambient lighting, making it a dependable solution for outdoor deployment.
Outdoor digital signage must remain readable under peak sunlight conditions (80,000 – 120,000 lux). Industry guidelines indicate that outdoor screens require 1500–3000 nits minimum brightness, while window-facing installations often demand >2500 nits due to glass reflections.
RisingStar’s 3000 nits direct-lit LED backlight ensures:
This performance surpasses typical consumer-grade displays (300–500 nits), making it suitable for rigorous 24/7 outdoor applications.
The RS185-MH00XT01BK incorporates industrial-grade engineering that ensures long-term reliability:
Designed to withstand thermal stress and prevent overheating in sealed kiosks.
Ensures long-term brightness stability and reduced maintenance cost.
Reduces energy consumption and extends overall system life.
Prevents the common “LCD black spots” caused by solar radiation.
Ideal for kiosk manufacturers, rail operators, charging station builders, and industrial OEMs.
Clear visibility in outdoor forecourts, high temperature durability, vandal-resistant integration.

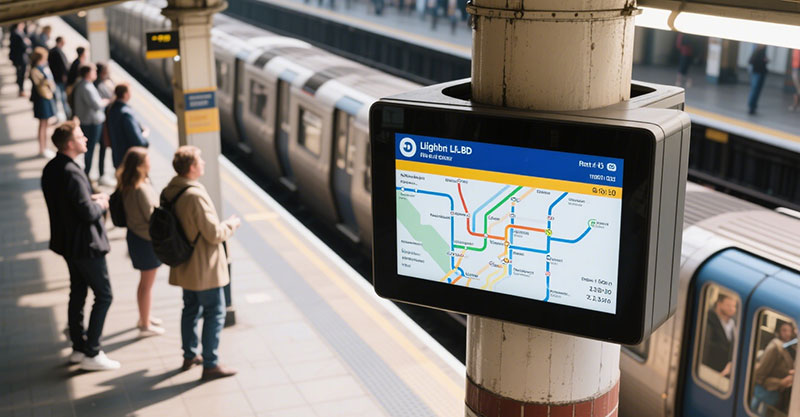

Real-time passenger information under bright outdoor environments.
Perfect for tourism signage, ticketing machines, and government information systems.
Maintains clarity through glass, even in south-facing store windows.
Stable performance in dusty, hot, and exposed locations.
Outdoor dashboards, loading bay displays, and factory information terminals.
Provides consistent sunlight readability and reduces motion blur while maintaining high contrast.
Lowers heat output, extends component life, and ensures stable operation during 24/7 usage.
Delivers sharp text and excellent color clarity for information-heavy content.
Lightweight aluminum construction, slim profile, and durable mounting structure.
Supports integration with a wide range of media players and embedded systems.
Yes. For exposed outdoor locations and glass-enclosed enclosures, 2500–3000 nits is the recommended range to maintain legibility in full sunlight.
No. RisingStar panels use anti-blacking defect LCD technology designed for extreme heat and high solar exposure.
Yes. It is engineered for continuous operation in industrial and commercial environments.
Yes. Open-frame structure allows flexible integration into kiosks, machines, or metal housings.
Yes. Brightness customization from 2500 / 3000 / 4000 / 5000 nits is available upon request.
RisingStar is a global provider of industrial-grade high-brightness LCD solutions serving transportation, energy, retail, and outdoor signage markets.
Our displays undergo extreme temperature testing, aging simulation, and long-term stability verification to meet European quality expectations.
With over 15 years of engineering experience, we support OEMs, kiosk manufacturers, and system integrators in building reliable and scalable outdoor display systems.
