Industrial high brightness LCD panel feature a sunlight readable brightness and wide operation temperature, it can withstand high surface temperatue up to 110 degree without suffering from any blackening defect, and the 1500 nits high brightness make the screen can be read even in a very bright environment.
Brand:

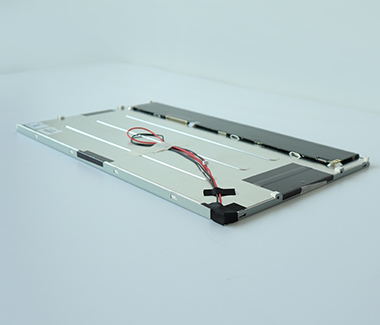

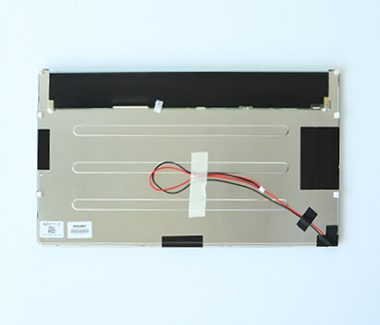

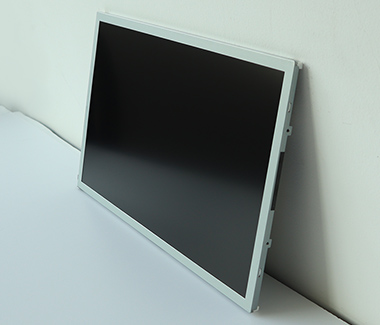

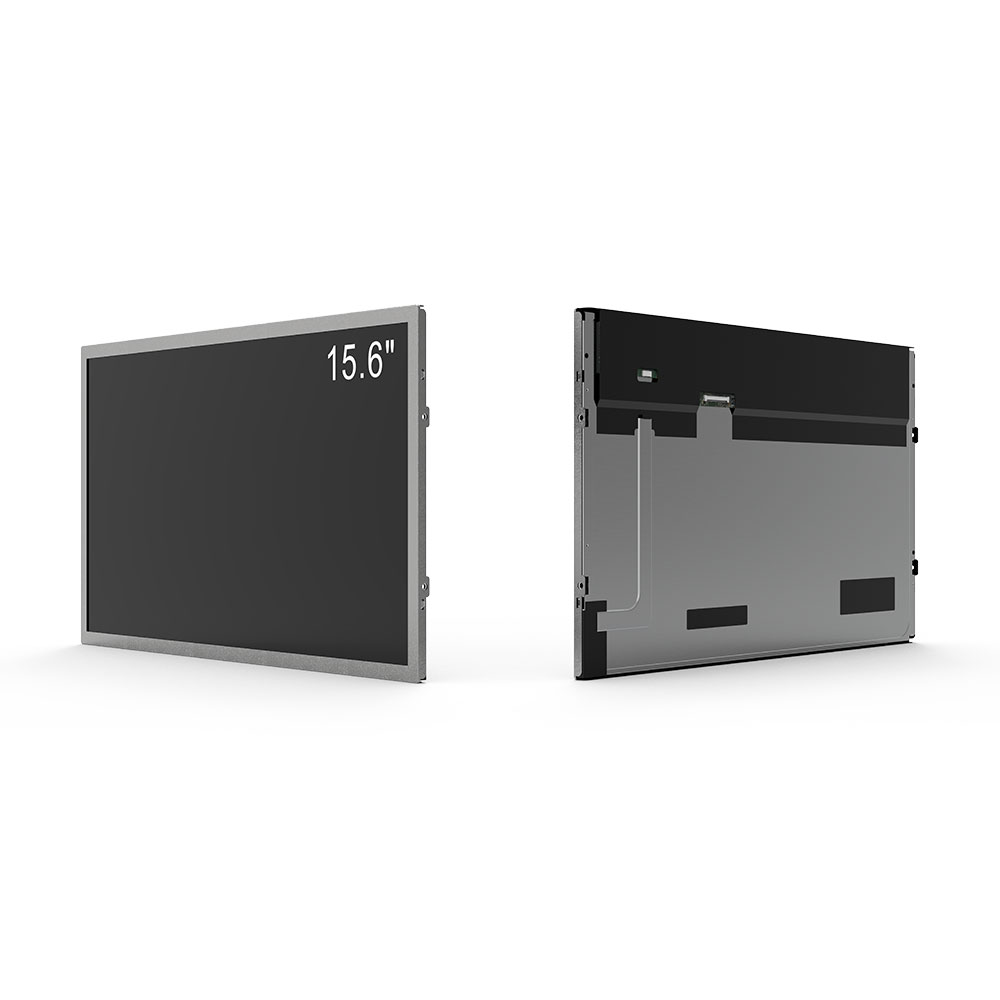

RS156M1LG-GE15 is 15.6 inch diagonal TFT LCD panel, FHD 1920*1080 resolution, with RisingLCD customized edge backlight, it can achieve 1500 nits sunlight readable brightness, with the wide working temperature from 0 ~ 70°C, it recommended to industrial and outdoor device.
15.6 inch high brightness LCD panel Key Features
1.High brightness 1500nits
2. Sunlight Readable
3. LED Backlight
4. Wide Operation Temperature (0 ˚C~70˚C)
5. LCD Blacking Defect Free
6. Low Power Consumption
7. BL MTBF: 50,000 hours
RisingLCD can offer a series of industrial LCD panel from 10.1 inch to 86 inch, high brightness from 700 nits to 5000 nits, this high brightness lcd display can be for embedded, commercial and industrial applications, indoor or outdoor using.
| Screen Diagonal | 15.6 inch |
| Brand | Risingstar |
| Model No | RS156M1LG-GE15 |
| Active Area | 344.16(W)×193.59(H) mm |
| Resolution | 1920(RGB)×1080, FHD, 141PPI |
| Physical Size | 370(W)×217(H)×9.8(D) mm |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| Contrast Ratio : | 800:1 |
| White Luminance ( Center ) | 1500 cd/m2 (Typ.) [cd/m2 ] |
| Optical Response Time | 30 (Typ.)(Tr+Td) ms |
| Nominal Input Voltage | 3.3V (Typ.) |
| Frame Rate | 60Hz |
| Viewing Angle | 80/80/80/65 (Typ.)(CR≥10) |
| Weight [kg] | 0.95kgs |
| Interface Type | 30 pins LVDS (2 ch, 8-bit) |
| Support Color | 16.7M , 76% NTSC |
| Surface Treatment | Matte, Hard coating (3H) |
| RoHS Compliance | RoHS Compliance |
| Temperature Range | 0 ~70 °C |
| Storage (Non-Operating) | -30 ~ 70 °C |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
