Image’s high brightness is a highly desired feature in a situation of strong sunlight conditions. with this feature, the displayed content is fully readable. Displays with High Brightness may be successfully used e.g. in expositions, stands, trains and buses, digital signage or other outdoor applications.

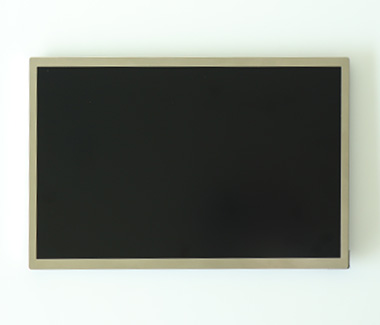

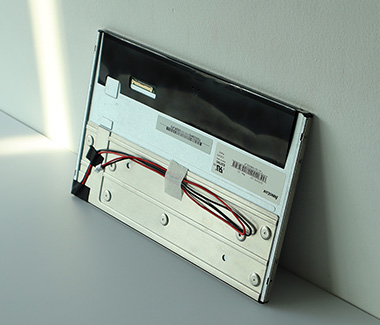

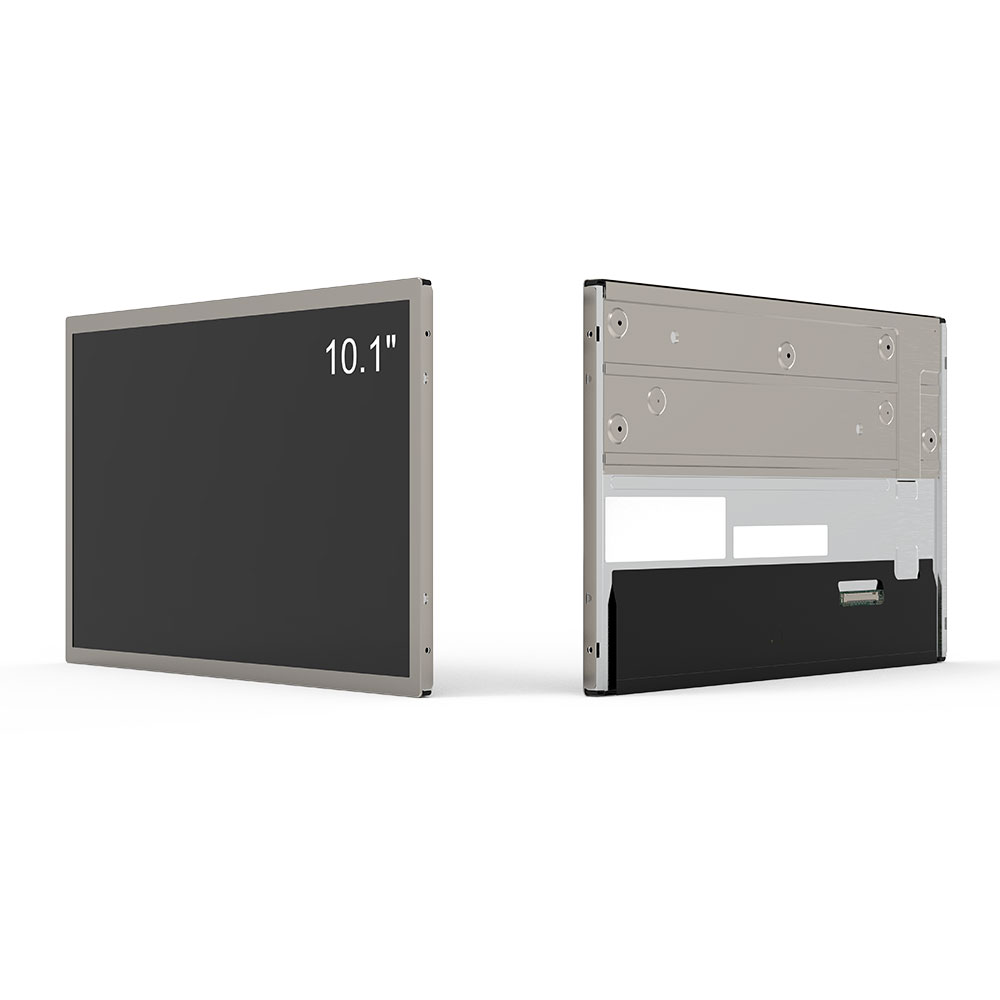

RS101ICE-GE10 is a 10.1 inch diagonal TFT LCD panel, innolux original panel with RisingLCD own designed backlight, 1000 nits high brightness, -20 ~ 70°C operating temperature, life above 50k hours, with LED driver, recommended to be applied to industrial device.
RS101ICE-GE10 main features:
Innolux True Industrial Grade LCD Panel
Long-Life Advanced LED Backlight, over 50,000 Hours Half-Life
1000 nits (cd/m2) sunlight readable Brightness
Wide Operational Temperature Range -20°C to 70°C
Touch Screen Technologies Available (Optional)
RisingLCD offer a series of industrial and rugged LCD displays, they are rigorously tested to ensure compliance with various industry standards and are ideal for use in any high ambient light condition, and and will give you the intensity and brilliance your application requires.
RisingLCD Offers high brightness display according to the application of products, 500nit, 700nit, 1000nits highter, RisingLCD has the unique technology of brightness ajudstment, customers can customized suitable brightnness according to the environment, not only only does our porducts can provide you perfect results or dusplay, but also it helps you save costs.
| Screen Diagonal | 10.1 inch |
| Brand | Risingstar |
| Model No | RS101ICE-GE10 |
| Active Area | 216.96(W)×135.6(H) mm |
| Resolution | 1280(RGB)×800, WXGA, 149PPI |
| Physical Size | 230.7(W)×152.55(H)×7(D) mm |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| Contrast Ratio : | 800:1 |
| White Luminance ( Center ) | 1200 cd/m2 (Typ.) [cd/m2 ] |
| Optical Response Time | 14/11 (Typ.)(Tr/Td) |
| Nominal Input Voltage | 3.3V (Typ.) |
| Frame Rate | 60Hz |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Weight [g] | 360g/375g( Typ.) |
| Interface Type | LVDS (1 ch, 6/8-bit) , 40 pins Connector |
| Support Color | 262K/16.2M , 52% NTSC |
| Surface Treatment | Antiglare, Hard coating (3H) |
| RoHS Compliance | RoHS Compliance |
| Working Temperature Range | -20 ~70 °C |
| Storage (Non-Operating) | -25 ~ 70 °C |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
