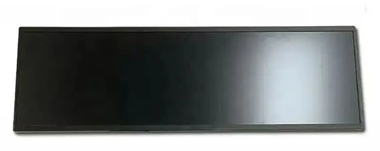

P420IVN01.0 AUO 42 inch hi-tni tft lcd stretched display 1920*480 resolution, 4000:1 contrast ratio, LVDs interface, 89/89/89/89 viewing angle, 1000 nits high brightness, it is with an integral WLED backlight system, With LED Driver, without touch screen.
P420IVN01.0 AUO 42 inch hi-tni tft lcd stretched display 1920*480 resolution, 4000:1 contrast ratio, LVDs interface, 89/89/89/89 viewing angle, 1000 nits high brightness, it is with an integral WLED backlight system, With LED Driver, without touch screen.
The operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , Landscape / Portrait, WLED Backlight, Life ≥ 70K hours. The stretched Bar display is with advanced wide temperature LC (-40-110°C), it features the wide temperature, hi- tni panel. Based on its features, it is ideal to be applied to Digital Signage, Outdoor High Brightness, Stretched Bar LCD etc.
AUO Hi-Tni high brightness LCD Panel list:
P281SVN01.0 700 Adv. Hi-Tni LC (-40~110℃), Photo mask, 70Khrs 24 MP
P236RVN01.0 700 Adv. Hi-Tni LC (-40~110℃), Photo mask, 70Khrs 24 MP
P430QVT01.0 400 1500R C type LCM with Touch 24 MP
P430QVR01.0 500 1500R C type LCM 24 MP P215HAN02.0 1500 AHVA, H-Tni LC even bezel, E-LED, 70Khrs 24 MP
P320HVN04.3 1500 Adv. Hi-Tni LC (-40~110℃), D-LED 24 EOL_Y23/Jun
P320HVN04.4 1500 Adv. Hi-Tni LC (-40~110℃), D-LED, (L) 24 2023/Feb
P320HVN04.5 1500 Adv. Hi-Tni LC (-40~110℃), D-LED, (P) 24 2023/Feb
P430HVN05.1 1500 Adv. Hi-Tni LC (-40~110℃), AG28%, (P) 24 MP
P430HVN05.2 1500 Adv. Hi-Tni LC (-40~110℃), AG28%, (L) 24 2023/Jun
P460HVN04.4 1500 Adv. Hi-Tni LC (-40~110℃), AG28%, (P) 24 MP
P460HVN04.5 1500 Adv. Hi-Tni LC (-40~110℃), AG28%, (L) 24 MP
P320HVN07.0 2500 Adv. Hi-Tni LC (-40~110℃), D-LED 24 P320HVN07.1 2500 Adv. Hi-Tni LC (-40~110℃), D-LED, (L) 24 2023/Feb
P320HVN07.2 2500 Adv. Hi-Tni LC (-40~110℃), D-LED, (P) 24 2023/Feb
P430HVN06.1 2500 Adv. Hi-Tni LC (-40~110℃), AG28% (P) 24 2023/Sep
P460HVN05.0 2500 Adv. Hi-Tni LC (-40~110℃), AG28%, 70Khrs 24 MP
P460HVN05.1 2500 Adv. Hi-Tni LC (-40~110℃), C-POL 24 MP
P460HVN05.2 2500 Adv. Hi-Tni LC (-40~110℃), D-LED, (L) 24 2023/Apr
P550HVN06.4 2500 H-Tni, C-POL, black bezel 24 EOL_Sep/23
P550HVN06.6 2500 H-Tni, AG28%, 24 MP
P550HVN06.8 2500 Adv. Hi-Tni LC (-40~110℃), C-POL 24 2023/Jun
| Screen Diagonal | 42 inch |
| Auo panel no | P420IVN01.0 |
| Model No | RS420NET-GE10 |
| Active Area | 1039.68(W)×259.92(H) mm |
| Pixels | 1920(RGB)×480, 46PPI |
| Physical Size | 1059.48(W)×283.52(H)×56.9(D) mm |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| White Luminance ( Center ) | 1000 cd/m2 (Typ.) [cd/m2 ] |
| Contrast Ratio | 4000:1 (Typ.) |
| Optical Response Time | 8 (Typ.)(G to G) |
| Nominal Input Voltage | 12V (Typ.) |
| Frame Rate | 60Hz |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down |
| Weight [g] | 5.5Kgs |
| Interface Type | LVDS (2 ch, 8/10-bit) , 51 pins Connector |
| Support Color | 16.7M/1.07B , 99% sRGB |
| Surface Treatment | Antiglare (Haze 44%), Hard coating (3H) |
| RoHS Compliance | RoHS Compliance |
| Temperature Range | 0 ~60 °C |
| Storage (Non-Operating) | -20 ~ 60 °C |
