21.5″ Fuel Dispenser Touch Monitor engineered as a high-brightness, sunlight-readable stretch bar display solution. Features: 5000 nits peak brightness, IP65 waterproof, industrial touch options, 50,000-hour lifetime, multi-panel integration for fuel pumps, outdoor kiosks, and retail signage.
A stretch bar display (also called stretched bar display or bar-type display) is a specialized form-factor LCD designed as a long, narrow screen for concise, high-impact information delivery in constrained spaces. In industrial environments such as fuel dispensers, outdoor kiosks, and retail signage, stretch bar displays are favored for their ability to:
Present pricing, brand promotions, and alerts in a minimal footprint.
Maintain legibility under bright sunlight conditions.
Enable multi-panel or continuous horizontal/vertical information streams.
Support interactive touch functionality for POS, payment, or loyalty programs.
The 21.5″ Fuel Dispenser Touch Monitor from RisingStar can function as a standalone stretch bar display or be integrated into multi-panel arrays, offering industrial-grade durability and high brightness suitable for forecourt and outdoor applications.
| Feature | Specification / Advantage |
|---|---|
| Sunlight Readability | 1000 / 2500 / 3000 / 4000 / 5000 nits selectable brightness; high contrast, anti-reflective coating ensures clarity under direct sunlight. |
| Panel Type | Industrial-grade IPS LCD with wide viewing angles (178° horizontal/vertical), ensures consistent readability from any angle. |
| Touch Options | PCAP 10-point touch or resistive touch; glove-compatible and stylus-ready. |
| Durability | IP65 / IP66 front panel waterproof and dustproof; corrosion-resistant aluminum chassis; operating temperature −30°C to +70°C. |
| Lifetime & Reliability | >50,000 hours LED backlight lifetime; low thermal output; low-power design prevents overheating in enclosed environments. |
| Mounting Flexibility | Thin bezel, customizable brackets for multi-panel or stretched bar setups; supports flush or angled installation. |

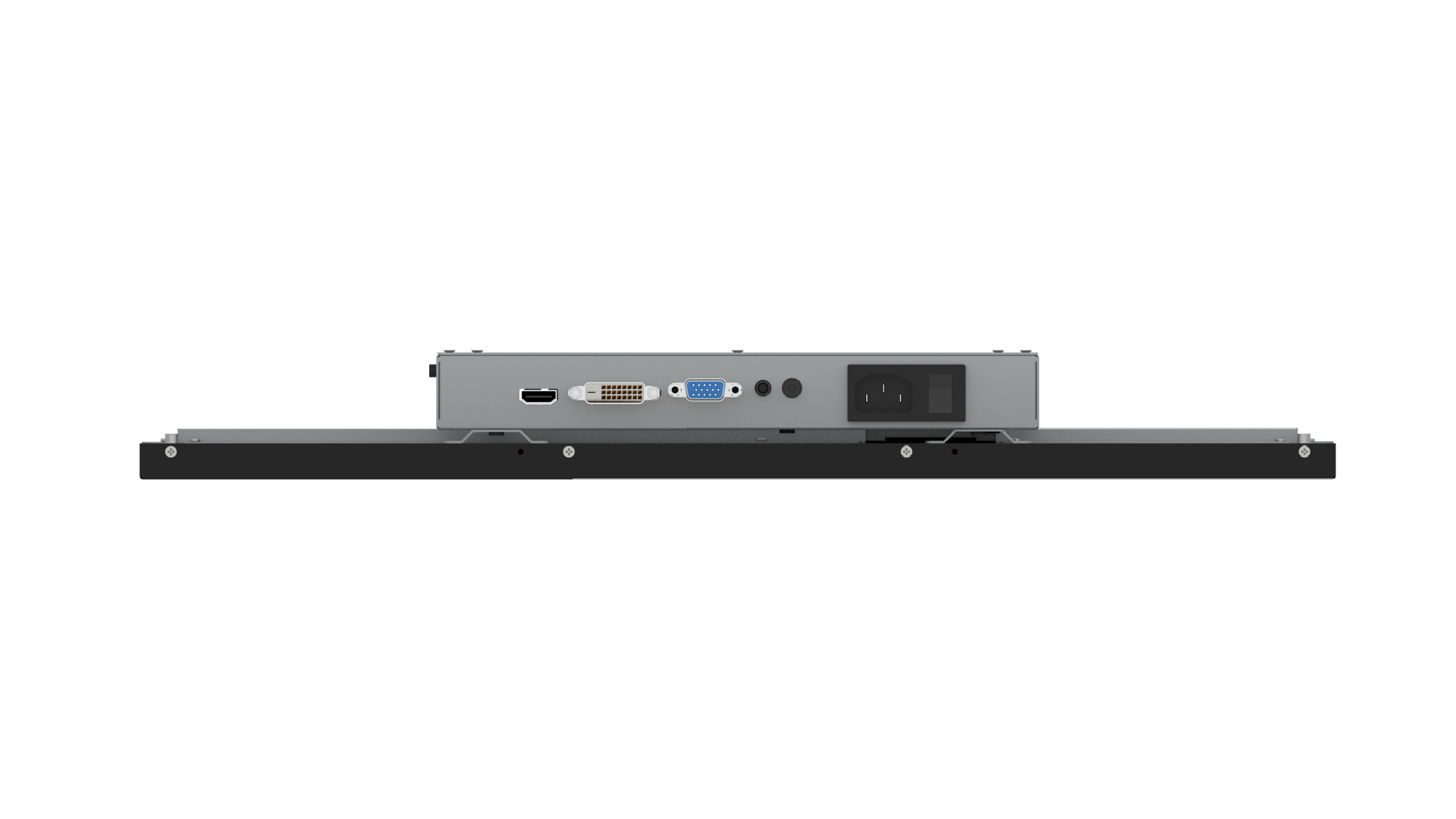

| Interface Options | HDMI, DisplayPort, VGA, USB (touch), RS232/TTL, optional CAN/POE/4G for industrial integration. |
| Compliance & Certifications | CE, FCC, RoHS; optional ATEX / IECEx components for hazardous zones. |
| Parameter | Specification |
|---|---|
| Panel Size | 21.5″ diagonal |
| Aspect Ratio | 16:9 (can be integrated into custom stretched layouts) |
| Resolution | 1920 × 1080 Full HD |
| Brightness | 1000 / 2500 / 3000 / 4000 / 5000 nits (customizable) |
| Contrast Ratio | 1200:1 (typical) |
| Backlight | Direct-LED with >50,000 hours lifetime |
| Viewing Angle | 178° H / 178° V |
| Touch | PCAP 10-point / Resistive (glove-compatible) |
| Enclosure | Aluminum frame, IP65/IP66 rated front, vented rear |
| Operating Temperature | −30°C to +70°C |
| Storage Temperature | −40°C to +85°C |
| Power Supply | 12V / 24V DC selectable, low-power mode supported |
| Connectivity | HDMI, DP, USB (touch), RS232/TTL, optional CAN/POE/4G |
| Weight | 3.8 kg |
| Dimensions (WxHxD) | 530 mm × 120 mm × 35 mm (nominal) |
| Certifications | CE, FCC, RoHS; optional ATEX/IECEx |
Note: Multi-panel assemblies for extended stretch bar displays are supported; custom aspect ratios can be ordered on request.

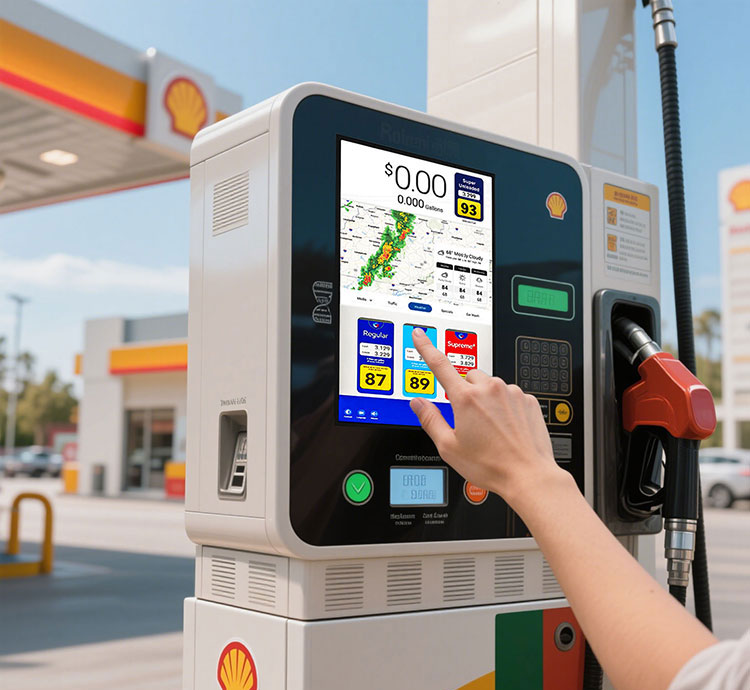

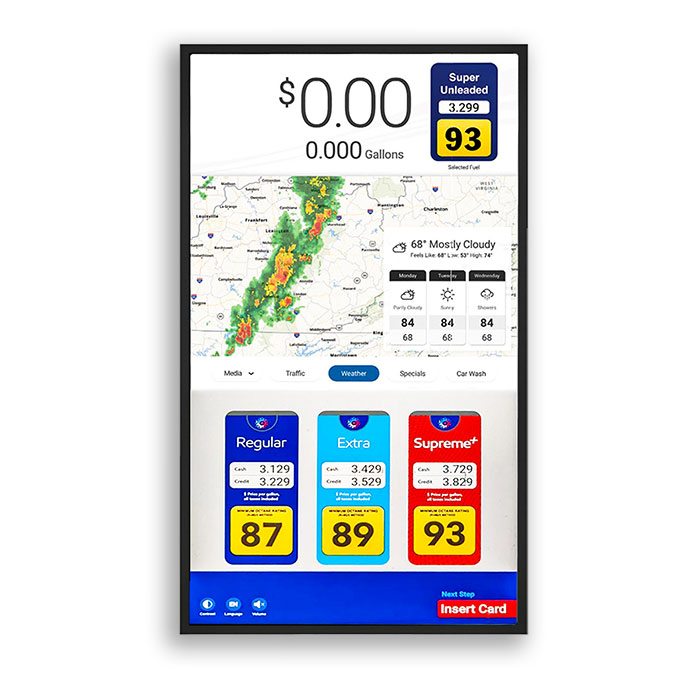

Fuel Dispenser Fascia: Display fuel prices, brand logos, promotions, loyalty programs; thin bar form preserves access to controls.

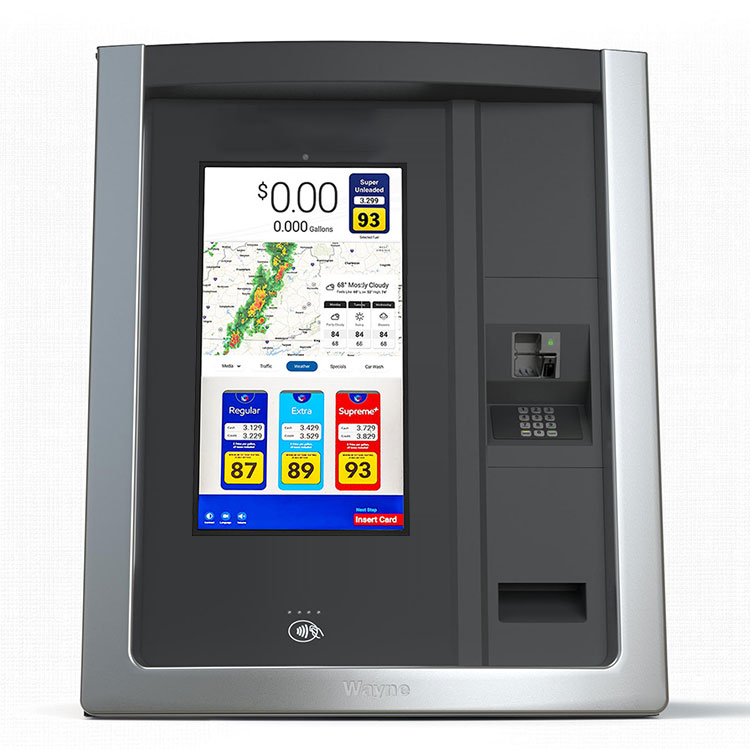

Pay-at-Pump Kiosks: Touch-enabled screens for payments, receipts, and interactive offers.
Forecourt Signage: High-brightness band displays for safety messages, promotions, or real-time alerts.
Retail / Convenience Store Bars: Above doorways or windows, stretched bar displays provide continuous promotional messaging.
Case Study (Illustrative): A European forecourt deployed three 21.5″ modules as a horizontal stretch bar above pump islands. Using 3000 nits PCAP panels with remote content management, promotional uptake increased by 18%, and manual price updates were reduced by 90%.
Thermal Management: Use low-power LED backlight modes; consider passive or forced ventilation in enclosed pump compartments.
Sunlight Mitigation: Anti-glare coating; 10°–15° tilt for direct sunlight. For unshaded sites, ≥3000 nits recommended.
Sealing & Cable Management: IP-rated cable glands; connectors positioned to minimize water ingress.
EMC Compliance: Shielded cables and ferrite beads recommended to prevent interference with pump controllers.
Mounting Alignment: For multi-panel bars, use alignment dowels and calibration software to ensure seamless visual continuity.
Software Control: Use industrial-grade signage CMS with remote monitoring, scheduling, and fallback content.
Brightness Stability: Active dimming preserves life while maintaining outdoor readability.
Moisture Protection: Conformal-coated PCBs, desiccant packs, and sealed front panels prevent condensation.
Touch Durability: Laminated cover glass protects PCAP sensors from vandalism; resistive touch options for glove environments.
Lifecycle Management: Modular, field-replaceable components reduce downtime in mission-critical installations.
Q1: What brightness is recommended for outdoor pumps?
A: Canopy-covered sites: 1000–2500 nits; direct sunlight: ≥3000 nits.
Q2: Can 21.5″ panels form a stretched bar?
A: Yes. Multi-panel configurations or custom stretched modules are supported.
Q3: How to prevent condensation inside displays?
A: IP-rated seals, desiccants, and conformal coating.
Q4: Is PCAP touch reliable in cold climates?
A: Yes. Glove-compatible firmware and low-temperature PCAP variants are available.
Q5: What mounting options are available for retrofits?
A: Flush brackets, angled adapters, and custom fascia kits.
Rising Star is Global Trusted Manufacturer of Fuel Dispenser Touchscreens
21.5 Inch Fuel Dispenser Touch Monitor, ultra-bright 1000-nit outdoor display cuts through sunlight to clearly show fuel prices and ads. Its rugged IP65-rated design handles dust, rain, and extreme temperatures (-20°C to 70°C) while saving energy. Easy VESA-mount installation makes it ideal for gas stations, EV chargers, and car washes. Includes 1-year warranty with bulk discounts available.
Clear Visibility in Sunlight, Reliable Performance in Harsh Conditions—Outdoor Display Designed for Gas Stations
High Brightness, Anti-Glare—Readable Even Under Direct Sunlight
1000-nit ultra-high brightness ensures clear visibility of fuel prices, ads, and promotions, making them instantly noticeable to drivers.
Dustproof & Waterproof, Built for Extreme Weather
IP65-rated protection, sealed against dust, and operates reliably from -20°C to 70°C—durable in rain, wind, and harsh conditions.
Ultra-Low Power Consumption, Saves Energy & Costs
Energy-efficient for 24/7 operation, reducing electricity expenses for long-term savings.
Easy Installation, Wide Compatibility
Slim design with universal VESA mounts, fits most fuel dispensers and industrial systems—ready to use right out of the box.
Trusted by Gas Stations Worldwide
Proven in high-traffic fueling networks, built for reliability and long-term performance.
Worry-Free Support & Bulk Discounts
1-year warranty + dedicated technical support for quick issue resolution. Discounts available for bulk orders.
Ideal For:
Gas Stations—Real-time fuel prices, promotions, safety messages
EV Charging Hubs & Car Washes—Durable outdoor information displays
Specially designed to provide a perfect solution for Fuel Dispenser Touch Monitor
A+ grade wide temperature LCD panel
Normal operation in an environment of 24H-20 ℃ to 70 ℃.
Designed for gas station environments, our display features highly responsive capacitive touch technology with millisecond-level accuracy. It seamlessly supports glove and wet-hand operation, ensuring reliable performance in harsh conditions like fuel spills, temperature shifts, and high-frequency use.

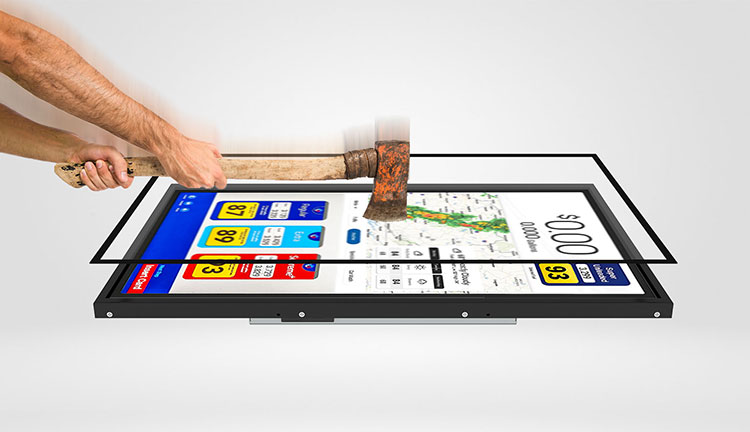

IK10 tempered glass with optical bonding provides the strongest protection
Having multiple national patent certificates
Provide customized LCD screen sizes for various fuel dispensers
10.1 inches to 110 inches, please contact info@risinglcd.com
| Type | Size | Brightness |
|---|---|---|
| LCD module | 10" to 120" | 500 to 5000 nits |
| outdoor monitor | 32" to 75" | 500 to 5000 nits |
| waterproof monitor | 32" to 75" | 500 to 5000 nits |
| bus stop display | 21.5" to 86" | 500 to 5000 nits |
| window display | 43" to 75" | 500 to 3000 nits |
| double-sided display | 10" to 88" | 500 to 3000 nits |
| stretch display | 32" to 75" | 500 to 5000 nits |
| outdoor TV | 43" to 86" | 500 to 3000 nits |
| terrace TV | 10.1" to 86" | 500 to 3000 nits |
| touch monitor | 55" to 86" | 500 to 2500 nits |
| interactive screen | 43" to 86" | 500 to 2000 nits |
| battery Mobile monitors | 43" | 500 to 2000 nits |
| circular monitors | 23.6" | 500 to 3000 nits |
| mirror display | 21.5" to 65" | 500 to 1500 nits |
| Screen Diagonal | 21.5 inch |
| Brand | RisingStar |
| Model No | RS215ENT-GE10-OP |
| Active Area | 476.64(W)×268.11(H) mm |
| Resolution | 1920(RGB)×1080, FHD, 102PPI |
| Physical Size | 495.6(W)×292.2(H)×51.8(D) mm |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| Contrast Ratio : | 3000:1 |
| White Luminance ( Center ) | 1000 cd/m2 (Typ.) [cd/m2 ] |
| Optical Response Time | 13/5 (Typ.)(Tr/Td) ms |
| Nominal Input Voltage | 5.0V (Typ.) |
| Frame Rate | 60Hz |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Weight [kg] | 1.67kgs |
| Interface Type | 30 pins LVDS (2 ch, 8-bit) |
| Support Color | 16.7M , 72% sRGB |
| Surface Treatment | Matte, Hard coating (3H) |
| RoHS Compliance | RoHS Compliance |
| Temperature Range | -20 ~70 °C |
| Storage (Non-Operating) | -30 ~ 80 °C |
