55 Inch High Brightness sunlight readable LCD Display

55 Inch High Brightness sunlight readable LCD Display

RS550HNX04D05: 55" 2500 nits big-screen panel. 1920x1080. Designed for window-facing displays and advertising displays.

OEM / ODM Manufacturer

Factory Direct

Order & Lead Time

Sample Order 1 Unit MOQ
Bulk Order 10+ Units Tiered Discounts

Need 50+ units? for framework agreements.

Global Shipping Options

Samples ship in ~10 working days; Bulk orders in 15-25 working days.

  • Express: DHL/FedEx door-to-door delivery (5-7 days)
  • Sea Freight: Cost-optimized bulk shipping (30-45 days)
  • Rush Orders: Available upon request for urgent projects

1-3 Year Standard Warranty

3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.

All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

Get Started

RS550HNX04D05 is a 55 inch outdoor digital signage from Risingstar, it actually the "plus version" of the classic 55-inch window facing display RS550MNX01D01, and version 2.0 for the first self fanless dissipition display RS550HNX02D05, instead the "radiate type" crave with typical radiator bar, same self-dissipition but lower cost.

Risingstar high brightness outdoor LCD display

Risingstar monitors always has far higher brightness than most of our competitors, for the specific 55-inches we can reached 4000 nits even much higher, more information please searching on our website:

Size (inch)

32

43

55

55

65

Model number

RS320HNX02D05

RS430HNX04D05

RS550HNX04D05

/

/

Brightness (cd/m2)

1500

1500

2500

2000

3000

Resolution (pixels)

1920*1080

1920*1080

1920*1080

/3840*2160

1920*1080

/3840*2160

1920*1080

/3840*2160

Power (Watt)

80

160

180240300

Operating temperature

0 ~ 50℃

-20 ~ 50 ℃

0 ~ 50℃

0 ~ 50℃

0 ~ 50℃

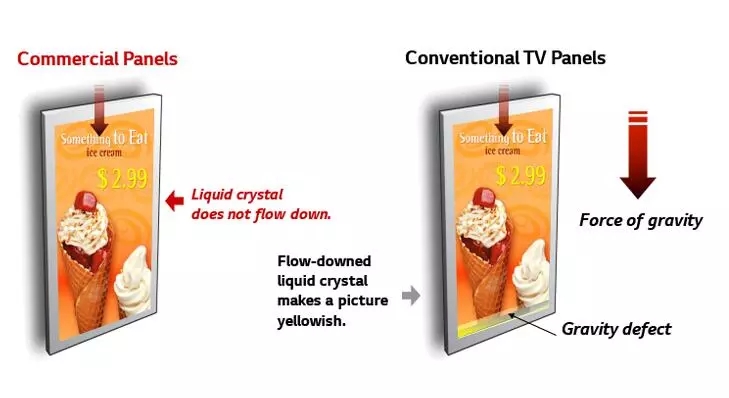

Top grade LCD panel: Risingstar has ability making our own design LCD panel, and we purchase A and A+ level Open-cell from LG, BOE, AUO and other famous liquid crystal glasses maker directly, this is the proof to make the high quality displays for each of our customers.

BOE, LG, AUO

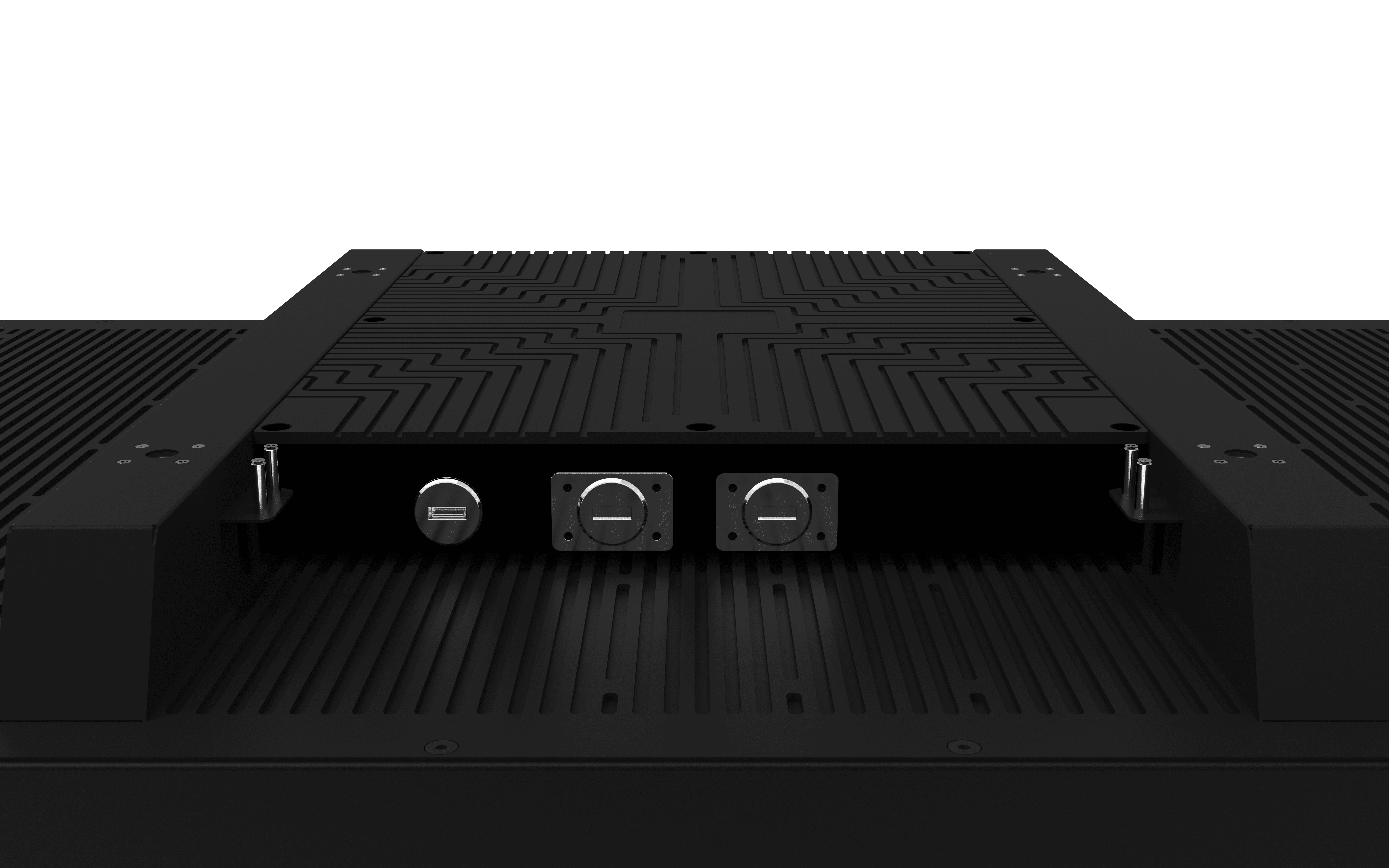

Rugged and unique housing: This display has unqiue housing, you can see the crave on the display is as sort of thermal dissipition design, use typical radiator bar for the simple style and lower th cost, this allowed the display dissiption heat without fan or A/C, to save the power consumption; it can be fully muted if you need mount it in some quiet place such like library, this also the reason why this outdoor display sometimes will mounted indoor by our customers.

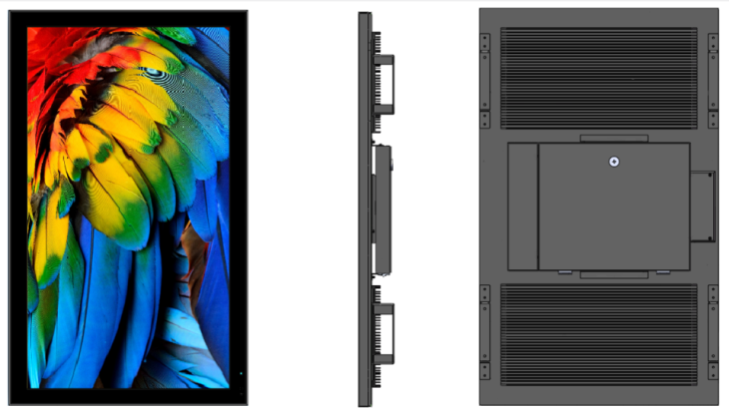

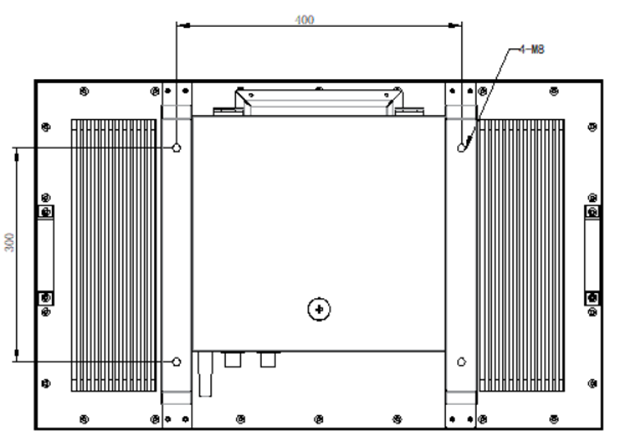

drawing of the 55-inch outdoor fanless LCD display

High adaptability electronic: Risingstar has customers from all over the world, EU, US, Asia...using the right plug and adapt different voltage is the basic issue we should figure out for our customers, you do not need worry about this; the possibly OS for the display, we can offer both PC and Android to make you using easier; also the interfaces, HDMI/USB/VGA/DVI/DP/Type-C/RJ45 by your choice, our enegineer will help you found the most suitable motherboard.

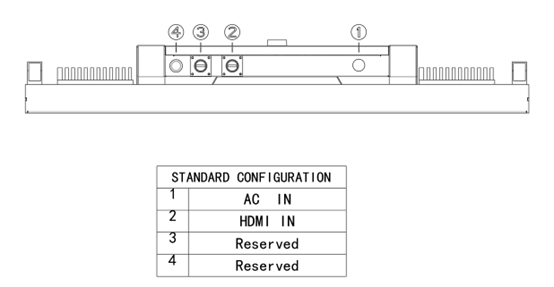

interfaces

Ultra wide viewing angle: Most of the Risingstar display is IPS screen, which has extremely high viewing angle could reach 178° for both horizontal and vertical direction.

Multiple mounting type: for each display our engineer will reserved the mounting hole by your request, you can mounting it on the wall, ceiling, floor standing, hanging...whatever your choice, and our default mounting is VESA.

Risingstar all products and mounting types


Window facing display series:

RS430LNX01P01, lower brightness but full waterproof indoor display, special product for low light environment such like Museum/Aquarium...

RS430HNX02D05, much thincker and heavier type, but lower consumption and unique outer shell, all these for "Mute"...

RS430MNX01D01, classic design, the standard type of 43-inch window facing display

Panel type

55inch wrgb high brightness TFT LCD HD display

Resolution

1920*1080

System

Android 7.0

Aspect Ratio

16:9(W:H)

RAM

2G + 16 G storage

Wifi

Yes

Speaker

2*8Ω 2W HiFi

Response time

5ms

Brightness

2500cd/m2

Contrast Ratio

5000:1

Color

16.7M

Display Area

1209.6x680.4

Product Size

1232.34x703.82x85.29 mm

Install item

Hanging or floor stand

Viewing angle

178°(H) / 178°(V)

Lifetime(typ)/(min)

60000 hours

Interface

1*HDMI out+1*RJ45+1*USB2.0+1*USB2.0_OTG+1*TF card+1*SD card+1*Type-C+1*Audio in+1*AC power

Power adapter

Voltage:AC 100-240V,50-60HZ

Service

OEM and ODM . product certification : CE RoHS FCC and 13 month quality warranty

RS550HNX04D05 55 inch high brightness display 55 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Protection Rating Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Surface Finish Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Format Architecture Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

03 / Interface & I/O

Industrial signal and power regulation.

Connectors Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Power Regulation Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Sensor Suite Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology.
Optical Bonding Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio.
Advanced Coating Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

04 / Embedded & Data

Software architecture and data sync.

Operating Systems Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
Communication High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
