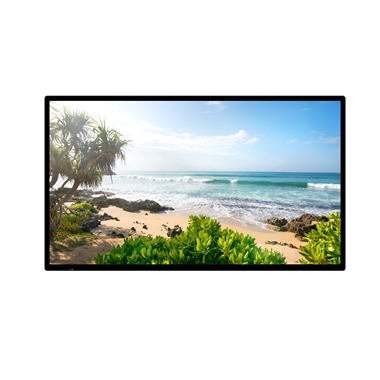

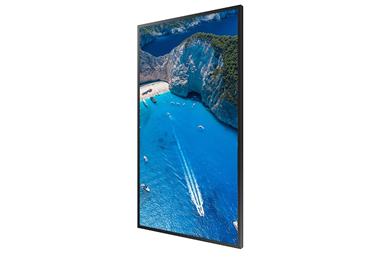

Industrial 75inch UHD high brightness LCD TFT panel with 3500nits brightness

Industrial 75inch UHD high brightness LCD TFT panel with 3500nits brightness

RS750ETN-GD35: 75" 3500 nits XXL display. 3840x2160. Built for large-scale stadium screens and smart city infrastructure.

OEM / ODM Manufacturer

Factory Direct

Order & Lead Time

Sample Order 1 Unit MOQ
Bulk Order 10+ Units Tiered Discounts

Need 50+ units? for framework agreements.

Global Shipping Options

Samples ship in ~10 working days; Bulk orders in 15-25 working days.

  • Express: DHL/FedEx door-to-door delivery (5-7 days)
  • Sea Freight: Cost-optimized bulk shipping (30-45 days)
  • Rush Orders: Available upon request for urgent projects

1-3 Year Standard Warranty

3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.

All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

Get Started

RS750ETN-GD35 is a Wide Temperature，sunlight readable 3500 nits high brightness ，Utra high resolution 3840*2160, industrial TFT LCD panel, WLED Backlight，Life ≥ 50K hours，With LED Driver，with V-by-One interface.

75 inch sunlight readable Square TFT LCD panel, 3500nits, LED Backlight 3840*2160

High Brightness 3500 nits

Sunlight Readable screen

Industrial panel, Wide Operating Temperature, -30 ~80 °C

With LED driver

BL MTBF: 50,000 hours

A good sunlight readable display is typically considered to be an LCD with 1000 nits brightness, RisingLCD RS750ETN-GD35 can achieve 3500 nits high brightness, that screen can be clearly read even in the direct sunlight, RS750ETN-GD35 is a 75 inch high brightness TFT LCD panel screen that with led driver, and built in with controller IC, it supports v-by-one interface, high brightness 3,500 nits, industrial screen, it is suitable for outdoor application, gaming monitor.

Screen Diagonal75 inch
Model NoRS750ETN-GD35
Active Area 1649.66(W)×927.936(H) mm
Pixels3840(RGB)×2160, UHD, 59PPI

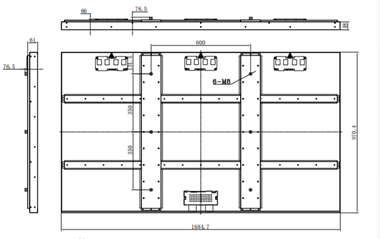

Physical Size1684.7(W)×970.1(H)×61(D) mm
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode a-Si TFT-LCD, LCM
White Luminance ( Center )3500 cd/m2 (Typ.)  [cd/m2 ]
Contrast Ratio 1200:1 (Typ.)
Optical Response Time 8 (Typ.)(G to G) ms
Nominal Input Voltage 12V (Typ.)
Frame Rate60Hz
Viewing Angle85/85/80/80 (Typ.)(CR≥10)
Weight [g] 28Kgs
Interface Type51 pins   V-by-One 8 lane Connector
Support Color 16.7M,  73% NTSC
Surface Treatment Hard coating (2H),
RoHS Compliance RoHS Compliance
Operating Temperature-20 ~ 70 °C
Storage Temperature-30 ~ 80 °C
RS750ETN-GD35 75 inch high brightness display 75 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Protection Rating Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Surface Finish Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Format Architecture Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

03 / Interface & I/O

Industrial signal and power regulation.

Connectors Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Power Regulation Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Sensor Suite Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology.
Optical Bonding Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio.
Advanced Coating Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

04 / Embedded & Data

Software architecture and data sync.

Operating Systems Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
Communication High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
