    AUO hi-tni (110°c) LCD panel P370IVN02.2 with 1000 nits high brightness
    • AUO hi-tni (110°c) LCD panel P370IVN02.2 with 1000 nits high brightness
    • AUO hi-tni (110°c) LCD panel P370IVN02.2 with 1000 nits high brightness

    AUO hi-tni (110°c) LCD panel P370IVN02.2 with 1000 nits high brightness

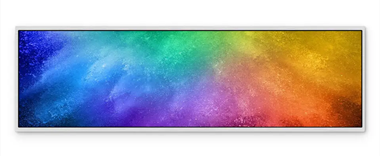

    37 inch hi-tni tft lcd display with Auo original stretched bar screen P370IVN02.2 ,1920*540 resolution, 4000:1 contrast ratio, LVDs interface, 89/89/89/89viewing angle, customized 1000 nits high brightness, it is with an integral WLED backlight system.


    Brand:

    Risingstar

    Model name:

    RS370NET-GE10

    Screen size:

    37"

    Screen type:

    Stretched LCD

    Resolution:

    1920(RGB)×540

    Brightness (cd/m²):

    1000


    *Name:
    *Country:
    *E-mail:
    Phone:
    *Content:

    RS370NET-GE10 is a 37 inch hi-tni tft lcd display with Auo original stretched bar screen P370IVN02.2 , 1920*540 resolution, 4000:1 contrast ratio, LVDs interface, 89/89/89/89 viewing angle, customized 1000 nits high brightness, it is with an integral WLED backlight system, With LED Driver, without touch screen.

    it features an operating temperature range of -20 ~ 60°C , a storage temperature range of -20 ~ 60°C , Landscape / Portrait, WLED Backlight, Life ≥ 70K hours, stretched Bar Display, Liquid crystal: Advanced wide temperature LC (-40-110°C), hi- tni panel. Based on its features, it is ideal to be applied to Digital Signage, Outdoor High Brightness, Stretched Bar LCD etc.



    A hi-Tni panel is a type of display panel that is specifically designed to prevent blackening when the display operates under elevated temperature conditions. This is particularly important for displays that are used outdoors, where there are high ambient temperatures and a high bright backlight, which can cause the display to overheat and become damaged. The term "TNI" refers to the "Twisted Nematic" technology that is used in the display panel, which helps to regulate the temperature and prevent blackening by controlling the amount of light that passes through the panel. Overall, the high Tni panel is an essential component for displays that are used in harsh environmental conditions, as it ensures that the display remains functional and visible even under extreme temperature conditions.

    P370ivn02


    AUO 37 inch  hi-tni stretched LCD bar,

    P370IVN02.2 700 Adv. Hi-Tni LC (-40~110℃), AG28%, 70Khrs 24 MP

    P370IVN03.1 1500 Adv. Hi-Tni LC (-40~110℃), AG28%, 70Khrs 24 MP

    P370IVN04.1 2500 Adv. Hi-Tni LC (-40~110℃), AG28% 24 MP




    Hot Tags: AUO hi-tni (110°c) LCD panel P370IVN02.2 with 1000 nits high brightness, manufacturers, suppliers, factory, Customized
    Screen Diagonal37 inch
    Auo panel noP370IVN02.2
    Model NoRS370NET-GE10
    Active Area 904.32(W)×254.34(H) mm
    Pixels1920(RGB)×540, 53PPI
    Physical Size923.3(W)×277.1(H)×30.5(D) mm
    Pixel Arrangement R.G.B. Vertical Stripe
    Display Mode a-Si TFT-LCD, LCM
    White Luminance ( Center )1000 cd/m2 (Typ.)  [cd/m2 ]
    Contrast Ratio 4000:1 (Typ.)
    Optical Response Time8 (Typ.)(G to G)
    Nominal Input Voltage 12V (Typ.)
    Frame Rate60Hz
    Viewing Angle89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down
    Weight [g] 4.91Kgs
    Interface TypeLVDS (2 ch, 10-bit) , 51 pins Connector
    Support Color 1.07M   72% NTSC
    Surface Treatment Antiglare (Haze 28%), Hard coating (3H)
    RoHS Compliance RoHS Compliance
    Temperature Range 0 ~60 °C
    Storage (Non-Operating) -20 ~ 60 °C
