Specifications
| Panel Features | Input Ports | ||
| Screen Size | 15" | ||
| USB OTG | 1 | ||
| Active Display Area | 304.13(H) x 228.1 (V) | ||
| USB | 1 | ||
| Native Resolution | 1024(RGB)×768 | ||
| TF | 1 | ||
| Brightness (Type) | 1000 Nits | ||
| RJ45 | 1 | ||
| Contrast Ratio (Type) | 1000:1 | ||
| HDMI out | 1 | ||
| Viewing Angle | 178(H)/178(V) | Audio Feature | |
| Display Color | 8 bit/16.7M | ||
| Speaker Power Output | yes | ||
| Frame Rate | 60Hz | ||
| DC IN | 12V 1.2A | ||
| Backlight | LED | ||
| Power consumption( Watt) | 14.4W(Max) | ||
| Life Time | >up to 50,000 hoursrs | Mechanical Design | |
| Touch | Capacitive Touch | ||
| Chassis Material | 金属 | ||
| Functions | Chassis Colors | 黑色/Black | |
| OS | Andriod 7.1.2 | ||
| Product Size | 378*297*60.8mm | ||
| Motherboard model | RK3288 | ||
| Packing Carton Dimension(W×D×H) | 390*480*130mm | ||
| CPU | Cortex-A17 | ||
| Net Weight | 3.3(KG) | ||
| Main frequency | 1.8 GHz | ||
| Gross Weight | 4.0(KG) | ||
| RAM | 2GByte | Accessory | |
| Flash | 16GByte | ||
| Remote Control | 1 | ||
| Networking support | Built-in WiFi | ||
| Adapter | 1 | ||
| Bluetooth | BT4.2 | ||
| Wall bracket | 1 | ||
| Picture format | JPG、JPEG、BMP、GIF、PNG, etc | ||
| OTG cable | 1 | ||
| Audio | MP4、WAV、APE、FLAC、AAC etc. | ||
| Video format | Support rich video format: etc.H.265,H.264, VP8, MAV, WMV, AVS, H.263, MPEG4 etc. | ||
RS150ENT-N10 is a 15-inch LCD display with 1,000 nits brightness, 1024×768 resolution and 1000:1 contrast ratio. Its operating temperature range is -20 °C to 70 °C.

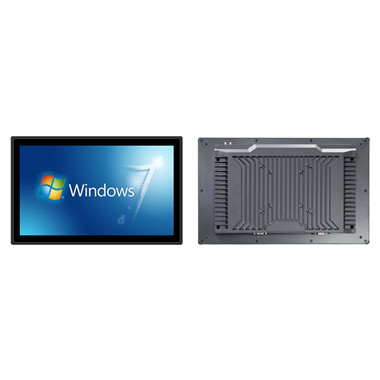

15 inch Industrial touch LCD Display with 1000 nits Brightnesss
RisingStar RS150ENT-N10 is a 15 inch industrial touch display, it makes smart touch more stable and simpler. military-grade quality, more stable operation, suitable for applications in various harsh environments

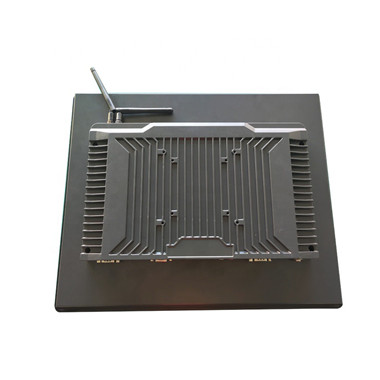

Fully enclosed machine protection, 24-hour work, powerful performance, stable operation, support for various installations, Fish scale heat sink, so that the heat can be dissipated faster.

Good compatibility, can be customized, or choose the system, Windows or Linux, Strong performance, 24/7 uninterrupted and stable operation.

Power management chip is used to meet industrial-grade performance requirements, with 24-hour continuous and stable operation capability.

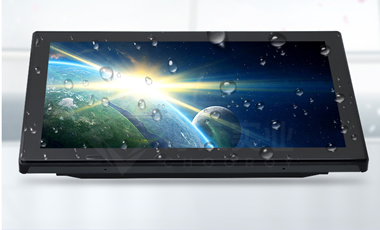

Industrial grade IP65 dustproof and waterproof, pure flat panel IP65 protection grade design, effectively preventing dust and water droplets from invading the inside of the machine

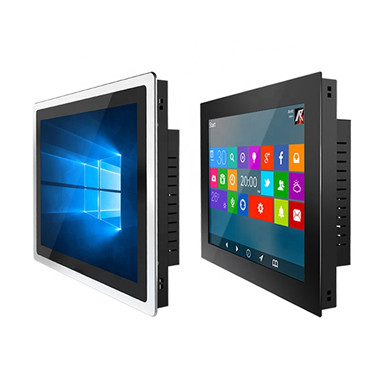

Various installation to meet your different demands.

Product FAQs
How bright is the RS150ENT-N10?
It is rated at 1,000 nits (cd/m²) brightness.
What are the main display specifications?
It uses a 15-inch panel, 1024×768 resolution, 1000:1 contrast ratio.
What is the operating temperature range?
The operating temperature range is -20 °C to 70 °C.
Is this product available for OEM or ODM customization?
Yes. RisingStar is an OEM/ODM manufacturer and accepts customization requirements for volume orders; contact the sales team with your target specification.
What is the viewing angle?
The viewing angle is 178(H)/178(V).
Is the RS150ENT-N10 suitable for outdoor or high-ambient-light use?
Yes. Rated at 1,000 nits, it is a high-brightness panel built for sunlight-readable and outdoor applications.
