Specifications

Panel Features
Screen Size55"
Active Display Area1211.40H) x 684.80(V)mm
Pixel Pitch (mm)0.63(H) x 0.63 (V)
Native Resolution1920*1080 / 3840x2160 RGB
Aspect Ratio16:09
Brightness (Type)500 Nits
Contrast Ratio (Type)1400:1
Viewing Angle178(H)/178(V)
Response Time (Gray to Gray)8ms
Display Color8 bit/16.7M
Frame Rate60Hz
BacklightLED
Life Time>30000 Hrs


Functions
OS systemAndroid7.1、9.0
Motherboard modelRK3288
CPUQuadCore Cortex-A17+QuadCore GPU Mail-T764
Main frequency1.8 GHz
RAMDDR 2GB( 4G Option)
FlashEMMC 8G (16G/32G Option)
Decoding resolutionUp to 1080P
Networking support4G\\Ethernet, support WIFI / Bluetooth 4.0
Video formatRMVB,FLV,AVI,MOV,WMV,MP4,MPEG etc.
AudioMP4、WMA、WAV、APE、FLAC、AAC etc.
RTC timing clocksupport
OS updateUSB update
OSD LanguageEnglish/Chinese(Brazil)
GPSExternal GPS(Option)
System watchdogsupport
Input Ports
HDMI IN*1
HDMI OUT*1
LAN/RJ45*1
TF*2
USBOption
SD


Output Ports
Earphone*1
Coaxial*1
Audio Feature
Audio frequency outputleft and right channels Speaker


Power Feature
Power supply100V-240V,50-60 Hz
Power Saving≤1W
Power consumption( Watt)≤88W

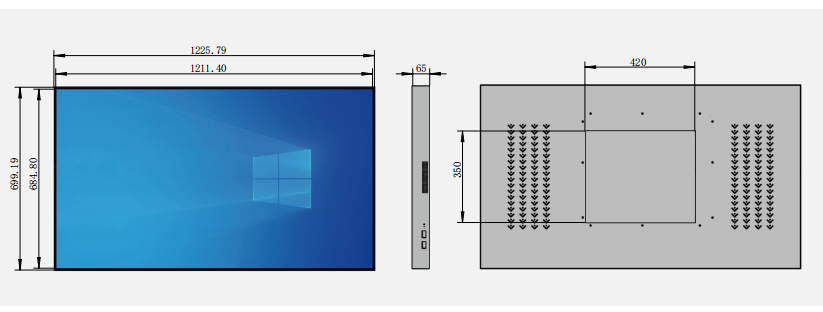

Size description of the whole machine
Overall size(Without wall hanging)1225.79*699.19*65mm
Product size (including rack)1225.79*699.19*65mm
Packing Carton Dimension(W×D×H)1360*855*180mm
Net Weight(Wo/ the Stand)About 24Kg
Gross WeightAbout 28.5kg
Hanging rack (optional)Wall mount / mobile stand x1 ((optional)
Accessary
WIFI Antenma0
Remote Control1
Power Cord1
Warranty Card1
User manual1
Wall bracket1

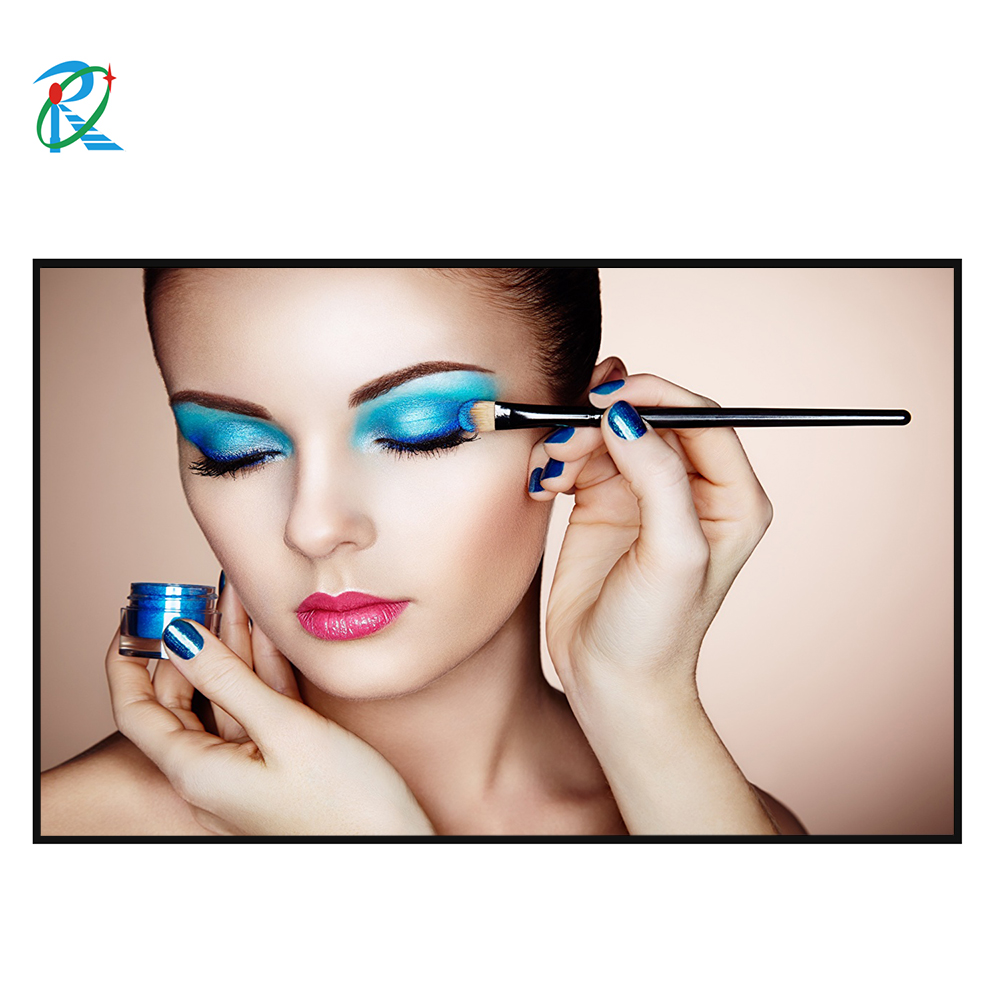

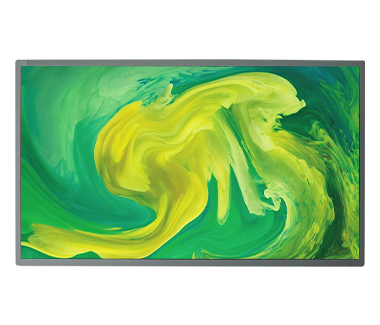

RS55-OEM is a 55-inch LCD display with 500 nits brightness, 1920×1080 resolution and 1400:1 contrast ratio. Its operating temperature range is -20 °C to 70 °C.

RisingStar 55 inch ultra narrow bezel digital signage display delivers a highly realistic sound and immersive visual experience.

· Digital Signage Display delivers a highly realistic sound and immersive visual experience thanks to the high pixel density that shows even the most subtle details

· Experience luminescent visual images with LCD display

· Features full 1920 x 1080 HD resolution enabling sharp and clear images

· Features 1920 x 1080 resolution and 1080p scan format for producing sharp and bright images

· Direct LED backlight technology for a consistent picture quality from corner to corner

· 55" Panasonic Signage Display - Ideal for showing different types of advertisements and content

· HDMI and DisplayPort daisy chain capabilities can support up to 4K UHD resolution

· Uniformity calibration of each display for gamma, intensity and RGB for consistency from display to display

Product FAQs

How bright is the RS55-OEM?

It is rated at 500 nits (cd/m²) brightness.

What are the main display specifications?

It uses a 55-inch panel, 1920×1080 resolution, 1400:1 contrast ratio.

What is the operating temperature range?

The operating temperature range is -20 °C to 70 °C.

Is this product available for OEM or ODM customization?

Yes. RisingStar is an OEM/ODM manufacturer and accepts customization requirements for volume orders; contact the sales team with your target specification.

What is the power input requirement for the RS55-OEM?

The power input requirement is 100V-240V,50-60 Hz.

What is the pixel pitch of the RS55-OEM?

The pixel pitch is 0.63(H) x 0.63 (V).

What is the viewing angle?

The viewing angle is 178(H)/178(V).
