    75 inch Big Size outdoor open frame monitor with 2500 high brightness
    • 75 inch Big Size outdoor open frame monitor with 2500 high brightness
    • 75 inch Big Size outdoor open frame monitor with 2500 high brightness

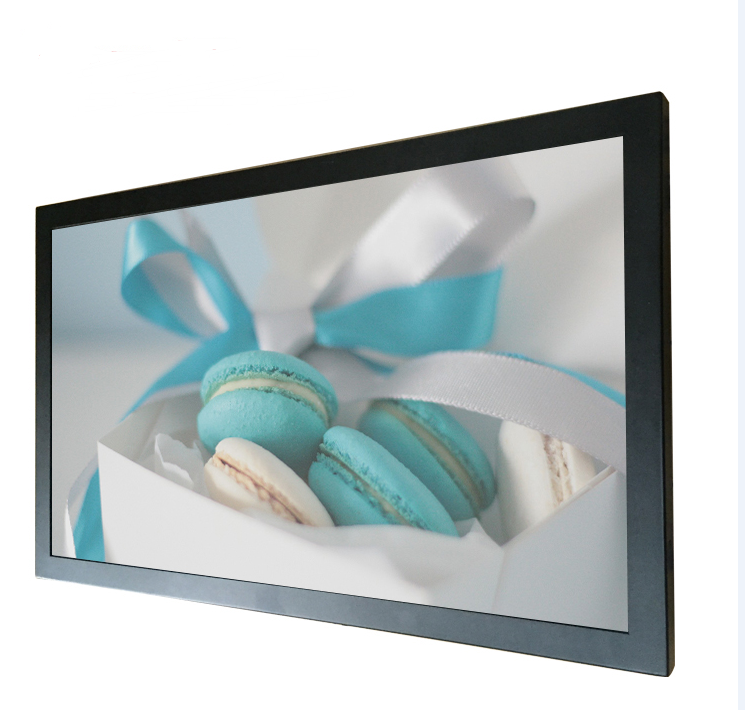

    75 inch Big Size outdoor open frame monitor with 2500 high brightness

    RisingLCD open frame monitor is designed to be easily integrated into game machine, security monitor, or kiosk or replacing your existing defective LCD screen, no technical skills requirements.


    Brand:

    LG

    Model No.:

    DV750QUB-R01Screen size:

    75"

    Resolution:

    3840*2160

    Brightness (cd/m²):

    2500

    Touch (Optional):

    10 point capacitive touch and resistive touch optional

    OS system:

    Android ,HDMI optional


    RS750ENT-N25 is a outdoor open-frame that is with equipped with LG origial panel, 3840*2160 ultra high resolution, and 1200:1 contrast ratio and 16:9 aspect Ratio, and wide industrial operation temperature, -20 ~ 70 °C  and with RisingLCD customized LED backlight, its brightnesss can achieve 2500nits, it is ideal for the broadcast monitor, medical monitor, industrial automation LCD monitor, surveillance system, ticket kiosk such outdoor application.



    RisingLCD open frame monitor is designed to be easily integrated into game machine, security monitor, or kiosk or replacing your existing defective LCD screen, no technical skills requirements.



    75 inch Big Size outdoor open frame monito Key Features,

    **Special designed for easy integration into industrial machine and kiosks.

    **75 inch big size screen

    **Ultra high resolution and wide viewing angle
    ** High Brightness: 2500nits

    **Wide industrial operating temperature range

    **Auto Brightness Control, energy saving and low consumption

    **Built with WIFI and Ethernet(lan) internet connection

    ** Touch screen is optional



    Wide Industrial operating temperature range, from -30°C to 80°C*

    RisingLCD outdoor open frame monitor adopts industrial grade LG original display which have a excellent performance in all aspects, it can operate in a stable and failure-free way for a long period within wide range of temperatures from -30°C to 80°C* which results in fewer constraints for outdoor installation. thanks to such option, it may be successfully applied, e.g in transportation and automotive industry, or testing machine.

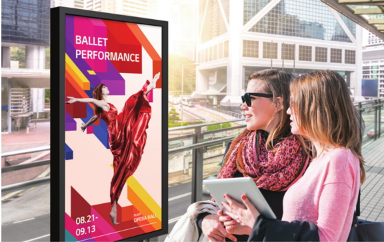

    High brightness,

     With a great brightness of 2500nits our outdoor open frame monitor can clearly deliver contents and information to attract people attention, which is the ultimate display for outdoor visibility, and , and 178° Wide viewing angle is a perfect fit for shoppers, empolyees or visitors that will view the monitor from diverse angles while passing by.

    DV750QUB-R01 outdoor open frame monitor 1



    Built-in smart brightness sensor,

    RS750ENT-N25 outdoor open frame monitor is built in Smart Brightness Sensor, that can adjust the brightness of the monitor automatically according to the surrounding lighting conditions. This feature considerably reduces power consumption and increases the monitor’s lifetime. With 7*24 hours of all-weather stable operation ability, suitable for industrial sites.





    Auto brightness control-2




    Bluetooth and Wifi support

    Our open frame monitor supports Bluetooth to wirelessly connect to various device, such as keyboard, mouse, speaker and so on. It is r ecommended to building a hybrid environment, so that the people can have a online or offline meetings or classes with ease.



    Touch optional,

    Capacitive touch, IR touch is optional to fit many application such as inside the information kiosk with customized appearance in the shipping maill, airport station. We can customize it for you.



    OEM and ODM are welcomed!


    RisingLCD is a professional highlight LCD manufacturer from China, specializes in manufacturing and distributing all types of LCD module, LCD monitors, open frame monitor,  outdoor and indoor digital signage and goods are exported all of the world, could customize the products based on the customer needs with a competitive price, RisingLCD is your best choice!

    Hot Tags: 75 inch Big Size outdoor open frame monitor with 2500 high brightness, manufacturers, suppliers, factory, Customized
    Factory   Model No: RS750ENT-N25
    Panel Brand LG Display
    Panel No.: DV750QUB-R01
    Screen Size75"
    Panel TechnologyIPS,   M+ (WRGB)
    Active Area(mm)1649.66*927.936   (H×V)mm
    Panel Type. a-Si   TFT-LCD,
    Aspect Ratio16:09
    Native Resolution3840*2160   (UHD) 59PPI
    Refresh Rate60Hz
    Brightness2500nit   (Typ, w/ Glass)
    Contrast Ratio1200:1   (Typ)
    Dynamic CR500,000:1
    Color gamutNTSC   72%
    Viewing Angle (H x V)178   x 178
    Support Color: 1.07M   , 89% NTSC
    Response Time8   (Typ.) (G to G)ms
    Surface Treatment (Haze)Hard   coating (3H), Reflection 1.0% (Max.)
    Transmittance: 5.5%   (Typ.) (with Polarizer)
    Life time50,000   Hrs (Typ)
    Operation Hours (Hours/Day)24/7
    Operating Temperature: -30 ~ 80 °C
    Storage Temperature: -30 ~ 80 °C
    Portrait / LandscapeYes   / Yes
    QWP (Quarter Wave Plate)Yes   (Apply on glass)
    HousingAluminum
    Jack interface input HDMI   (2), , RS232C IN (4pin phone jack), RJ45(LAN), IR IN, USB2.0 Type A (1)
    Jack interface output DP   Out (Input DP/HDMI), Externel Speaker Out (L/R, 10W+10W), RS232C OUT
    Net work supportLAN/WLAN/3G/4G/5G   network.
    Touch (Optional) IR touch, Capacitive   touch
    Support Brightness options   and vesa mounting options
    Installation: Side mount bracket,   Wall-mounted
