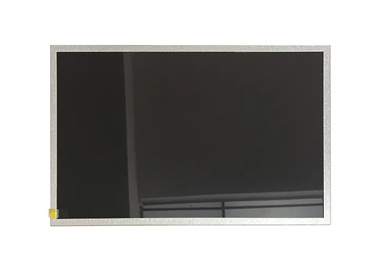

12.1 inch sunlight readable LCD monitor with 1000 nits brightness

12.1 inch sunlight readable LCD monitor with 1000 nits brightness

This sunlight readable 12.1 LCD monitor screen is with 6  oclock viewing angel display, and built in with controller IC, it supports LVDS interface, high brightness 1,000 nits, it is suitable for outdoor application.


Brand:

LG/AUO/BOE

Model name:

RS121HAN-GE10

Screen size:

12.1"

Screen type:

Outdoor LCD Panel

Resolution:

1280(RGB)×800

Brightness (cd/m²):

1000



Overview Specifications Customized Services Support & Shipping

12.1 inch sunlight readable LCD monitor with 1000 nits brightness |risinglcd

RS121HAN-GE10 is a Wide Temperature，High Brightness，1280*800 TFT LCD monitor, WLED Backlight，Life ≥ 100K hours，With LED Driver，with LVDS interface.

12.1” TFT LCD monitor, 1000nits, LED Backlight 1280x800

High Brightness 1000 nits

Sunlight Readable

Wide Operating Temperature

Wide Viewing Angle of 178°(H), 178°(V)

Low Power Consumption

BL MTBF: 100,000 hours

This sunlight readable 12.1 LCD monitor screen is with 6 o’clock viewing angel display, and built in with controller IC, it supports LVDS interface, high brightness 1,000 nits, it is suitable for outdoor application.

The 12.1 inch sunlight readable LCD monitor is often used for any embedded systems, industrial device, security and hand-held equipment which requires display in high quality and outdoor application.

12

RS121HAN-GE10 12.1 inch high brightness display 12.1 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display
Screen Diagonal12.1 inch
Model NoRS121HAN-GE10
Active Area 261.12(W)×163.2(H) mm
Pixels1280(RGB)×800, WXGA, 124PPI
Physical Size283(W)×185.1(H)×10.2(D) mm
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode a-Si TFT-LCD, LCM
White Luminance ( Center )1000 cd/m2 (Typ.)  [cd/m2 ]
Contrast Ratio 700:1 (Typ.)
Optical Response Time4/12 (Typ.)(Tr/Td) ms
Nominal Input Voltage 3.3V (Typ.)
Frame Rate60Hz
Viewing Angle80/80/80/60 (Typ.)(CR≥10)
Weight [g] 0.62Kgs
Interface Type LVDS (2 ch, 6/8-bit)  , 20 pins Connector
Support Color 16.7M/262K,  40% NTSC
Surface Treatment Hard coating (3H)
RoHS Compliance RoHS Compliance
Operating Temperature-20 ~ 70 °C
Storage Temperature-30 ~ 80 °C
