43 inch Dual Screens outdoor Digital signage Display
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
Flexible Warranty Options (1 to 5 Years)
As an OEM/ODM manufacturer, we offer highly customizable warranty plans. Choose the standard coverage for cost-sensitive projects, or opt for our premium 3-5 year extended warranty for mission-critical digital signage deployments.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
Full Specifications
| Panel Features | Input Ports | ||
| Screen Size | 43" | USB OTG | 1 |
| Active Display Area | 940.896(H)×529.254(V) mm | USB | 1 |
| Native Resolution | 1920(RGB)×1080 FHD | TF | 1 |
| Brightness (Type) | 2000 nits facing window side+ 700 nits Facing inside | RJ45 | 1 |
| Contrast Ratio (Type) | 1200:1 | HDMI out | 1 |
| Viewing Angle | 178(H)/178(V) | Audio Feature | |
| Display Color | 8 bit/16.7M | Speaker Power Output | yes |
| Frame Rate | 60Hz | DC IN | 90-240V/50HZ |
| Backlight | LED | Power consumption( Watt) | 160W(Max) |
| Life Time | >50000 Hrs | Mechanical Design | |
| Chassis Material | Metal | ||
| Functions | Chassis Colors | Black | |
| OS | Andriod 7.1.2 | Product Size | 1180*577.5*75mm |
| Motherboard model | RK3288 | Packing Carton Dimension(W×D×H) | |
| CPU | Cortex-A17 | Net Weight | 22(KG) |
| Main frequency | 1.8 GHz | Gross Weight | |
| RAM | 2GByte | ||
| Flash | 16GByte | ||
| Networking support | Built-in WiFi | ||
| Bluetooth | BT4.2 | ||
| Picture format | JPG、JPEG、BMP、GIF、PNG, etc | ||
| Audio | MP4、WAV、APE、FLAC、AAC etc. | ||
| Video format | Support rich video format: etc.H.265，H.264， VP8, MAV, WMV, AVS, H.263, MPEG4 etc. | ||

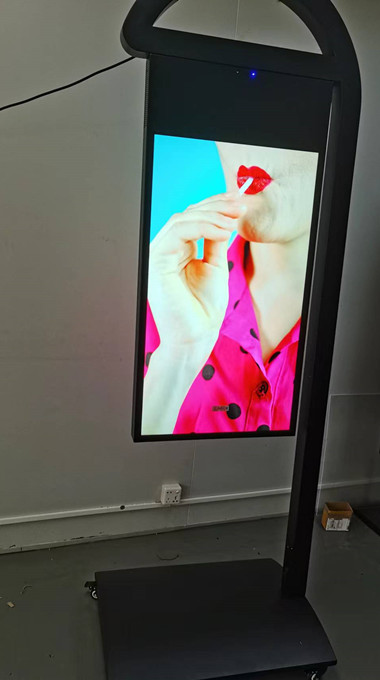

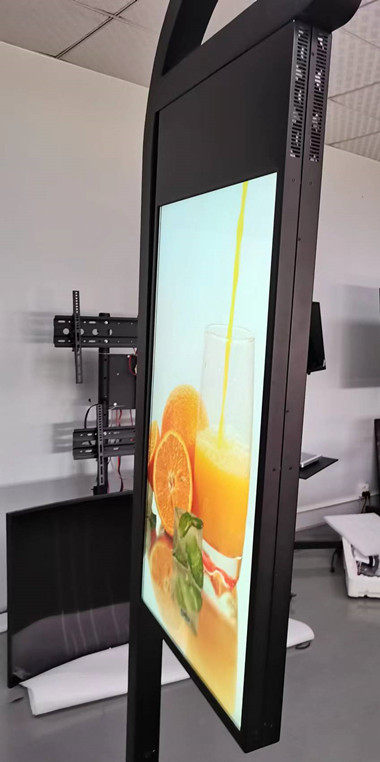

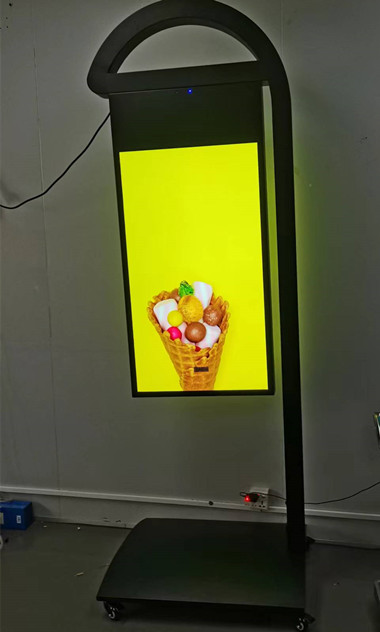

43 inch Dual Screens outdoor Digital signage Display
Designed for 24/7 operation, Risingstar dual screens digital signage displays are produced to meet the highest professional standard and take advantage of superior components to ensure a long product lifetime in demanding environments.
Dual screens LCD outdoor digital signage advertise kiosk, touch screen/ no touch optional
A+ Grade dual 43 inch full IPS screens, resolution 1920*1080,
Over 50k lifetime LED backlight,
High brightness: outside 2000 nits and inside 700 nits.
Application: outdoor digital signage with touch screen, widely used, use for meeting room, restaurant, banking, shipping maill, self order, commercial, institution, financial institution Etc.
Industrial outdoor grade high brightness panel
Can bear with internal or external high temperature and long time working hours, screen colors never fade and no burned blacksports.
Efficient airflow system
Low-noise cooling fans inside help the machine cool down quickly, also there is self-protection control, system for extreme high cases
Auto-adjustable brightness sensor,
To save energy, brightness will change according to environment, for best display effects.
Dual screen
Outdoor dual screens for standing model or hanging model are available, inside brightness 700 nits, outside brightness 2000 nits.
OEM / Customized Services
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
