Specifications

Model No RS121ENT-N06
Panel Brand BOE   Display
Panel No. AV121X0M-N10
Screen Size12.1"
Active Area(mm)245.76*206.3   (H×V)
Panel Type. a-Si   TFT-LCD, CELL
Aspect Ratio4:03
Native Resolution1024*768,   XGA, 105PPI
Refresh Rate60Hz
Brightness600nit   (Typ, w/ Glass)
Contrast Ratio1000:1
Dynamic CR500,000:1
Color gamutNTSC   70%
Viewing Angle (H x V)85/85/85/85   (Typ.)(CR≥10)
Support Color 16.2M,   70% NTSC
Response Time30   (Typ.) (Tr to Td)ms
Life time50,000   Hrs (Typ)
Operation Hours (Hours/Day)24/7
Operating Temperature-20~70 °C
Storage Temperature-30~80 °C
Frame materialmetal
InterfaceUSB,HDMI,SD,RJ45,Power   input
Photo FormatJPEG,BMP,GIF,PNG
Audio FormatMP3,WMA,OGG,FLAC
Video FormatAVI,MKV,MOV,MP4,RMVB,MPG,VOB,WMV,MPEG,TS,DIVX,XVID   ect

RS121ENT-N06 is a 12.1-inch LCD display with 600 nits brightness, 1024×768 resolution and 1000:1 contrast ratio. Its operating temperature range is -20 °C to 70 °C.

RisingStar open frame monitor is designed to be easily integrated into game machine, security monitor, or kiosk or replacing your existing defective LCD screen, no technical skills requirements.

RS121ENT-N10 is a open-frame that is with equipped with BOE origial panel, 1024*768 resolution, and 1000:1 contrast ratio and 4:3 aspect Ratio, and wide industrial operation temperature, -20 ~ 80 °C and with RisingStar customized LED backlight, its brightnesss can achieve 600nits, it is ideal for the broadcast monitor, medical monitor, industrial automation LCD monitor, surveillance system, ticket kiosk and so on.

application field

12.1 open frame touch screen monitor Key Features

**Special designed for easy integration into industrial machine and kiosks.

**12.1 inch of versatile screen size

**Wide industrial operating temperature range

**Built with WIFI and Ethernet(lan) internet connection

**The brightness can be customized to 600nits, 1000nits, 1500nits.

**Built-in Touch Display

Wide Industrial operating temperature range

RisingStar open frame monitor can operate in a stable and failure-free way for a long period within wide range of temperatures from -20°C to 80°C* which results in fewer constraints for outdoor installation. thanks to such option, it may be successfully applied, e.g in transportation and automotive industry, or testing machine.

Our open frame touch screen monitor supports Bluetooth to wirelessly connect to various device, such as keyboard, mouse, speaker and so on. It is r ecommended to building a hybrid environment, so that the people can have a online or offline meetings or classes with ease.

QQ图片20220427111824

With a great brightness of 600 cd/m², our open frame touch screen display can clearly deliver contents and information, and attract people attention, which is the ultimate display for outdoor visibility.

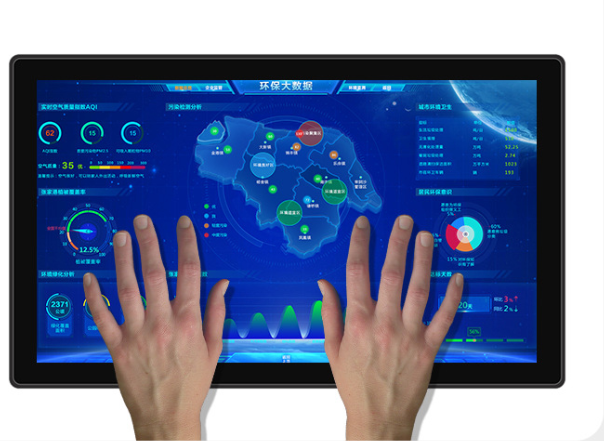

This open frame monitor is built in a touch screen, it adopts PCAP touch technology that not easy to touch by mistake, precise positioning, high light transmittance and clarity, lets you take advantage of touch features and navigate web pages, flick through photos, paint and play games - all with your finger tips, that is suitable for various commercial and industrial environments,

Multi touch

OEM and ODM are welcomed!

RisingStar is a professional highlight LCD manufacturer from China, specializes in manufacturing and distributing all types of LCD module, LCD monitors, open frame monitor, outdoor and indoor digital signage and goods are exported all of the world, could customize the products based on the customer needs with a competitive price, RisingStar is your best choice!

Product FAQs

How bright is the RS121ENT-N06?

It is rated at 600 nits (cd/m²) brightness.

What are the main display specifications?

It uses a 12.1-inch panel, 1024×768 resolution, 1000:1 contrast ratio.

What is the operating temperature range?

The operating temperature range is -20 °C to 70 °C.

Is this product available for OEM or ODM customization?

Yes. RisingStar is an OEM/ODM manufacturer and accepts customization requirements for volume orders; contact the sales team with your target specification.

What interface does the RS121ENT-N06 use?

It adopts USB,HDMI,SD,RJ45,Power input interface.

What is the viewing angle?

The viewing angle is 85/85/85/85 (Typ.)(CR≥10).

What panel technology does the RS121ENT-N06 use?

It uses a-Si TFT-LCD, CELL.
