Specifications

ItemDetails
ParameterValue
Model NameRS286HNX01D01-BK
Screen Size28.6"
Display Area (mm)698.4(H) x 196.43(V)
Resolution1920x540
Aspect Ratio32:9
Brightness1500 cd/m2
Contrast Ratio4000:1
Response Time (Typical)8 (Typ.)(G to G) ms
Viewing Angle89/89/89/89 (Min.)(CR≥10)
Display Colors16.7M
BacklightLED
BL MTBF50,000 hours
Glass5mm glass
Touch Type (option)EETI / Projected Capacitive Touch (option)
Input PowerAC100-240V
Power Consumption50W
Input InterfacePC AUDIO IN*1, EARPHONE OUT*1, DVI*1, VGA*1, HDMI*1, AC IN*1
Dimensions (mm)756.5 x 254.5 x 73
Mounting400 x 200
Weight (Net)14.5 kg
IP (Ingress Protection)IP65
Operating Temperature-20°C to 60°C
Storage Temperature-20°C to 60°C

RS286HNX01D01-BK is a 28.6-inch LCD display with 1,500 nits brightness, 1920×540 resolution and 4000:1 contrast ratio. Its operating temperature range is -20 °C to 70 °C.

Product Overview

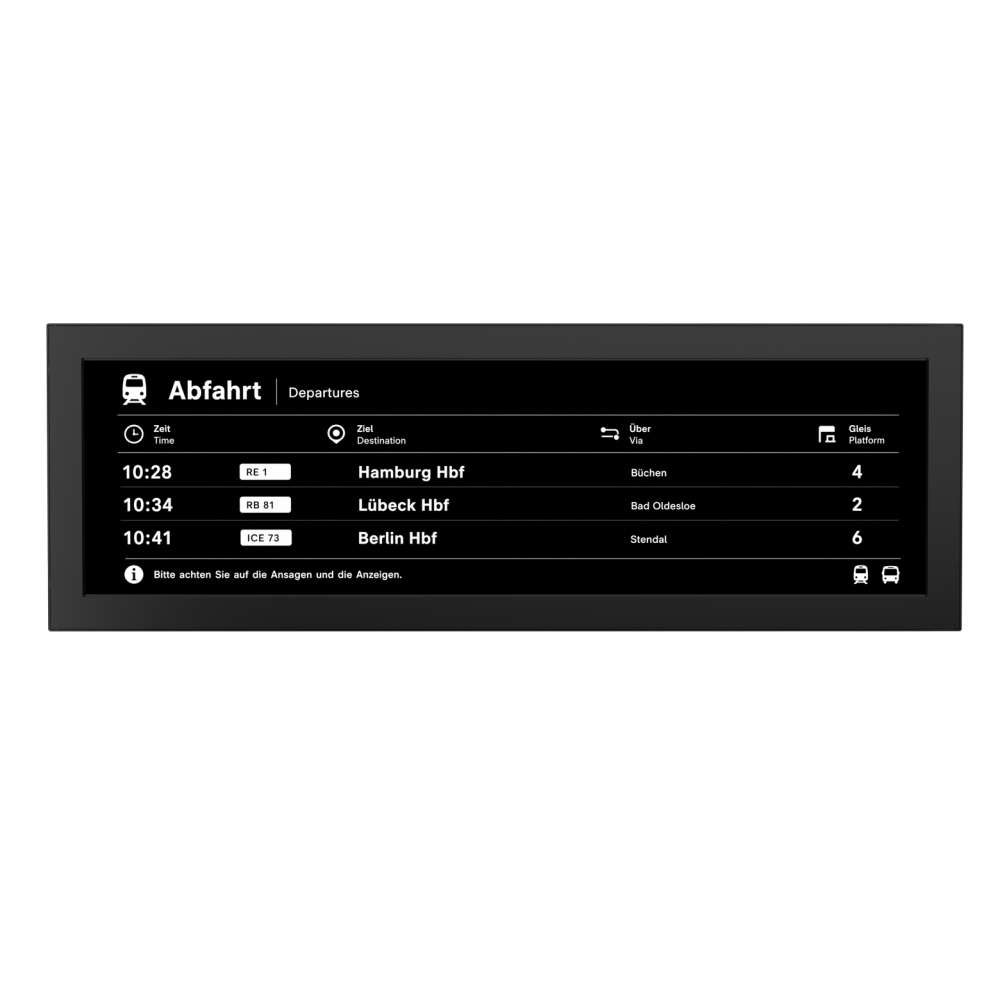

The 28.6-inch Stretched Bar LCD Display RS286HNX01D01-BK from RisingStar is a 32:9 ultra-wide bar display built for narrow installation spaces. Its 1920 × 540 panel delivers 1500 nits of brightness with a 4000:1 contrast ratio, so promotional and passenger information stays readable even in a sunlit storefront or a vehicle interior.

The unit ships in an IP65-rated enclosure with AC100-240V input and consumes 50W, making it a drop-in replacement for conventional bar screens. Operating range is -20℃ to 60℃.

Key Features

  • High brightness 1500nits

  • Protection level IP65

  • LED Backlight

  • Wide Viewing Angle of 178°(H), 178°(V)

  • Operation Temperature (-20°C ~ 60°C)

  • LCD Blackening Defect Free

  • Low Power Consumption

  • BL MTBF: 50,000 hours

Typical Applications

  • shelf-edge and gondola advertising in retail stores
  • bus, tram and train interior passenger information
  • vending machine and kiosk header strips
  • bank queue systems and queue number displays

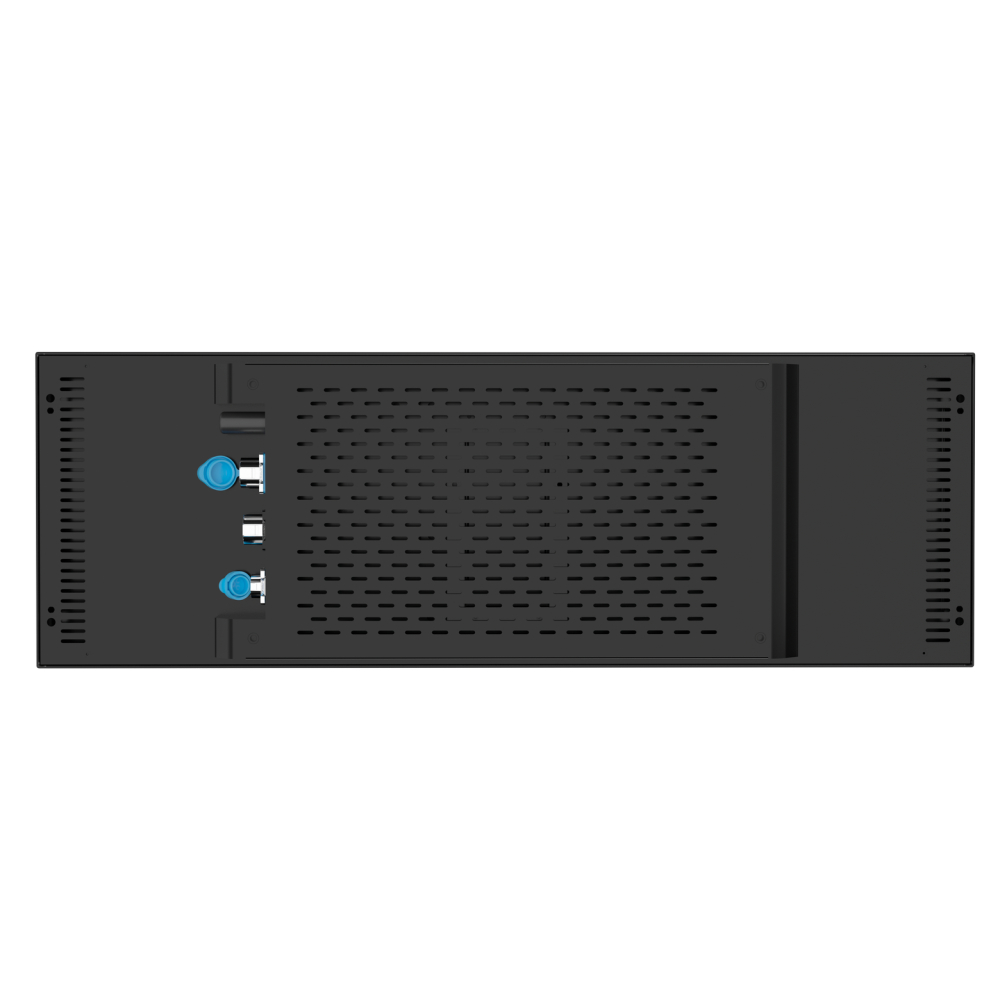

Physical product

28-6-inch-stretched-bar-lcd-1500nits-ip65

Product FAQs

How bright is the RS286HNX01D01-BK?

It is rated at 1,500 nits (cd/m²) brightness.

What are the main display specifications?

It uses a 28.6-inch panel, 1920×540 resolution, 4000:1 contrast ratio.

What is the operating temperature range?

The operating temperature range is -20 °C to 70 °C.

Is this product available for OEM or ODM customization?

Yes. RisingStar is an OEM/ODM manufacturer and accepts customization requirements for volume orders; contact the sales team with your target specification.

What interface does the RS286HNX01D01-BK use?

It adopts PC AUDIO IN*1, EARPHONE OUT*1, DVI*1, VGA*1, HDMI*1, AC IN*1 interface.

What is the power input requirement for the RS286HNX01D01-BK?

The power input requirement is AC100-240V.

What is the viewing angle?

The viewing angle is 89/89/89/89 (Min.)(CR≥10).

Is the RS286HNX01D01-BK suitable for outdoor or high-ambient-light use?

Yes. Rated at 1,500 nits, it is a high-brightness panel built for sunlight-readable and outdoor applications.

What is the protection rating of the RS286HNX01D01-BK?

Its protection rating is IP65, so it is built for outdoor and semi-outdoor installation.
