Specifications
| Item | Details |
|---|---|
| Model Name | RS320HNX01-A01-BK |
| Screen Size | 32" |
| Display Area (mm) | 698.4(W) × 392.6(H) mm |
| Brightness | 3000 cd/m² |
| Resolution | 1920 × 1080 |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1100:1 |
| Response Time (Typical) | 10 ms (Tr/Td) |
| Viewing Angle | 89/89/89/89 (Min., CR≥10) |
| Display Colors | 16.7M |
| Operating System | Android 11 (Optional) |
| RAM | 4G (Optional) |
| ROM | 32G (Optional) |
| Speaker | 5W × 1 |
| Glass | 5 mm Anti-Reflection Glass, IK10 |
| Touch Type | Capacitive Touch, 10-point (Optional) |
| Network | Optional (WiFi / Ethernet / 4G) |
| Input Power | AC 100–240V |
| Power Consumption | <150W |
| Cooling System | Passive Heat Dissipation (Fanless) |
| Input Interface | Optional (HDMI ×1, RJ45 ×1, USB ×2, AC ×1) |
| Dimensions (mm) | 770.5 × 465.5 × 90 mm |
| Mounting | 400 × 200 mm, 4-M8, Max Depth 15 mm |
| Weight (Net) | TBD |
| Ingress Protection | IP66 |
| Shell Color | Black |
| Operating Temperature | -20~70 °C |
| Storage Temperature | -30~80 °C |

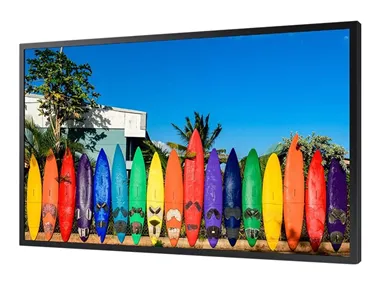

RS320HNX01-A01-BK is a 32-inch LCD display with 3,000 nits brightness, 1920×1080 resolution and 1100:1 contrast ratio. Its operating temperature range is -20 °C to 70 °C.
Key Features
High Brightness 3000 nits
LED Backlight
Sunlight Readable
Automatic Brightness Adjustment via Light Sensor
LCD Blacking Defect Free
Low Power Consumption
Backlight MTBF: 50,000 hours
Specifications
| Item | Details |
|---|---|
| Model Name | RS320HNX01-A01-BK |
| Screen Size | 32" |
| Display Area (mm) | 698.4(W) × 392.6(H) mm |
| Brightness | 3000 cd/m² |
| Resolution | 1920 × 1080 |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1100:1 |
| Response Time (Typical) | 10 ms (Tr/Td) |
| Viewing Angle | 89/89/89/89 (Min., CR≥10) |
| Display Colors | 16.7M |
| Operating System | Android 11 (Optional) |
| RAM | 4G (Optional) |
| ROM | 32G (Optional) |
| Speaker | 5W × 1 |
| Glass | 5 mm Anti-Reflection Glass, IK10 |
| Touch Type | Capacitive Touch, 10-point (Optional) |
| Network | Optional (WiFi / Ethernet / 4G) |
| Input Power | AC 100–240V |
| Power Consumption | <150W |
| Cooling System | Passive Heat Dissipation (Fanless) |
| Input Interface | Optional (HDMI ×1, RJ45 ×1, USB ×2, AC ×1) |
| Dimensions (mm) | 770.5 × 465.5 × 90 mm |
| Mounting | 400 × 200 mm, 4-M8, Max Depth 15 mm |
| Weight (Net) | TBD |
| Ingress Protection | IP66 |
| Shell Color | Black |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
Product FAQs
How bright is the RS320HNX01-A01-BK?
It is rated at 3,000 nits (cd/m²) brightness.
What are the main display specifications?
It uses a 32-inch panel, 1920×1080 resolution, 1100:1 contrast ratio.
What is the operating temperature range?
The operating temperature range is -20 °C to 70 °C.
Is this product available for OEM or ODM customization?
Yes. RisingStar is an OEM/ODM manufacturer and accepts customization requirements for volume orders; contact the sales team with your target specification.
What interface does the RS320HNX01-A01-BK use?
It adopts Optional (HDMI ×1, RJ45 ×1, USB ×2, AC ×1) interface.
What is the power input requirement for the RS320HNX01-A01-BK?
The power input requirement is AC 100–240V.
What is the viewing angle?
The viewing angle is 89/89/89/89 (Min., CR≥10).
Is the RS320HNX01-A01-BK suitable for outdoor or high-ambient-light use?
Yes. Rated at 3,000 nits, it is a high-brightness panel built for sunlight-readable and outdoor applications.
What is the protection rating of the RS320HNX01-A01-BK?
Its protection rating is IP66, so it is built for outdoor and semi-outdoor installation.
