A 10.1-inch display that stays readable at noon on a gas station forecourt. That's not a marketing claim — it's the engineering brief behind this module.

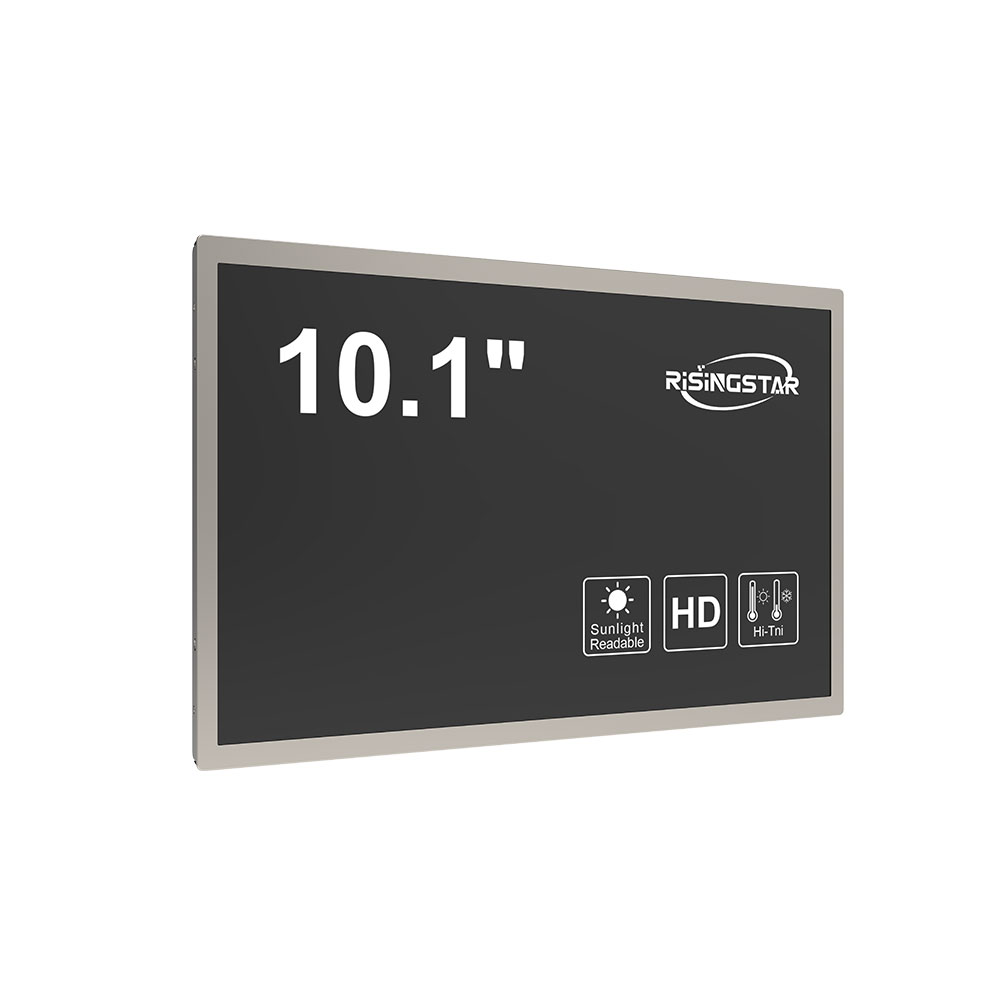

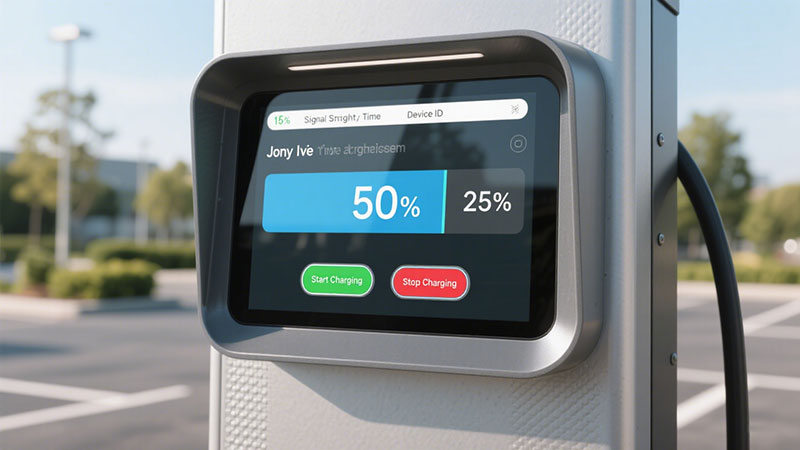

RisingStar's RS101ENT-N15 is a 10.1-inch sunlight readable IPS LCD module built for outdoor and industrial applications where ambient light isn't optional. 1,500 nits of calibrated luminance punches through direct sun. A 1,200:1 contrast ratio keeps dark UI elements from washing into gray. And the IPS panel holds color and contrast at 89° in every direction — meaning the driver standing to the side of an EV charger sees the same readable screen as the one standing directly in front.

The display surface is optically bonded — no air gap between the touch glass and the LCD. That means no internal fogging when night-time temperatures drop, no ghost reflections from overhead lights, and about 90% less surface reflection than a standard air-gap assembly.

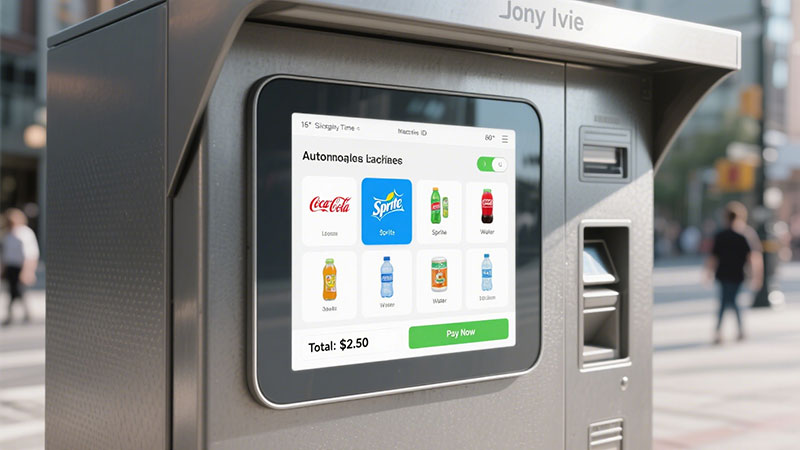

The touch layer is projected capacitive (PCAP), G+G structure, with a 10-point multi-touch controller tuned for the real world. It tracks touches through work gloves, nitrile gloves, and wet fingers — because outdoor kiosks get rained on, factory operators wear gloves, and medical staff don't take them off to use a screen.

Under the glass, the panel runs on a 4-lane LVDS interface with a 40-pin FPC connector. The LED backlight is driven by a 4-string × 12-LED array at 12V / 700mA, managed by a constant-current PWM controller. EMI shielding on the FPC keeps the signal clean in electrically noisy environments — factory floors, vehicle dashboards, charging stations.

Key Features

Optical Bonding: Why It Matters Outdoors

A standard air-gap display has two reflective interfaces — glass to air, and air to LCD. Each reflects about 4% of incident light. Combined, that's ~8% reflection bouncing back at the user, competing with the display's own emitted light. Under 100,000 lux of direct sun, that 8% reflection buries the image.

Optical bonding replaces the air gap with an optically clear adhesive (OCA) matched to the refractive index of glass. The two reflection interfaces become one — total surface reflection drops below 1%.

The practical difference: a 1,000-nit optically bonded display delivers better readable contrast under direct sunlight than a 1,500-nit air-gap display. Less backlight power. Less heat. Better image.

Optical bonding also eliminates the internal air cavity where condensation forms during overnight cooling cycles — a common failure mode for outdoor kiosks and vehicle-mounted displays that experience wide temperature swings.
