Specifications
| Parameter | Value |
|---|---|
| Model Name | RS490EGY-ND20 |
| Screen Size | 49" |
| Display Area (mm) | 1073.78 (H) * 604 (V) mm |

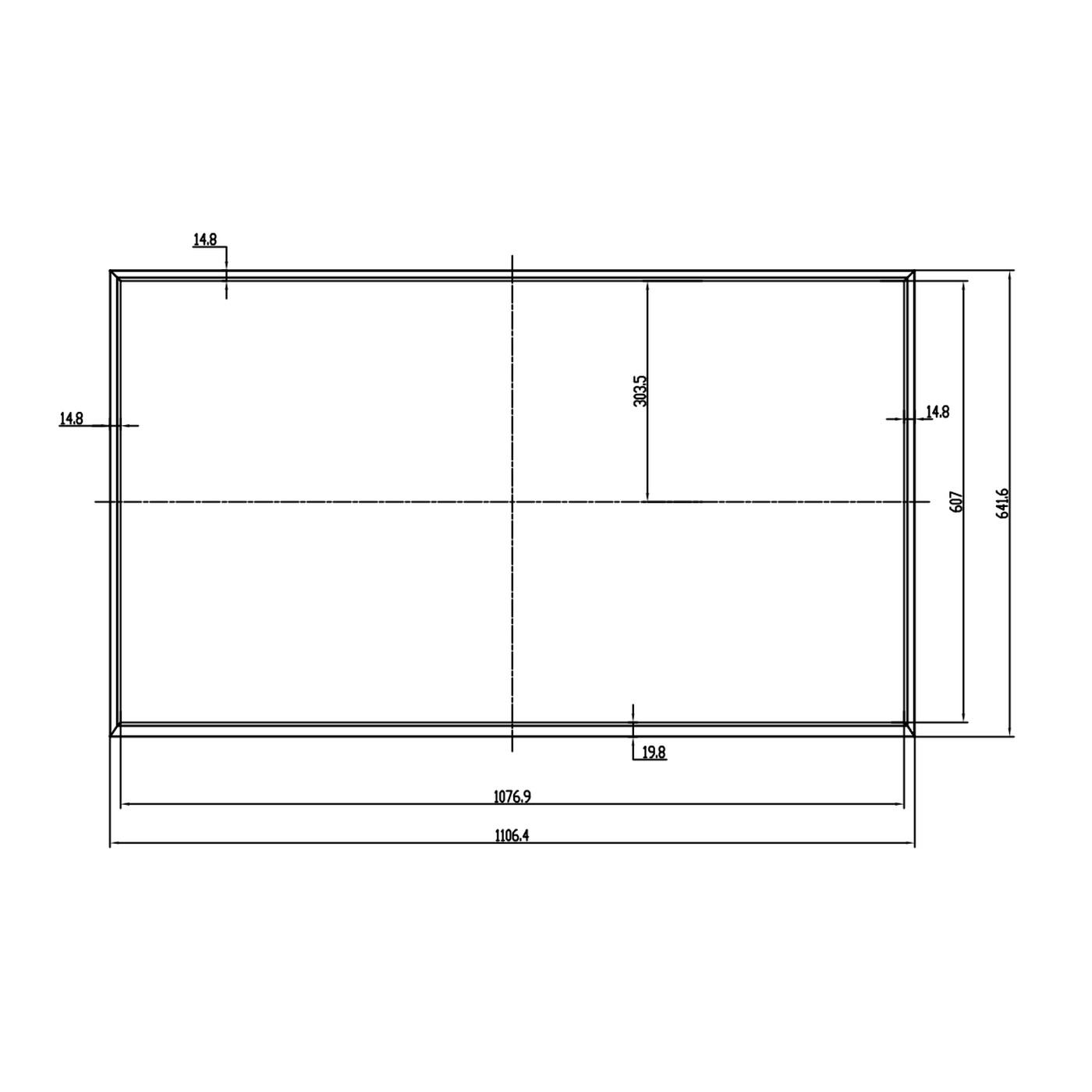

| Dimensions (mm) | 1106.4 (H)* 641.6 (V)* 60.3 (D) mm |
| Brightness | 2000 cd / m2 |
| Resolution | 3840 * 2160 |
| Aspect Ratio | 16:9 |
| Pixel Pitch (mm) | 0.27963 (H) * 0.27963(V) mm |
| Pixel Per Inch (PPI) | 89.94 |
| Pixel Arrangement | RGB Vertical strip |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Contrast Ratio | 1100:1 |
| Display Colors | 10-bit, 1.07 B |
| Response Time (Typical) | 6 (Typ.) (G to G) ms |
| Input Power | DC 24V for Backlight /12V for V-by-One |
| Power Consumption | 160 W |
| Driver Element | a-Si TFT - LCD |
| Surface Treatment | Haze 3%,Hard coating (2H) |
| Interface | V-by-One 8 lanes, 51 pins 0.5 mm |
| Weight (Net) | 12 kg |
| Operating Temperature | -20~70 °C |
| Storage Temperature | -30~80 °C |
| Backlight life | 50K(Typ.) |
RS490EGY-ND20 is a 49-inch LCD display with 2,000 nits brightness, 3840×2160 resolution and 1100:1 contrast ratio. Its operating temperature range is -20 °C to 70 °C.
Product Overview

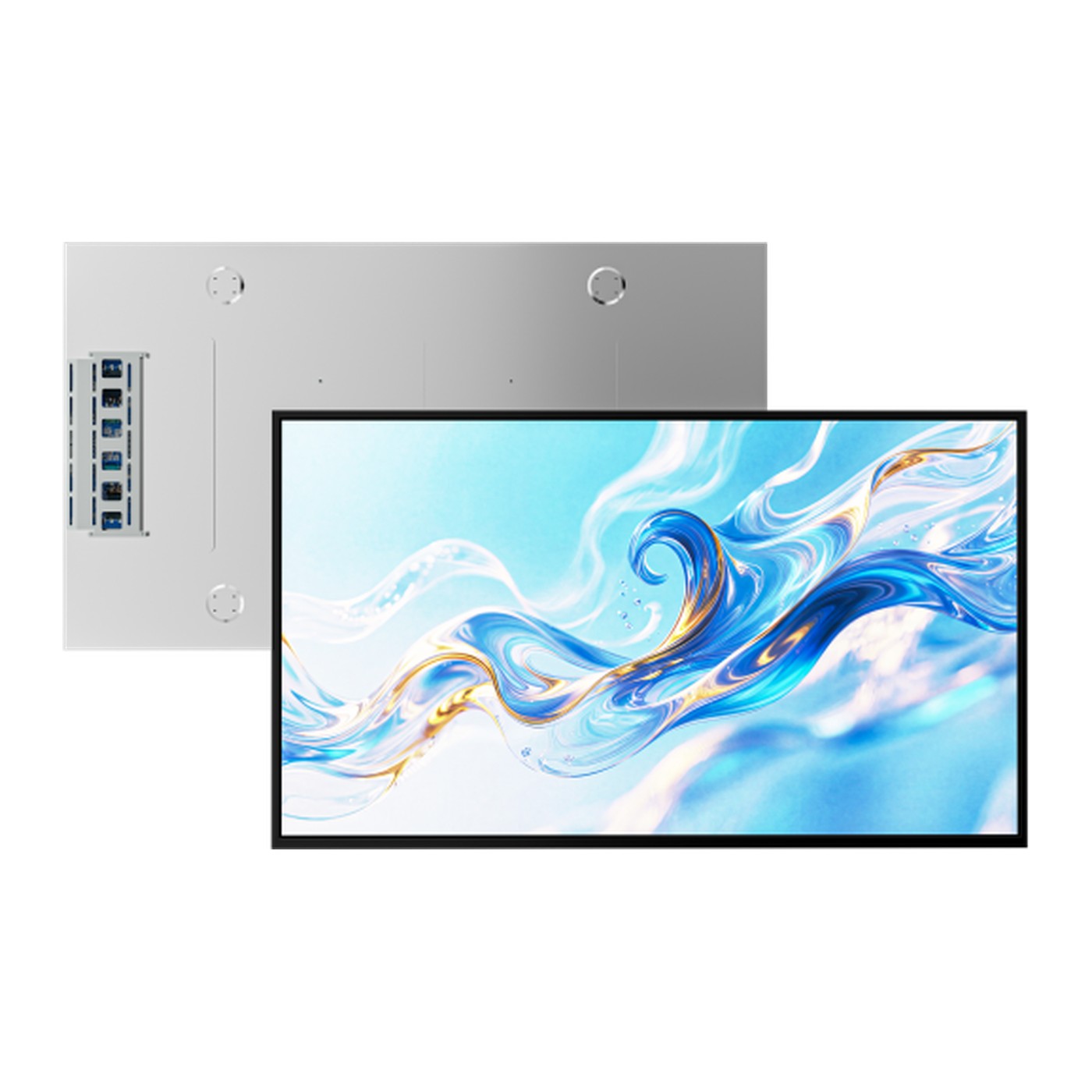

The 49 inch High Brightness TFT LCD Panel RS490EGY-ND20 from RisingStar is a 49 inch 4K panel for command centres, control rooms and large-format signage. 2000 cd/m2 of brightness, 3840 x2160 resolution and a 89/89/89/89 viewing angle make it a dependable building block for equipment makers that need a readable panel without a full enclosure.
Key Features
- Brightness 2000nits
- LED Backlight
- Low Power Consumption
- BL MTBF: 50,000 hours
Typical Applications
Typical uses include digital signage controllers, industrial HMIs, transport information displays, retail POS terminals and in-store video walls. Custom brightness, interface and bezel options are available on request.
Product FAQs
How bright is the RS490EGY-ND20?
It is rated at 2,000 nits (cd/m²) brightness.
What are the main display specifications?
It uses a 49-inch panel, 3840×2160 resolution, 1100:1 contrast ratio.
What is the operating temperature range?
The operating temperature range is -20 °C to 70 °C.
Is this product available for OEM or ODM customization?
Yes. RisingStar is an OEM/ODM manufacturer and accepts customization requirements for volume orders; contact the sales team with your target specification.
What interface does the RS490EGY-ND20 use?
It adopts V-by-One 8 lanes, 51 pins 0.5 mm interface.
What is the power input requirement for the RS490EGY-ND20?
The power input requirement is DC 24V for Backlight /12V for V-by-One.
What is the pixel pitch of the RS490EGY-ND20?
The pixel pitch is 0.27963 (H) * 0.27963(V) mm.
What is the viewing angle?
The viewing angle is 89/89/89/89 (Typ.)(CR≥10).
Is the RS490EGY-ND20 suitable for outdoor or high-ambient-light use?
Yes. Rated at 2,000 nits, it is a high-brightness panel built for sunlight-readable and outdoor applications.
How is the screen surface treated?
The panel surface treatment is Haze 3%,Hard coating (2H).
