Specifications
| Screen Diagonal | 24 inch |
| Panel Brand | BOE |
| Model No | RS240FBM-NE07 |
| Active Area | 597.888(W)×112.104(H) mm |
| Pixels | 1920(RGB)×360, 81PPI |
| Physical Size | 612.7(W)×132.1(H)×12.8(D) mm |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| White Luminance ( Center ) | 700 cd/m2 (Typ.) [cd/m2 ] |
| Contrast Ratio | 1200:1 (Typ.) |
| Optical Response Time | 30 (Typ.)(Tr+Td) |
| Nominal Input Voltage | 5.0V (Typ.) |
| Frame Rate | 60Hz |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Weight [g] | 1.21Kgs |
| Interface Type | 30 pins LVDS (2 ch, 8-bit) |
| Support Color | 16.7M, 72% NTSC |
| Surface Treatment | Haze 25% |
| RoHS Compliance | RoHS Compliance |
| Operating Temperature | -20~70 °C |
| Storage Temperature | -30~80 °C |
RS240FBM-NE07 is a 24-inch LCD display with 700 nits brightness and 1200:1 contrast ratio. Its operating temperature range is -20 °C to 70 °C.

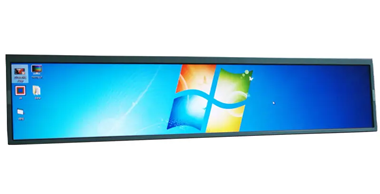

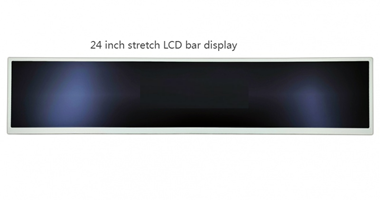

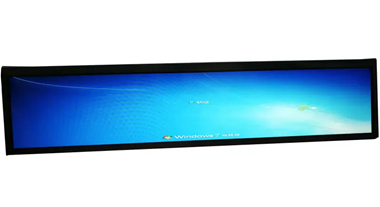

To cater to diverse demands, the Risingstar stretched Bar Type LCD display monitor boasts a range of options for display ratios of length and width. Specifically crafted for retail spaces, these commercial stretch screens are an ideal fit for shelf edge integration. The ultra-stretched digital shelf edge display is loaded with a built-in powerful digital signage player and a ready-to-use digital signage publishing system, making it tailored to meet the dynamic requirements of the retail environment.
Main feature for the 24 inch ultra wide stretch display:
· 24" stretched LCD
· Stretched display (aspect ratio of 16:3)
· Brightness of 700 nits
· Active area: 597.888(W)×112.104(H) mm
· Resolutions: 1920*360
· Contrast ratio: 1200:1
· Wide viewing angle of 178° (H), 178° (V)
· Low power consumption
· MTBF: 50,000 hours
Risingstar can offer you more size stretch LCD digital signage display e in different sizes of 15.1'',19'',23.1'',23.7'',24'',24.5'',28'', 35'',36'', 36.5'', 37'', 43.8'', 46.6'', 49.5'', 50.1'',68'', 88''.
Applications:
The stretch digital signage shelf display is an attractive Shelf Edge LCD Display well suited for a variety of in-store, on-shelf digital signage applications such as retail shelf edge advertising, retail shelf edge pricing, and multi-shelf digital signage in supermarkets, liquor stores, grocery stores, clothing stores, and other retail applications.
Product FAQs
How bright is the RS240FBM-NE07?
It is rated at 700 nits (cd/m²) brightness.
What are the main display specifications?
It uses a 24-inch panel, 1200:1 contrast ratio.
What is the operating temperature range?
The operating temperature range is -20 °C to 70 °C.
Is this product available for OEM or ODM customization?
Yes. RisingStar is an OEM/ODM manufacturer and accepts customization requirements for volume orders; contact the sales team with your target specification.
What interface does the RS240FBM-NE07 use?
It adopts 30 pins LVDS (2 ch, 8-bit) interface.
What is the power input requirement for the RS240FBM-NE07?
The power input requirement is 5.0V (Typ.).
What is the viewing angle?
The viewing angle is 89/89/89/89 (Typ.)(CR≥10).
How is the screen surface treated?
The panel surface treatment is Haze 25%.
What panel technology does the RS240FBM-NE07 use?
It uses a-Si TFT-LCD, LCM.
