Outdoor battery portable mobile LCD digital signage
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

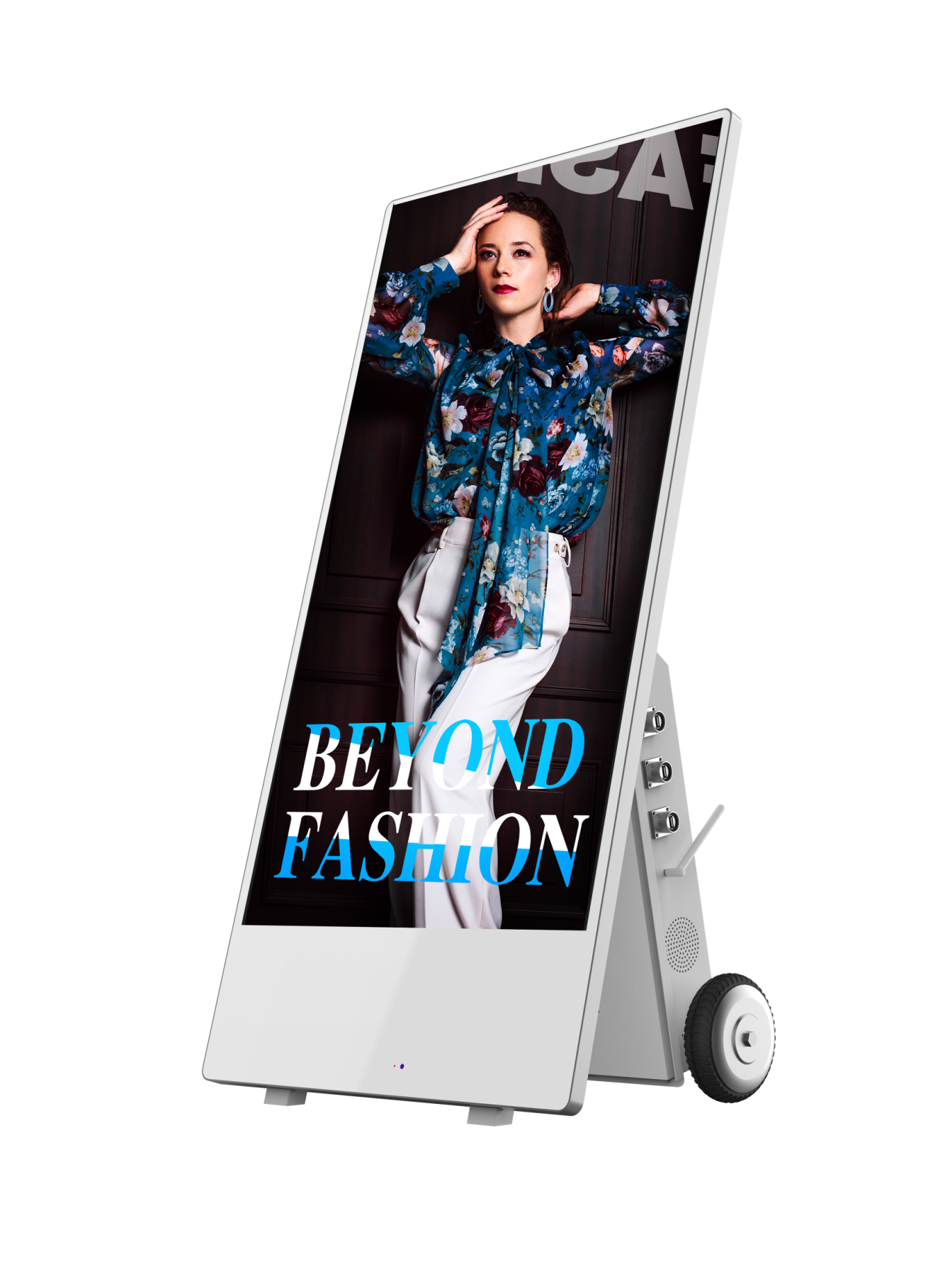

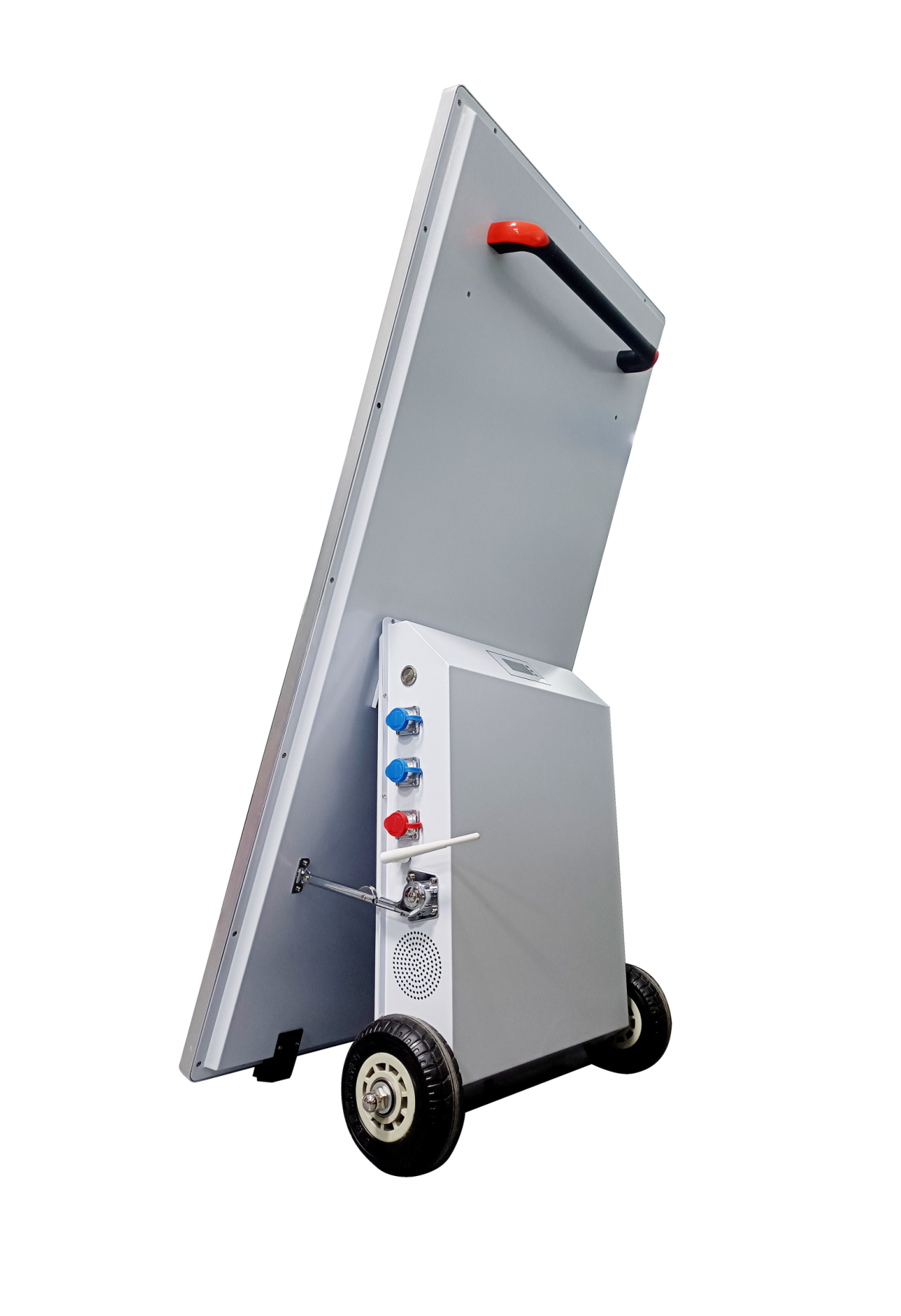

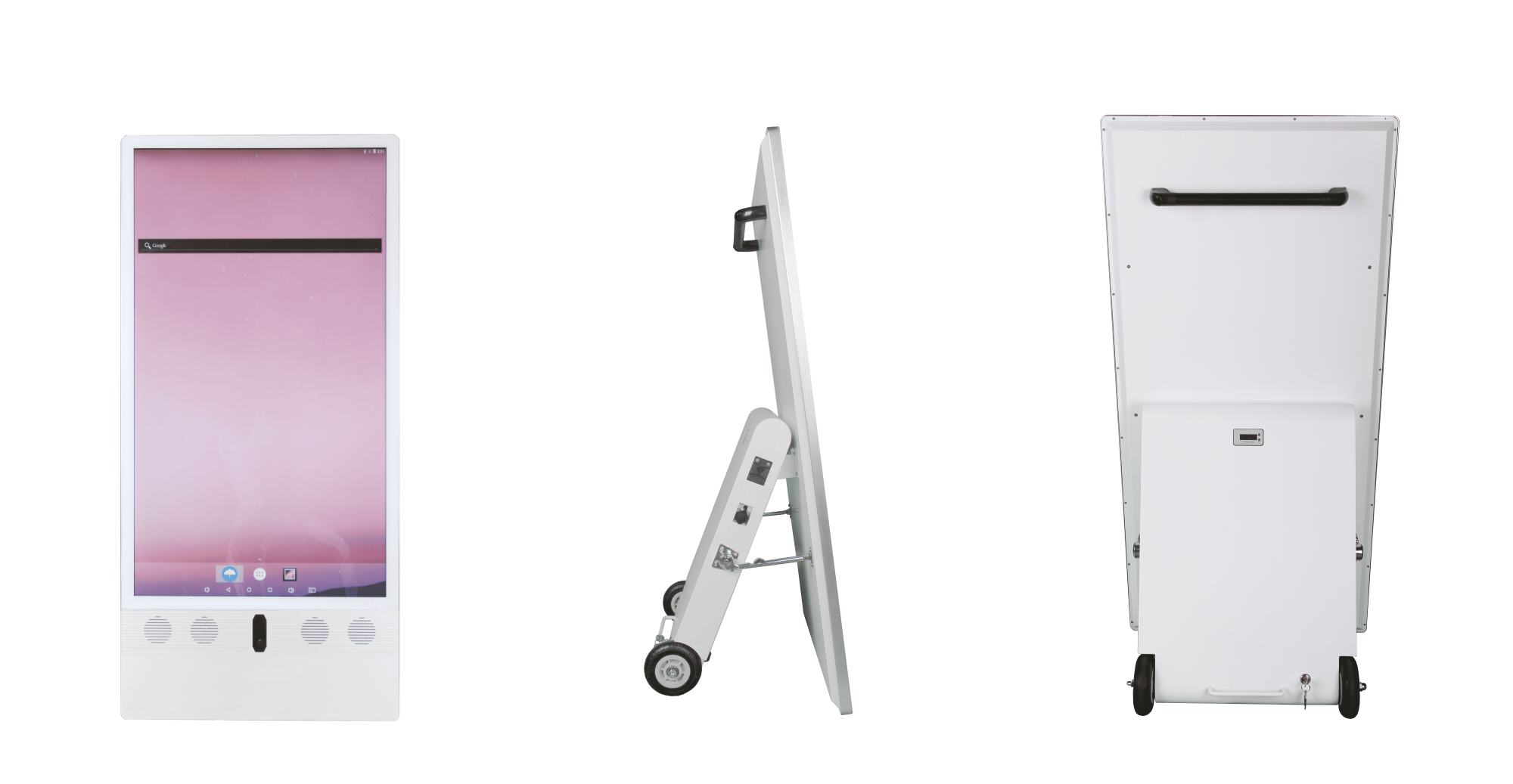

RS430MVF01D01 is a 43 inch LCD display from Risingstar, unlike the general monitors, it has wheels and batterry to become a portable digital signage, people can move it just like a luggage to everywhere you need, in front of the coffee shop or replacing the printing info board.
Risingstar monitors always has far higher brigthness than most of our competitors, for the specific 43-inches we can reached 3000 nits even much higher, more information please searching on our website: www.risinglcd.com

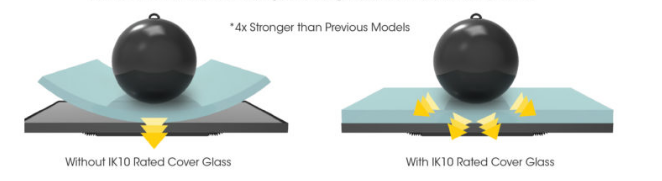

Out of the ordinary: This display is movable and battery, which also means the using environment of it is unstable, that us the reason why we give it IP65 waterproof and IK10 impac protection, fully protect the probably damge during the movment.
Top grade LCD panel: Risingstar has ability making our own design LCD panel, and we purchase A and A+ level Open-cell from LG, BOE, AUO and other famous liquid crystal glasses maker directly, this is the proof to make the high quality displays for each of our customers.
Rugged and unique hosuing: This display has unqiue outershell, it has over 100 holes on the housing to make the air pass through easier, the fans inside will pump them in/out to form a circulation, the heat will follow the circulation and the display can keep working under scorching sunlight.

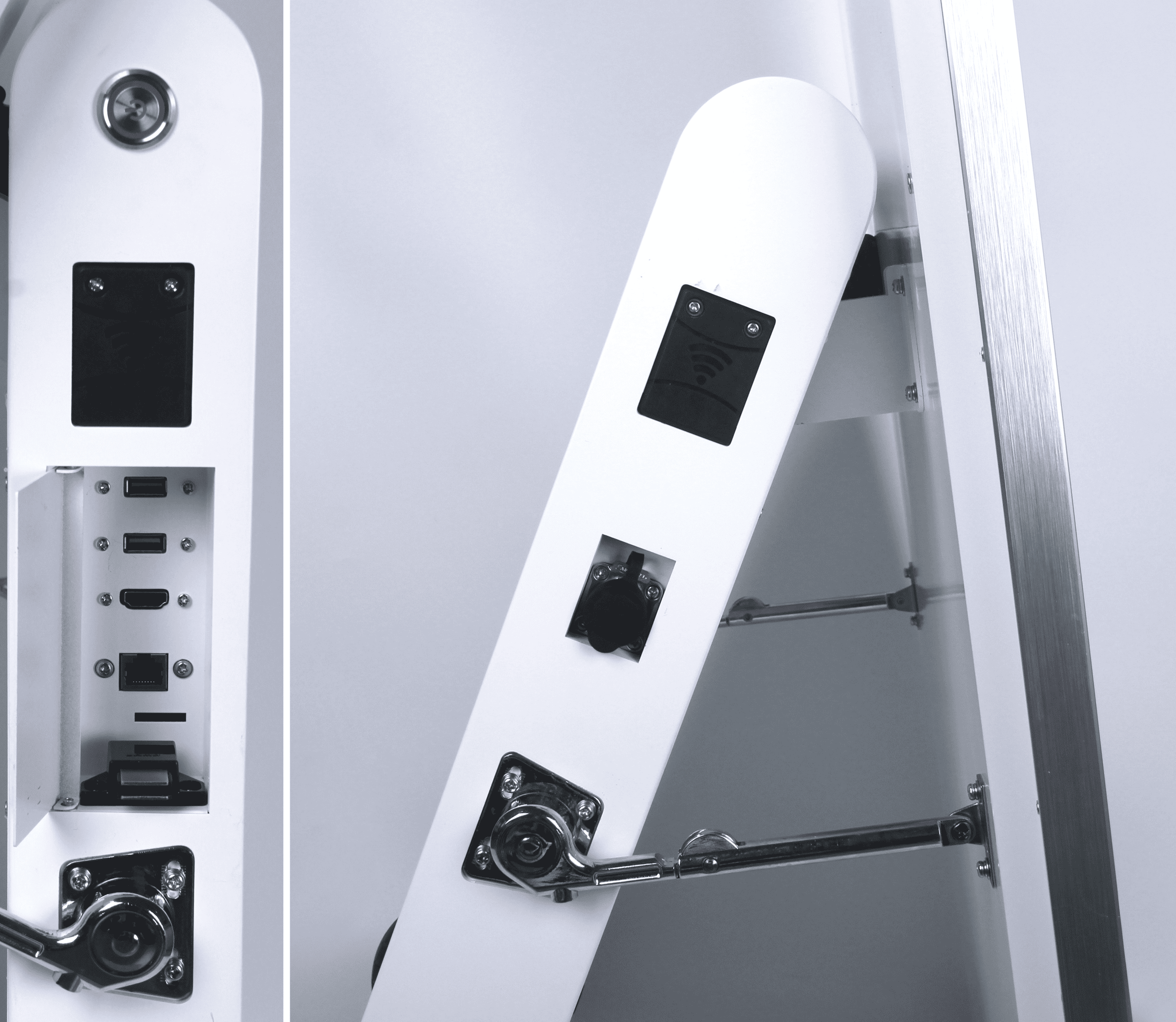

High adaptability electronic: Risingstar has customers from all over the world, EU, US, Asia...using the right plug and adapt different voltage is the basic issue we should figure out for our customers, you do not need worry about this; the possibly OS for the display, we can offer both PC and Android to make you using easier; also the interfaces, HDMI/USB/VGA/DVI/DP/Type-C/RJ45 by your choice, our enegineer will help you found the most suitable motherboard.

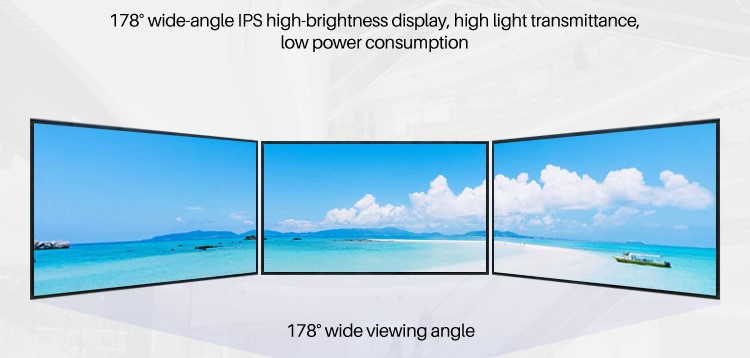

Ultra wide viewing angle: Most of the Risingstar display is IPS screen, which has extremely high viewing angle could reach 178° for both horizontal and vertical direction.
window facing display series:
RS320HNX02D05, outdoor no fans and A/C self dissipition monitor, save the consumption also muted design...
RS320MNX03D01, semi-outdoor and super slim design, the most highest integrated display we ever made...
RS430MNX01D01, classic design, the standard type of 43-inch window facing display...
Items | Specification |
Panel Brand | LG |
Diagonal Size | 43" |
Panel Type | a-Si TFT-LCD |
Resolution | 1920(RGB)×1080 91PPI |
Pixel Format | RGB Vertical Stripe |
Display Area | 1095.84 × 616.41 mm (H×V) |
Outline Size: | 1215.04×738.41×95 mm (H×V×D) |
Surface | Antiglare (Haze 1%), Hard coating (2H). |
Brightness | 1500 cd/m² (Typ.) |
Contrast Ratio | 1400:1 (Typ.) (TM) |
waterproof level | IP65 |
Protection level | IK10 |
Support Color | 1.67B 100% NTSC |
Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
Display Mode | IPS, Normally Black, Transmissive . |
Response Time | 5 (Typ.)(G to G); 8 (Typ.)(MPRT). |
Lamp Type | WLED , 50K hours , With LED Driver |
Frequency: | 60Hz |
Panel Weight | 45.0/47.0Kgs (Typ./Max.) |
Application | Battery mobile digital signage |
Signal Interface | HDMI/ DP / DVI / WIFI / USB |
Input Voltage: | 24V ,110 to 260V (Typ.). |
Operating Temperature | -20 ~ 70 °C |
Storage Temperature | -30 ~ 80 °C |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
