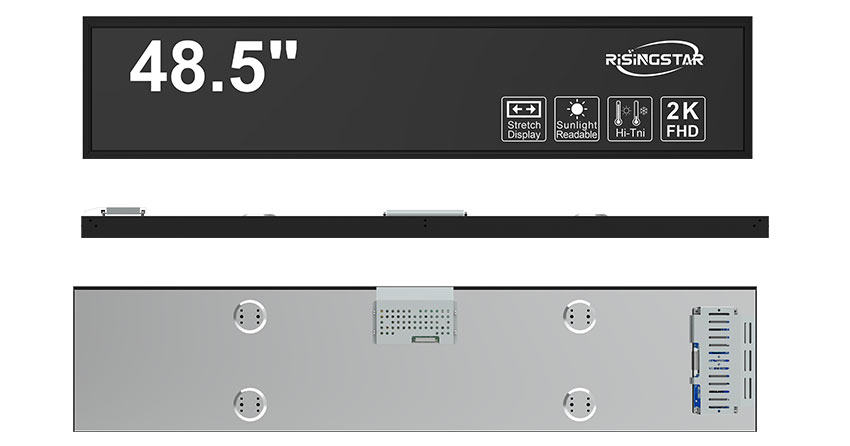

48.5" High Brightness Stretch LCD Panel For Passenger Information
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
Specification
| Item | Specification |
|---|---|
| Screen Diagonal | 48.5 inch |
| Brand | RisingStar |
| Model No. | RS485IVN-GE08 |
| Active Area (mm) | 1209.6 (H) × 226.8 (V) |
| Resolution | 1920 × 360 |
| Physical Size (mm) | 1221 (H) × 252.2 (V) × 33.5 (D) |
| Pixel Arrangement | RGB Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| Contrast Ratio | 4000:1 |
| Brightness (cd/m²) | 500 ~ 5000 nits |
| Response Time | 8 ms (Typ., G→G) |
| Input Voltage | 12.0 V (Typ.) |
| Frame Rate | 60 Hz |
| Viewing Angle | 89/89/89/89 (CR ≥ 10) |
| Weight | 4.47 kg |
| Interface Type | LVDS (2-ch, 8-bit), 51-pin |
| Supported Colors | 16.7M / 1.07B |
| Surface Treatment | Matte (Haze 3%) |
| RoHS Compliance | Yes |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
Description
The RisingStar RS485IVN-GE08, a 48.5-inch stretched-bar a-Si TFT-LCD module, is designed for professional and outdoor digital signage environments requiring long-duration, high-brightness visual performance. With an ultra-wide resolution of 1920×360, deep 4000:1 contrast, and industrial-grade brightness options reaching up to 5000 nits, this model delivers exceptional clarity even under intense sunlight. The matte surface with Haze 3% reduces reflections, ensuring excellent readability in outdoor and semi-outdoor environments.
Built with an efficient 12V system, fast 8ms response, wide 178° viewing angles, and robust temperature endurance from -20 ~ 70 °C, the RS485IVN-GE08 is ideal for harsh or 24/7 operational conditions. LVDS 51-pin interface compatibility allows easy integration with industrial controllers, transportation systems, kiosks, and digital signage players.
Application Scenarios
This 48.5" high-brightness bar-type screen is widely used in:
• Transportation Passenger Information Systems
Railway platforms
Metro and subway stations
Bus terminals
Airport wayfinding and arrival boards
• Outdoor & Semi-Outdoor Digital Signage
EV charging stations
Fuel dispensers
Retail window-facing displays
QSR menu boards
Smart city information poles
• Industrial & Commercial Systems
Factory equipment HMI
Control room dashboards
Casino gaming and entertainment displays
The ultra-wide format, high brightness, and rugged design make it a reliable solution for environments requiring sunlight readability, continuous operation, and space-efficient visuals.
| Screen Diagonal | 48.5 inch |
| Brand | RisingStar |
| Model No | RS485IVN-GE08 |
| Active Area | 1209.6（H）*226.8(V) |
| Resolution | 1920*360 |
| Physical Size | 1221（H）*252.2(V)*33.5(D) |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| Contrast Ratio : | 4000:1 |
| White Luminance ( Center ) | 500~5000 |
| Optical Response Time | 8 (Typ.)(G to G) ms |
| Nominal Input Voltage | 12.0V (Typ.) |
| Frame Rate | 60Hz |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Weight [kg] | 4.47kgs |
| Interface Type | LVDS (2 ch, 8-bit) , 51 pins |
| Support Color | 16.7M/1.07B |
| Surface Treatment | Matte (Haze 3%) |
| RoHS Compliance | RoHS Compliance |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
