Specifications

ManufacturerRisingstarlcd
ModelRS438ENT-N15
Diagonal Size43.8 inch
Typea-Si TFT-LCD, LCD glass
Resolution3840(RGB)×1080
Pixel ArrangementRGB vertical strip
Display Area1071.36(W)×301.32(H)mm
Surface Treatmentmatte (Haze 25%)
Brightness1500 nits
Contrast1000:1
Recommended viewing anglefull
Response Time14 (Typ.)(G to G) ms
Viewing Angle89/89/89/89 (Typ.) (CR≥10)
Display ModeADS, normally black display, transmissive
Transmittance4.2% (Typ.) (including polarizer)
Support Color1.07B
Frame frequency60Hz
Touch Technologyno
Driver ICCOF has been bonded 12 source chips
Interface Type51 pins V-by-One 8 lane, terminal
Operating Temperature-20~70 °C
Storage Temperature-30~80 °C

RS438ENT-N15 is a 43.8-inch LCD display with 1,500 nits brightness, 3840×2160 resolution and 1000:1 contrast ratio. Its operating temperature range is -20 °C to 70 °C.

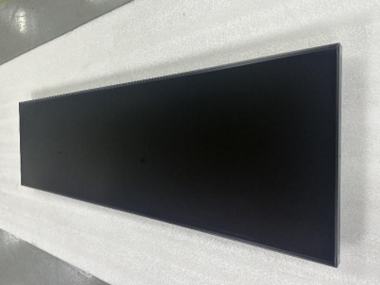

43.8 inch Stretch lcd tft module

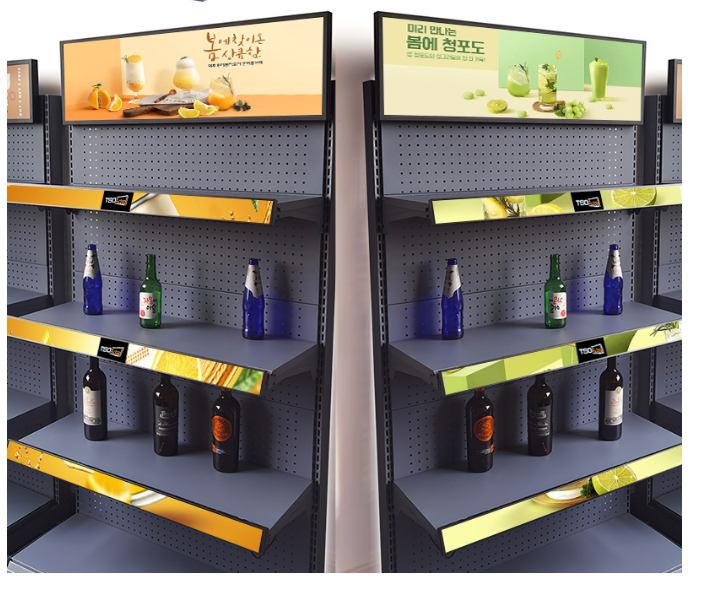

RS438NET-NE15 is a 43.8 inch high brightness ultra wide lcd bar, with BOE a grade open cell, it is with an integral WLED backlight system, With LED Driver, without touch screen. 3840*1080 wide high resolution, Risingstar customized 1500 nits high brightness, 1000:1 contrast ratio, V-by-one 8 lane interface, it features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C , Landscape / Portrait installation ways are all acceptable. 1500 nits High Brightness, WLED Backlight, Life ≥ 70K hours, With LED Driver, Bar Display, Matte, Liquid crystal, Based on its features, it is ideal to be applied to Digital Signage, Outdoor High Brightness, stretched bar etc.

· 43.8 inch ultra wide stretched bar LCD with DLED backlight

· Stretched display (aspect ratio of 16:4.5)

· Brightness of 1500 nits

· Active area: 1071.36(W)×301.32(H) mm

· Resolutions: 3840*1080

· Contrast ratio: 1000:1

· Wide viewing angle of 178° (H), 178° (V)

· Low power consumption

· MTBF: 50,000 hours

#64

Product FAQs

  • It is rated at 1,500 nits (cd/m²) brightness.

  • It uses a 43.8-inch panel, 3840×2160 resolution, 1000:1 contrast ratio.

  • The operating temperature range is -20 °C to 70 °C.

  • Yes. RisingStar is an OEM/ODM manufacturer and accepts customization requirements for volume orders; contact the sales team with your target specification.

  • It adopts 51 pins V-by-One 8 lane terminal interface.

  • The viewing angle is full.

  • Yes. Rated at 1,500 nits, it is a high-brightness panel built for sunlight-readable and outdoor applications.

  • The panel surface treatment is matte (Haze 25%).

  • It uses ADS, normally black display, transmissive.
