    High TNi 110℃ 55" sunlight readable BOE panel

    BOE 55 inch high Tni LCD panel, model no: RV550FHB-N00, it features an operation temperature range of of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C, it is recommends to apply to outdoor digital signage, such as use on airport, station, entertainment industry, medical institution, railway station etc.


    Size:

    55 inch

    Contrast Ratio:

    1000:1

    Brightness:

    2000cd/㎡ risinglcd customized

    Resolution ratio:

    1920*1080

    More size:

    32/43/49/55/65/75/86

    Working Temperature:

    -20 ~ 75 °C,  withstand surface temperatures up to 110°C with no blackening defect

    High TNi 110℃  55"  sunlight readable  BOE panel


    BOE 55 inch high Tni LCD panel, model no: RV550FHB-N00, it features an operation temperature range of of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C, it is recommends to apply to outdoor digital signage, such as use on airport, station, entertainment industry, medical institution, railway station etc.



    RV550FHB-N00 is a 55 inch a-Si TFT-LCD display panel product from BOE, its Active Area(mm)1209.6 × 680.4 (H×V), resolution 1920*1080, antiglare treatment, 1000:1 contrast ratio, and it can achieve 2000 nits high brightness after RisingLCD customized, wide viewing angle 89/89/89/89 (Typ.),16.7M color depth, and 60Hz refresh rate and industrial high TNi operating temperature -20 ~ 70 °C

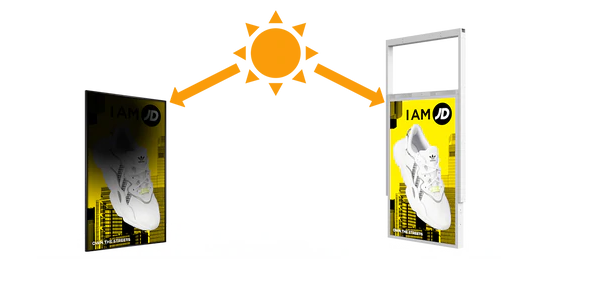

    RV550FHB-N00 uses a special ultra-high brightness panel that can withstand surface temperatures up to 110°C with no blackening defect occurring.

    High TNi 110℃  blacken

    Hot Tags: High TNi 110℃ 55" sunlight readable BOE panel, manufacturers, suppliers, factory, Customized
    Factory   Item NoRS550ENT-N20   panel
    Panel BrandBOE
    Panel ModelRV550FHB-N00
    Size55  inch
    Panel Typea-Si TFT-LCD,   LCM
    Resolution: 1920(RGB)×1080,   FHD, 40PPI
    Pixel FormatRGB Horizontal Stripe
    Display   Area(mm)1209.6 × 680.4 (H×V)
    Outline   Size(mm) 1221.4 × 694.8 × 1.31   (H×V×D)
    Bezel Area479.6*292.2*11.1mm
    Surface   Treatment Antiglare (Haze 1%),   Hard coating (3H)
    Brightness(nits)2000, RisingLCD   customized
    Constrast   Ratio.1000:1
    Aspect   Ratio: 16:9
    View Angle89/89/89/89   (Typ.)(CR≥10)
    Display ModelADS, Normally Black,   Transmissive
    Response Time14 (Typ.)(G to G) ms
    Display Color16.7B  72% NTSC
    Backlight WLED , 50K hours , W/O LED Driver
    Interface TypeLVDS (2 ch, 8-bit) ,   51 pins Connector
    Panel   Weight 2.62±0.5Kgs
    Frame Rate60Hz
    Working   Temperature-20 ~ 75 °C
    Storage   Temperature-30 ~ 80 °C
