32 inch High Tni open frame sunlight readable tft LCD

32 inch High Tni open frame sunlight readable tft LCD

BrandRisingstar
Model name/
Screen size32 "
Screen typeLCD module
Resolution1920(RGB)×1080
Brightness (cd/m²)2500
Overview Specifications Customized Services Support & Shipping

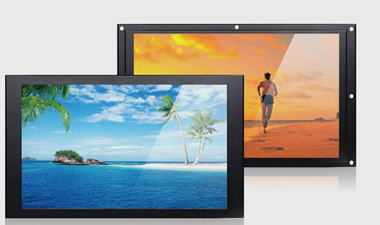

RisingLCD 32 inch High Tni open frame sunlight readable tft LCD, is equipped with BOE industrial high tni screen, 1920*1080 resolution, 16:9 aspect ratio, 1000:1 contrast ratio, and with our customized brightness, 2500-nit, this display can be read even in the direct sunlight.

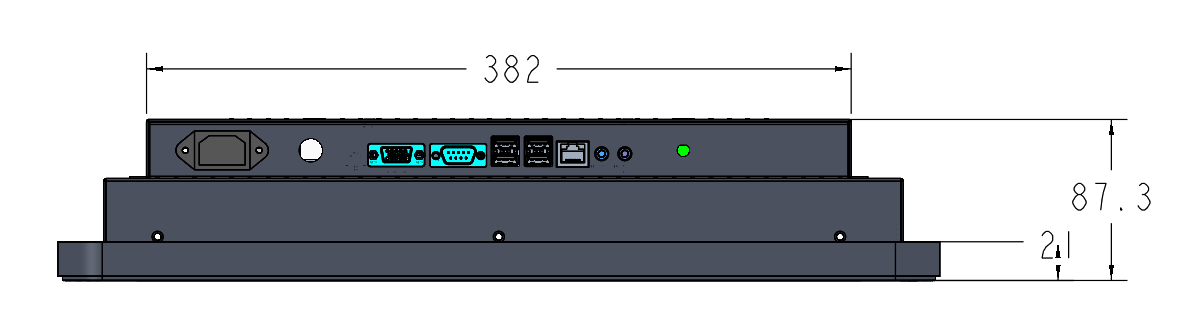

Open frame, slim thickness 87.3mm

1. Thin profile: The open-frame design allows the display to have a thin profile, which makes it suitable for applications where space is limited.

2. Easy integration: The open-frame design makes it easy to integrate the display into different types of products.

3. Cost-effective: Open-frame displays are often more cost-effective than other types of displays because they do not have an additional enclosure.

4. Customizable: Open-frame displays can be customized to meet specific application requirements, such as size, resolution, and brightness.

5. Versatile: They are suitable for a wide range of applications, including gaming machines, industrial equipment, medical devices, and transportation systems.

Sunlight readable

2500 nits, high brightness ensures that the screen remains visible even in direct sunlight, making it easy for people to read important information and messages.

High Tni Industrial -grade.

Application of High TNI LC technology is a matter of great importance for displays operating in strong sunlight conditions. Long-term exposure to strong sunlight is associated with excessive heating of display’s surface (even up to 100oC). When classic LCD display operates in such conditions, there occur black spots on matrix. Thanks to High Tni LC technology, this problem is eliminated. The 32 inch open frame customized digital display screen are combined with high Tni 110°C industrial grade OC, the HD series can operate 24/7

Application

This sunlight readable open frame tft lcd displays are ideal for outdoor digital signage, transportation displays, and other applications where high visibility is essential.

sunlight readable tft application

RS32-OEM 32 inch high brightness display 32 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display
Panel
display screenLCD module
display size32 inches
display area698.4(W)×392.85(H) mm
display resolution1920*1080
Zoom1 6 : 9
brightness, 2500 cd/m2 (center point, t yp ), sunlight readable
contrast1000:1
viewing angle89/89/89/89(Min.)(CR≥10)
Response time8ms ( Gray To Gray )
Uniformity of brightness ≧ 75%
color depth 16.7M
Operation temperature-10 ~ 70 °C ,high tni
system configuration
main chip68676
multimediaH265/H264 video decoding
system versionOSD
Interface
input interfaceUSB * 1 DC*1 hdmi*1 VGA*1
power inputAC 110-220V ~ 50/60Hz
inventory_2

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade

Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.

Protection Rating

Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.

Surface Finish

Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.

Format Architecture

Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

blur_on

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output

Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.

Optical Bonding

Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.

Advanced Coating

Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

settings_input_component

03 / Interface & I/O

Industrial signal and power regulation.

Connectors

Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.

Power Regulation

Wide voltage DC 9V - 36V input with integrated surge and polarity protection.

Sensor Suite

Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

dns

04 / Embedded & Data

Software architecture and data sync.

Operating Systems

Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.

Communication

High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.

Sampling
10-15 Working Days
Standard
SUS316L / IP69K
Certifications
CE / FCC / UKCA
Response
8H Expert Team
verified

01 / Warranty Policy

Industry-leading protection for your investment.

Complete System

3 Years Full Warranty for the complete machine assembly.

LCD Module

1 Year Warranty for the original LCD assembly.

Extended Support

Optional extended warranty programs (up to 5 years) available upon request.

support_agent

02 / Field Support

Expert guidance throughout the product lifecycle.

Remote Assistance

24/7 technical support and configuration guidance via video link or remote access.

On-site Services

Local on-site installation and maintenance available for large-scale deployments.

schedule

03 / Production Timeline

Scalable manufacturing for urgent project schedules.

Sample Prototyping

Verification and custom prototype delivery within 10 Working Days.

Bulk Production

Standard bulk order fulfillment in 15 - 25 Working Days.

public

04 / Global Distribution

Reliable logistics via air, sea, or rail.

Express & Air

Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).

Ocean & Rail

Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
