55 inch high brightness LCD panel, 55XS4J
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
Flexible Warranty Options (1 to 5 Years)
As an OEM/ODM manufacturer, we offer highly customizable warranty plans. Choose the standard coverage for cost-sensitive projects, or opt for our premium 3-5 year extended warranty for mission-critical digital signage deployments.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

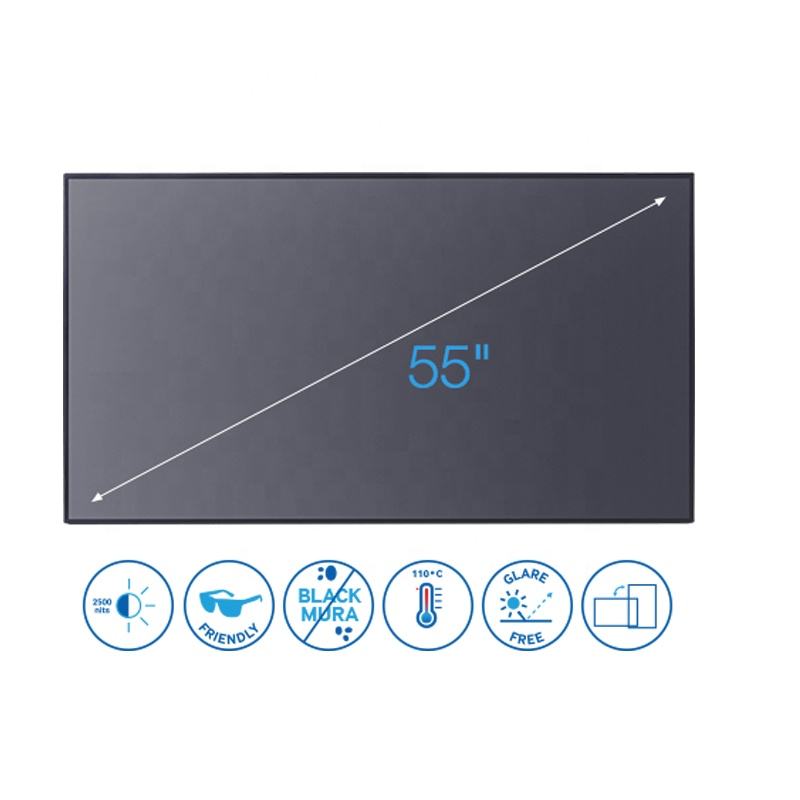

55 inch high brightness LCD panel, 55XS4J General Description
RisingLCD RS550ENT-N35 ultra HD 4k IPS 55inch LG lcd panel, high resolution 3840(RGB)×2160 (UHD) 80PPI, and 16:9 aspect ration, the high bright LED backlight display provides over 3500nits of brightness, and 1300:1 constrast ratio and Transmissivity 5.49%, all that of features that making the LCD panel sunlight readable, it is ideal for the outdoor application.
55 inch high brightness LCD panel, 55XS4J Main Features:
LG original LCD panel
High resolution: 3840*2160
Brightness up to 3500 nits
Self-developed LED backlight technology
4K Full HD resolution.

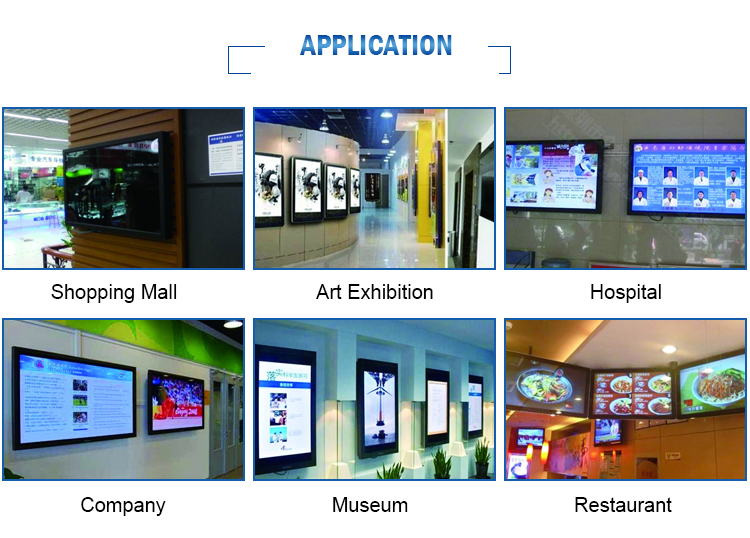

The 4K Ultra HD picture quality ensures great colour and rich details in all possible broadcasting surroundings, ranging from retail stores, to restaurants and office buildings.
With 3500 nits maximum brightness, this window digital signage display captive viewers with superior messaging clarity it make your content vividly stand out in any commercial location.

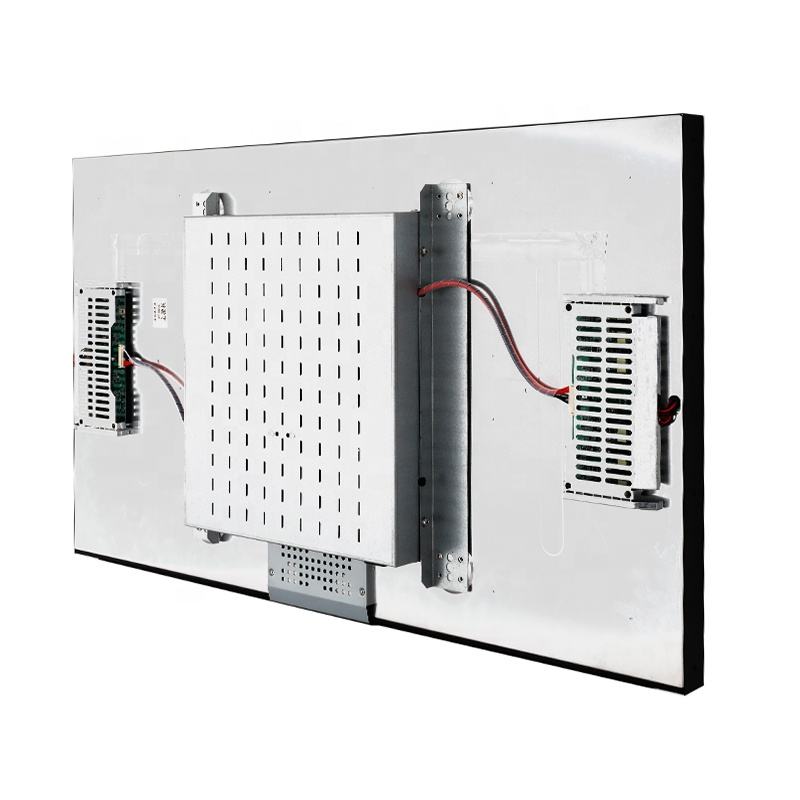

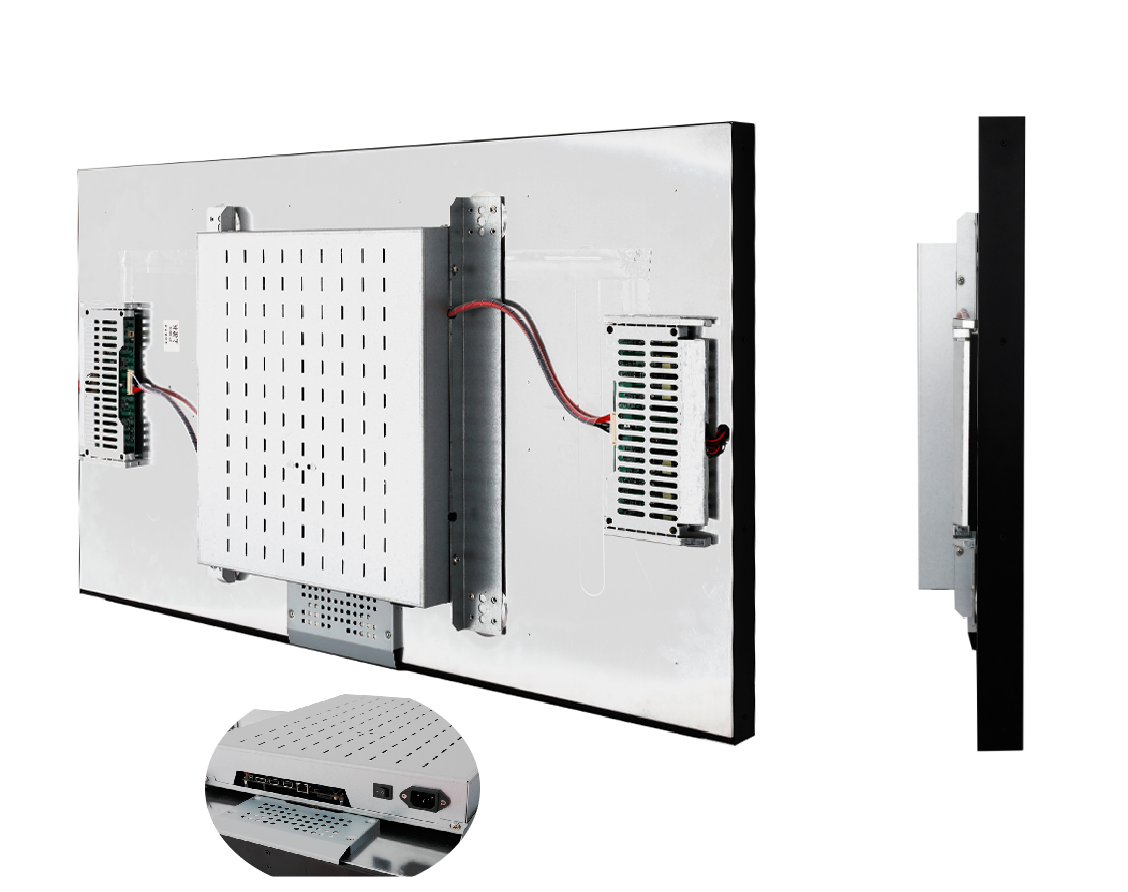

Smart design with bracket design, easily installation.
With mini PC box fixed, clients can buy it directly for their own cases or cabinet.
OEM and ODM are welcomed!
RisingLCD is a professional highlight LCD manufacturer from China, specializes in manufacturing and distributing all types of LCD module, LCD monitors, open frame monitor, outdoor and indoor digital signage and goods are exported all of the world, could customize the products based on the customer needs with a competitive price, RisingLCD is your best choice!
| Item No | RS550ENT-N35 |
| Panel Brand | LG display |
| Panel Item | LC550EQQ-SMA4 |
| Size | 55 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution: | 3840(RGB)×2160 (UHD) 80PPI |
| Pixel Format | RGB Horizontal Stripe |
| Display Area | 1209.6 × 680.4 (H×V) |
| Outline Size | 1221.4 × 694.8 × 1.2 (H×V×D) |
| Bezel Area | --- |
| Surface Treatment | Antiglare (Haze 3%), Hard coating (2H) |
| Brightness | 3500cd/m² RisingLCD customized |
| Constrast Ratio. | 1300:1 |
| View Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Model | IPS, Normally Black, Transmissive |
| Response Time | 6 (Typ.)(G to G)(B to W) ms |
| Display Color | 1.07B |
| Transmissivity | 5.49% (Typ.)(with Polarizer) |
| Backlight | WLED , 50K hours , With LED Driver |
| Touch Screen | Without |
| Panel Weight | 2.50/2.63Kgs (Typ./Max.) |
| Frame Rate | 60Hz |
| Input Voltage | 12V(Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Current State: | In Production |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
