Specifications

Screen Diagonal10.2 inch
Panel Brand KOE
Model NoTX26D208VM0AAA
Active Area 261.12(W)×163.2(H) mm
Pixels1920(RGB)×1080, FHD, 215PPI

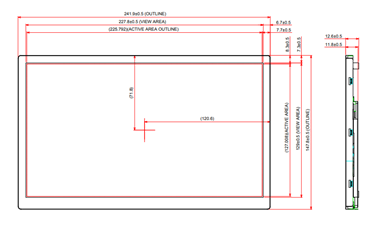

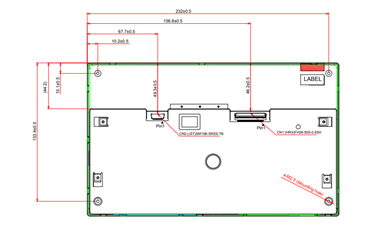

Physical Size241.9(W)×147.8(H)×13.1(D) mm
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode a-Si TFT-LCD, LCM
White Luminance ( Center )1300 cd/m2 (Typ.) [cd/m2 ]
Contrast Ratio1000:1
Optical Response Time25 (Typ.)(G to G) ms
Nominal Input Voltage 3.3V (Typ.)
Frame Rate60Hz
Viewing Angle80/80/80/60 (Typ.)(CR≥10)
Weight [kg] 0.415 kg (Typ.)
Interface TypeLVDS (2 ch, 8-bit), 50 pins, Connector
Support Color 16.7M, 77% DCI-P3
Surface Treatment Hard coating (7H),
RoHS Compliance RoHS Compliance
Operating Temperature-20~70 °C
Storage Temperature-30~80 °C

TX26D208VM0AAA is a 10.2-inch LCD display with 1,300 nits brightness, 1920×1080 resolution and 1000:1 contrast ratio. Its operating temperature range is -20 °C to 70 °C.

The TX26D208VM0AAA is a outdoor high brightness LCD module from original manufacturer KOE that features mechanical outlines dimension 241.9mm (w) x 147.8mm (h) x 12.6mm (d), full HD 1920*1080 resolution, 10.2, Industrial Outdoor ultra brightness 1300 nits, contrast ratio 1000:1, 16.7M , WLED, LVDS and extremely wide temperature range (-40 ~ +85°C). It is perfect for challenging industrial applications.

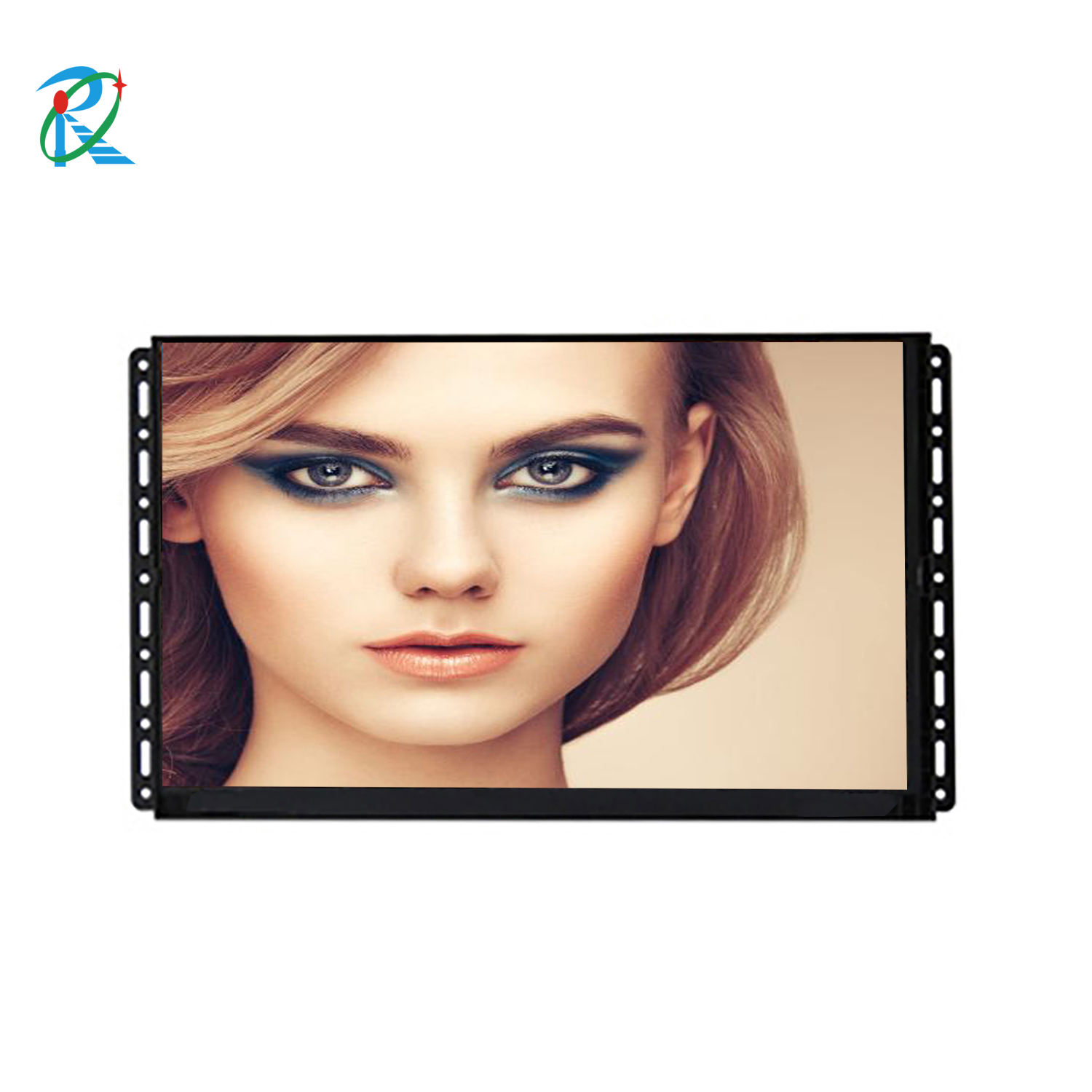

10.2 inch 1300nits sunlight readable LCD module

Main Features:

Full HD resolution: 1920*1080

True Industrial Grade LCD Panel

Long-Life Advanced LED Backlight, over 100,000 Hours Half-Life

1300 nits (cd/m2) sunlight readable Brightness

Wide Operational Operating Temperature -30 ~ 80 °C (-22°F to 185°F)

TX26D208VM0AAA Rugged+ TFT display module can be used in extreme temperature environments and has an operating temperature range of -40 to +85 degrees C.

TX26D208VM0AAA are Suitable to be used in marine instruments, medical equipment, construction and agricultural machinery, forklift trucks, avionics systems and industrial human machine interface (HMI). The 10.2-inch Full HD TX26D208VM0AVA display modules are available now from RisingstarLCD.

TX26D208VM0AAA application_副本

Product FAQs

  • It is rated at 1,300 nits (cd/m²) brightness.

  • It uses a 10.2-inch panel, 1920×1080 resolution, 1000:1 contrast ratio.

  • The operating temperature range is -20 °C to 70 °C.

  • Yes. RisingStar is an OEM/ODM manufacturer and accepts customization requirements for volume orders; contact the sales team with your target specification.

  • It adopts LVDS (2 ch, 8-bit), 50 pins, Connector interface.

  • The power input requirement is 3.3V (Typ.).

  • The viewing angle is 80/80/80/60 (Typ.)(CR≥10).

  • Yes. Rated at 1,300 nits, it is a high-brightness panel built for sunlight-readable and outdoor applications.

  • The panel surface treatment is Hard coating (7H),.

  • It uses a-Si TFT-LCD, LCM.
