47.1 inch Ultra wide Bar LCD display

47.1 inch Ultra wide Bar LCD display

BrandRisinglcd
Model nameRS471LNX01A01-BK
Screen size47.1"
Screen typeIndoor LCD Monitor
Resolution3840(RGB)×160
Brightness (cd/m²)400
Overview Specifications Customized Services Support & Shipping

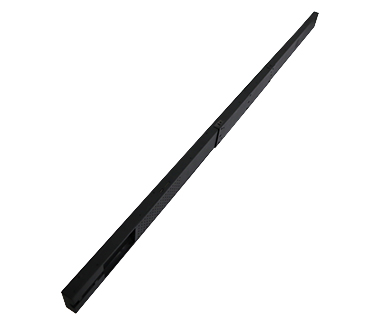

RS471LNX01A01-BK is a special product in our product catalog, it is a sort of bar LCD but with extremely high aspect ratio, such like this 47.1 inch is 24:1, 36 times larger than typical 16:9 display, also 4.5 times larger than the native bar LCD from LG which usually has 16:3 aspect ratio.

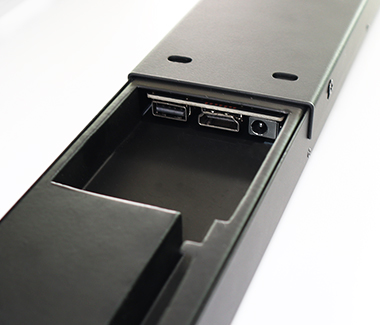

Even this display looks strange, it sitll has motherboard inside as same as the other advertise player in our product list, this give its ability to working without connection from PC, you can input the video or pictures you want by the interfaces like USB and Type-C, or just like an android phone, it has Wi-Fi connection.

Since the special aspect ratio, the primary target for this product is goods shelf in supermarket and shop, to replace the price label or advertise under the goods, but much flexible and harmony to showing the information.

a131e1d89623532

RS471LNX01A01-BK 47.1 inch high brightness display 47.1 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display
Screen Diagonal47.1 inch
Brand Risingstar
Model NoRS471LNX01A01-BK
Active Area1196.16(H) x 49.84(V) mm
Resolution3840(RGB)×160,
Physical Size1209 x 62.9 x 29.2 mm
Pixel ArrangementR.G.B. Vertical Stripe
Display Modea-Si TFT-LCD, LCM
Contrast Ratio :1200:1
White Luminance ( Center )400 cd/m2 (Typ.)  [cd/m2 ]
Optical Response Time9.5 (Typ.)(G to G) ms
Input PowerDC12V
Frame Rate60Hz
Viewing Angle89/89/89/89 (Typ.)(CR≥10)
Weight [kg]TBD
Interface TypeV-by-One 8 lane , 端子 , 51 pins
Support Color1.07B , 72% NTSC
Surface TreatmentAntiglare, Hard coating (3H)
RoHS ComplianceRoHS Compliance
Operating Operating Temperature-20 ~ 70 °C
Storage Temperature-30 ~ 80 °C
inventory_2

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade

Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.

Protection Rating

Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.

Surface Finish

Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.

Format Architecture

Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

blur_on

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output

Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.

Optical Bonding

Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.

Advanced Coating

Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

settings_input_component

03 / Interface & I/O

Industrial signal and power regulation.

Connectors

Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.

Power Regulation

Wide voltage DC 9V - 36V input with integrated surge and polarity protection.

Sensor Suite

Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

dns

04 / Embedded & Data

Software architecture and data sync.

Operating Systems

Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.

Communication

High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.

Sampling
10-15 Working Days
Standard
SUS316L / IP69K
Certifications
CE / FCC / UKCA
Response
8H Expert Team
verified

01 / Warranty Policy

Industry-leading protection for your investment.

Complete System

3 Years Full Warranty for the complete machine assembly.

LCD Module

1 Year Warranty for the original LCD assembly.

Extended Support

Optional extended warranty programs (up to 5 years) available upon request.

support_agent

02 / Field Support

Expert guidance throughout the product lifecycle.

Remote Assistance

24/7 technical support and configuration guidance via video link or remote access.

On-site Services

Local on-site installation and maintenance available for large-scale deployments.

schedule

03 / Production Timeline

Scalable manufacturing for urgent project schedules.

Sample Prototyping

Verification and custom prototype delivery within 10 Working Days.

Bulk Production

Standard bulk order fulfillment in 15 - 25 Working Days.

public

04 / Global Distribution

Reliable logistics via air, sea, or rail.

Express & Air

Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).

Ocean & Rail

Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
