55 inch window facing display with 5000nits high brightness

55 inch window facing display with 5000nits high brightness

BrandLG/AUO/BOE
Model name/
Screen size55"
Screen typeOutdoor LCD Panel
Resolution1920(RGB)×1080
Brightness (cd/m²)1000
Overview Specifications Customized Services Support & Shipping

55 Inch window facing display with 5000nits high brightness

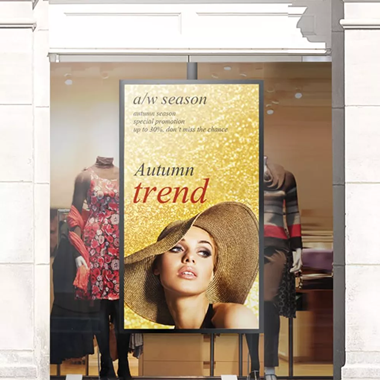

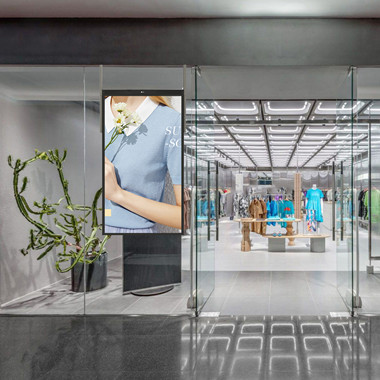

Risingstar 55 inch high brightness window facing display adopts LG original+ grade TFT screen and with Risingstar customized led backlight which increase the brightness to 5000nits, it is designed to be installed in cabinets or shop windows, bus station for outdoor applications.

.

Main features:

High brightness: 5000nits,

Screen Type: LCM a-Si TFT-LCD

Display size: 55 inch (all sizes optional from 21.5 inch to 86 inch)

Wide Viewing Angle (H x V) 178 x 178

Web Monitor control, Android or Window system is optional

Contrast: 1100:1

Auto brightness control

With Android system, and built-in Wifi

Blackening defect free* – IPS LCD panels can withstand temperatures up to 110°C (230°F)!

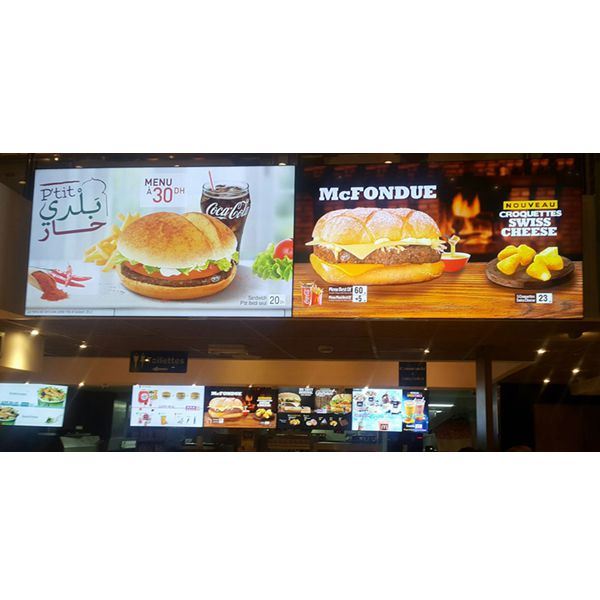

Application: Advertising publish, retail store, shopping mall, All, bus station.

Low power consumption

Full HD 1080p resolution – resolution of 1920 x 1080 full HD provides a super sharp image for easy-to-read text and incredible detail

Automatic Brightness Control – onboard light sensor measures the ambient light in the area and automatically adjusts the image accordingly

24/7 Operation – worry-free round-the-clock operation

Variety of sizes and styles – full range from 32″ to 86″ in standard and narrow bezels

And 55 inch display with the customized 5000nits brightness and wide view angle 178*178, our high brightness window facing display can boasts high visibility even in a bright environment, can delivery the information and let the contents are readable even to those wearing polarized sunglasses.

And screen brightness can automatically adjusts according to the surrounding light, save energy, reduce cost and extend the display life.

RS55-OEM 55 inch high brightness display 55 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display
LCD PanelSize43 inch49 inch55 inch65 inch75 inch
BrandLG/AUO/BOE
Display Area (mm)941*529.41074*6041209*6801428*8031649.6*928
Brightness (nits)1000-5500
Resolution1920*10801920*1080/
3840*2160		1920*1080/
3840*2160		1920*1080/
3840*2160		1920*1080/
3840*2160
Aspect Ratio16:9
Contrast Ratio1300/1
Respond Time6/9 (Typ.)(Tr/Td) ms
View Angle89/89/89/89 (Min.)(CR≥10)
BacklightDLED Backlight
LifeTime50000H
Control SystemIntelligent DimmingSupport
Intelligent Temperature ControlSupport
Remote Control FunctionSupport
Electric ParameterInput VoltageAC110V/220V, 50/60HZ
Maximum Power200W230W265W300W400W
ShellShell MaterialMetal Sheet / Aluminum Alloy
Products Size(mm)986.5*574.5*89.51119*649*901255.5*726.5*901465*840*911701.5*980*90
Weight20kg26kg34kg44kg59kg
Service EnvironmentOperating EnvironmentSemi - Outdoor
Operating Temperature and Humidity-20 ~ 70 °C
MultimediaMotherboardAndroid /PC/ HDMI Driver Board (optional)
IO InterfaceHDMI/VGA/DVI/USB/RJ45
inventory_2

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade

Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.

Protection Rating

Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.

Surface Finish

Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.

Format Architecture

Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

blur_on

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output

Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.

Optical Bonding

Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.

Advanced Coating

Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

settings_input_component

03 / Interface & I/O

Industrial signal and power regulation.

Connectors

Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.

Power Regulation

Wide voltage DC 9V - 36V input with integrated surge and polarity protection.

Sensor Suite

Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

dns

04 / Embedded & Data

Software architecture and data sync.

Operating Systems

Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.

Communication

High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.

Sampling
10-15 Working Days
Standard
SUS316L / IP69K
Certifications
CE / FCC / UKCA
Response
8H Expert Team
verified

01 / Warranty Policy

Industry-leading protection for your investment.

Complete System

3 Years Full Warranty for the complete machine assembly.

LCD Module

1 Year Warranty for the original LCD assembly.

Extended Support

Optional extended warranty programs (up to 5 years) available upon request.

support_agent

02 / Field Support

Expert guidance throughout the product lifecycle.

Remote Assistance

24/7 technical support and configuration guidance via video link or remote access.

On-site Services

Local on-site installation and maintenance available for large-scale deployments.

schedule

03 / Production Timeline

Scalable manufacturing for urgent project schedules.

Sample Prototyping

Verification and custom prototype delivery within 10 Working Days.

Bulk Production

Standard bulk order fulfillment in 15 - 25 Working Days.

public

04 / Global Distribution

Reliable logistics via air, sea, or rail.

Express & Air

Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).

Ocean & Rail

Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
