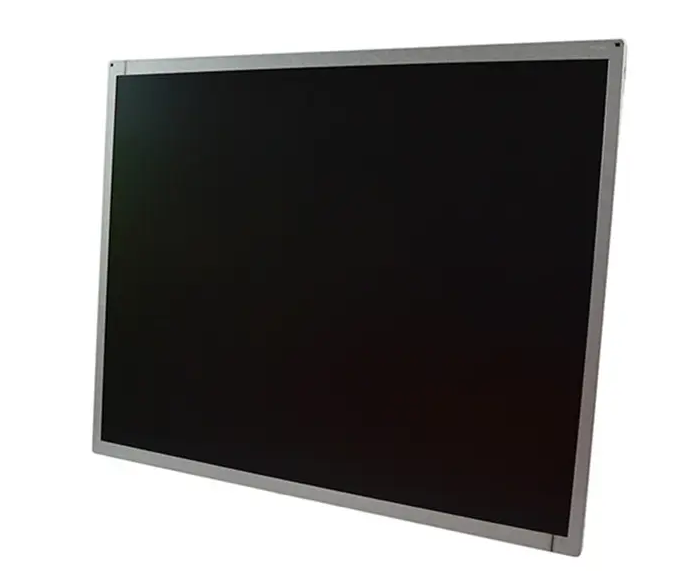

    AUO M170ETN01.1 High Brightness LCD Module
    • AUO M170ETN01.1 High Brightness LCD Module
    • AUO M170ETN01.1 High Brightness LCD Module

    AUO M170ETN01.1 High Brightness LCD Module

    Brand:

    AUO

    Model name:

     M170ETN01.1

    Screen size:

    17"

    Screen type:

    LCM

    Resolution:

    1920(RGB)×1920

    Brightness (cd/m²):

    250-1500


    AUO M170ETN01.1 High Brightness LCD Module, 250 to 1500 cd/㎡. AUO original LCD module, can customize the brightness of LCD module according to customer requirements.

    Brand:              AUO                                                      Model:                 M170ETN01.1

    Diagonal Size:  17.0 inch                                               Type:                    a-Si TFT-LCD, LCM

    Pixel Format:    1280(RGB)×1024  [SXGA]  96PPI          Configuration:      RGB Vertical Stripe

    Active Area:      337.92(H)×270.336(V) mm                   Outline Dim:        358.5(H)×296.5(V) ×10.8(D) mm

    Bezel Area        341.72(H)×274.14(V) mm                     Treatment:           Antiglare, Hard coating (3H)

    Luminance:       250 cd/m² (Typ.)                                   Contrast Ratio:     1000:1 (Typ.) (TM)

    View Direction:  6 o'clock                                              Response Time:    3.8/1.2 (Typ.)(Tr/Td)

    Viewing Angle:  85/85/80/80 (Typ.)(CR≥10)                 Operating Mode: TN, Normally White, Transmissive

    Support Color:  16.7M   72% NTSC                               Light Source:        WLED  [9S4P] , 30K hours , W/O Driver

    Weight:             1.27Kgs (Typ.)                                       Designed For:       Desktop Monitor

    Frame Rate:       60Hz                                                    Touch Panel:             Without

    Interface Type:  LVDS (2 ch, 8-bit) , 30 pins Connector

    Power Supply:   5.0V (Typ.)

    EnvironmentOperating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C


    Hot Tags: AUO M170ETN01.1 High Brightness LCD Module, manufacturers, suppliers, factory, Customized

    Brand:              AUO                                                      Model:                 M170ETN01.1

    Diagonal Size:  17.0 inch                                               Type:                    a-Si TFT-LCD, LCM

    Pixel Format:    1280(RGB)×1024  [SXGA]  96PPI          Configuration:      RGB Vertical Stripe

    Active Area:      337.92(H)×270.336(V) mm                   Outline Dim:        358.5(H)×296.5(V) ×10.8(D) mm

    Bezel Area        341.72(H)×274.14(V) mm                     Treatment:           Antiglare, Hard coating (3H)

    Luminance:       250 cd/m² (Typ.)                                   Contrast Ratio:     1000:1 (Typ.) (TM)

    View Direction:  6 o'clock                                              Response Time:    3.8/1.2 (Typ.)(Tr/Td)

    Viewing Angle:  85/85/80/80 (Typ.)(CR≥10)                 Operating Mode: TN, Normally White, Transmissive

    Support Color:  16.7M   72% NTSC                               Light Source:        WLED  [9S4P] , 30K hours , W/O Driver

    Weight:             1.27Kgs (Typ.)                                       Designed For:       Desktop Monitor

    Frame Rate:       60Hz                                                    Touch Panel:             Without

    Interface Type:  LVDS (2 ch, 8-bit) , 30 pins Connector

    Power Supply:   5.0V (Typ.)

    EnvironmentOperating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
