High Tni 32 inch open frame sunlight readable tft LCD
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
32-Inch High Brightness UHD a-Si TFT-LCD Module – Technical Specifications
| Parameter | Specification |
|---|---|
| Panel Size | 32.0 inch |
| Panel Type | a-Si TFT-LCD, LCD module |
| Resolution | 3840 (RGB) × 2160, UHD, 139 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Display Area | 697.306 × 392.234 mm |
| Surface Treatment | Anti-glare (Haze 25%), Hard coating (3H) |
| Brightness | 500 – 5000 nits |
| Contrast Ratio | 1300:1 (Typ.) |
| Viewing Angle | 89° / 89° / 89° / 89° (Typ., CR≥10) L/R/U/D |
| Operating Mode | IPS, Normally Black, Transmissive |
| Panel Series Options | IPS Hard Screen Series: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich VA Soft Screen Series: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Response Time | 14 ms (Typ., G to G) |
| Display Colors | 1.07B, 99% sRGB |
| Backlight Type | 17S4P WLED, 30,000 hours (without driver) |
| Refresh Rate | 60 Hz (Standard) 120 Hz (60Hz input, MEMC built-in) 120Hz+120Hz (Panel + Backlight) 240 Hz (60Hz input, MEMC built-in) |
| Touch Screen | Not supported |
| Panel Weight | 4.52 kg (Typ.) / 4.75 kg (Max.) |
| Application | Computer monitor, Industrial display |
| Signal Interface | eDP (4 Lanes), HBR2 (5.4G/lane), 30-pin connector |
| Driver Voltage | 10.0 V (Typ.) |
| Operating Environment | Operating: -20 ~ 70 °C Storage: -20 ~ 70 °C |

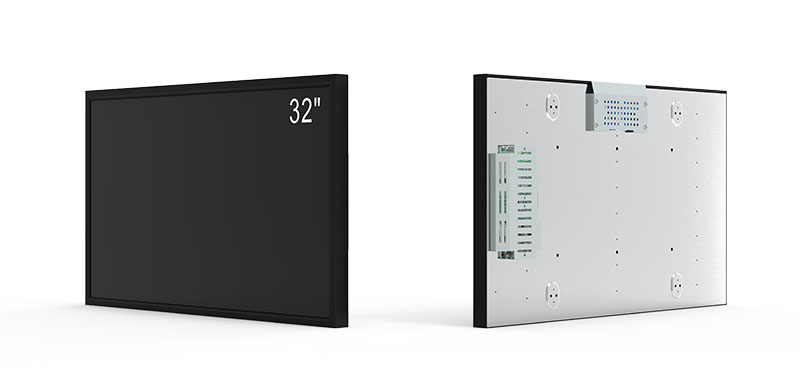

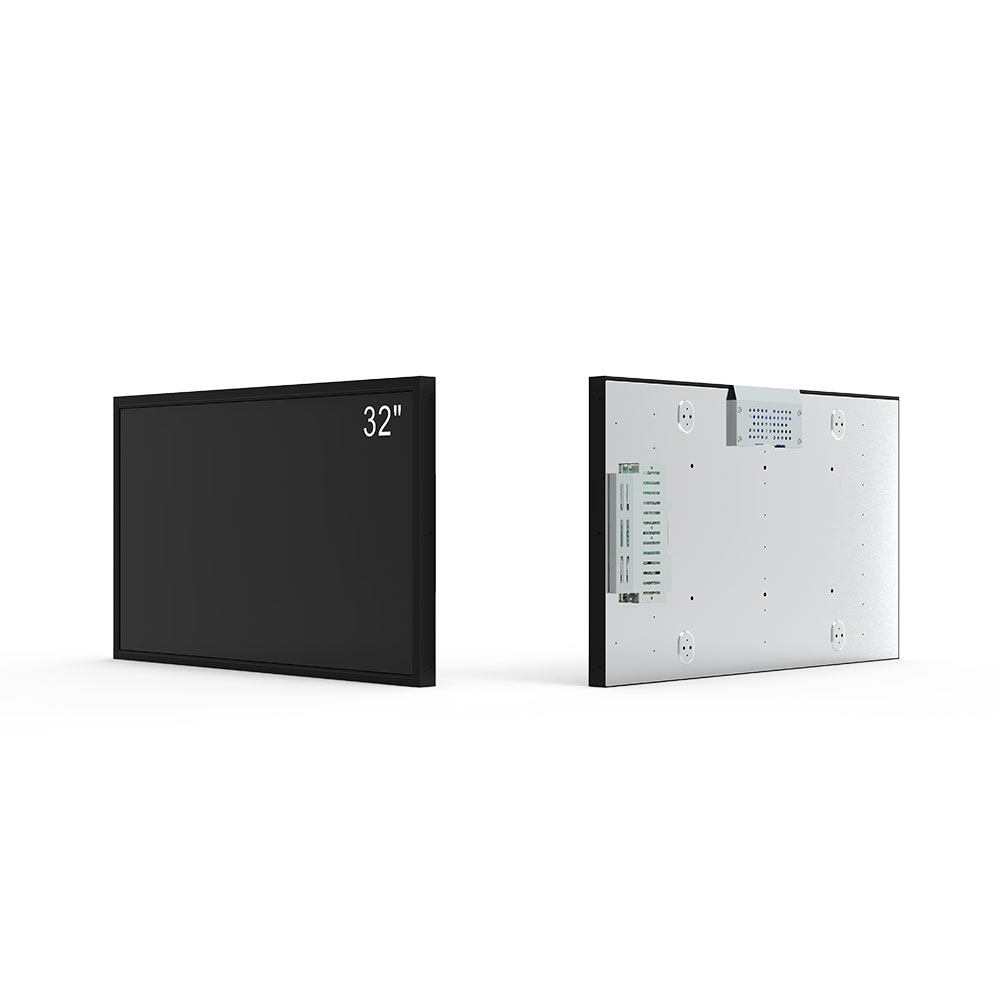

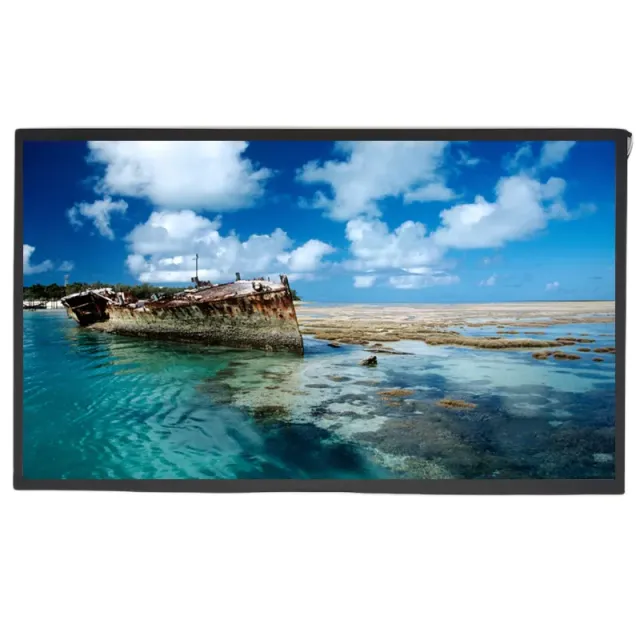

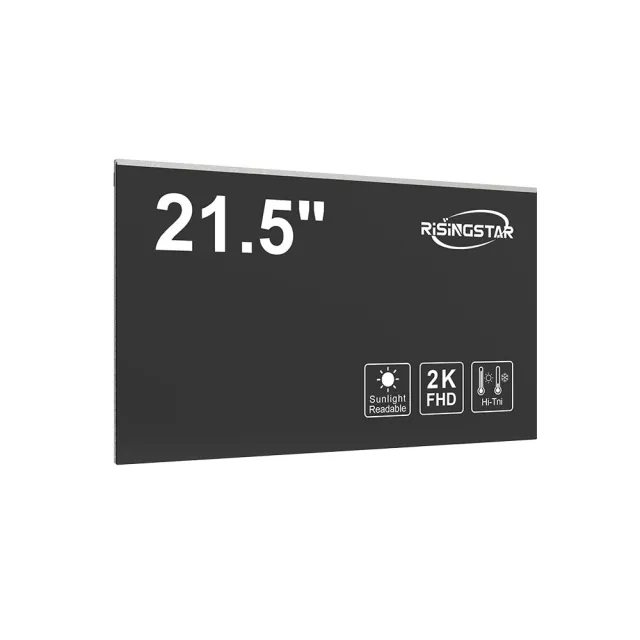

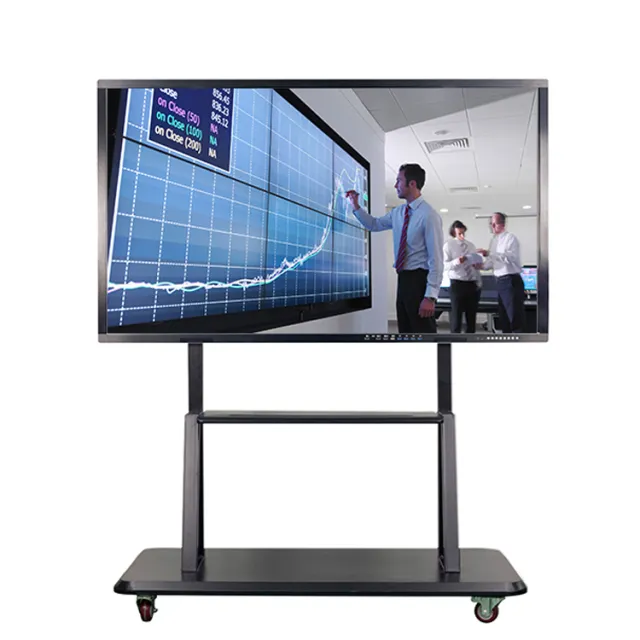

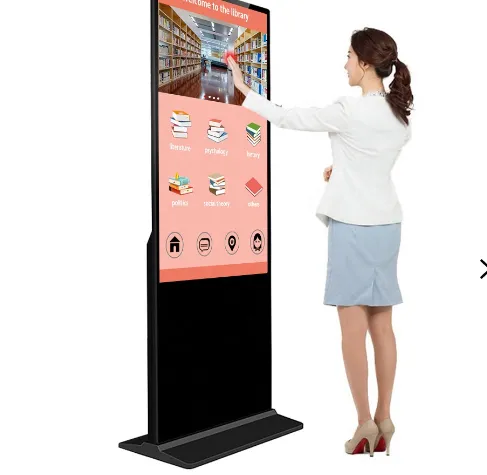

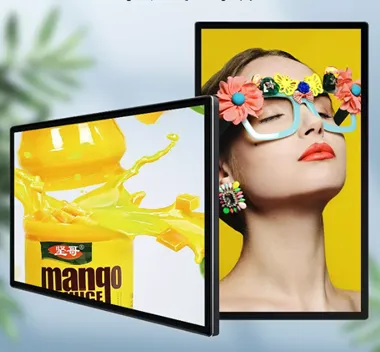

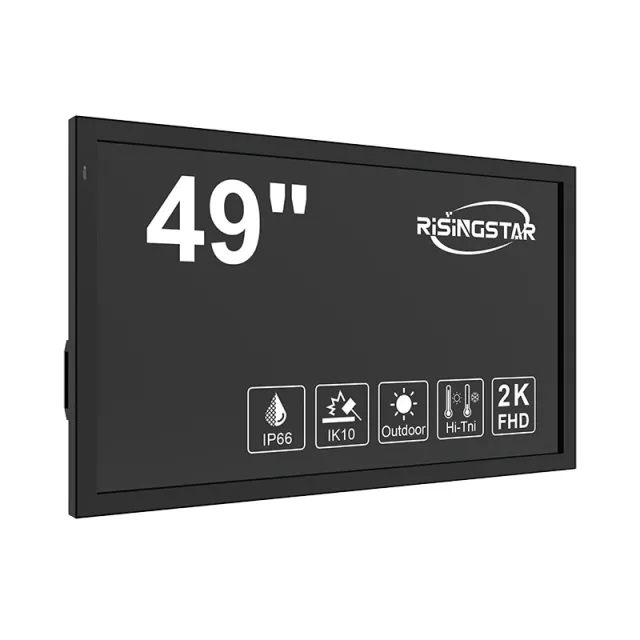

Product examples
Application cases

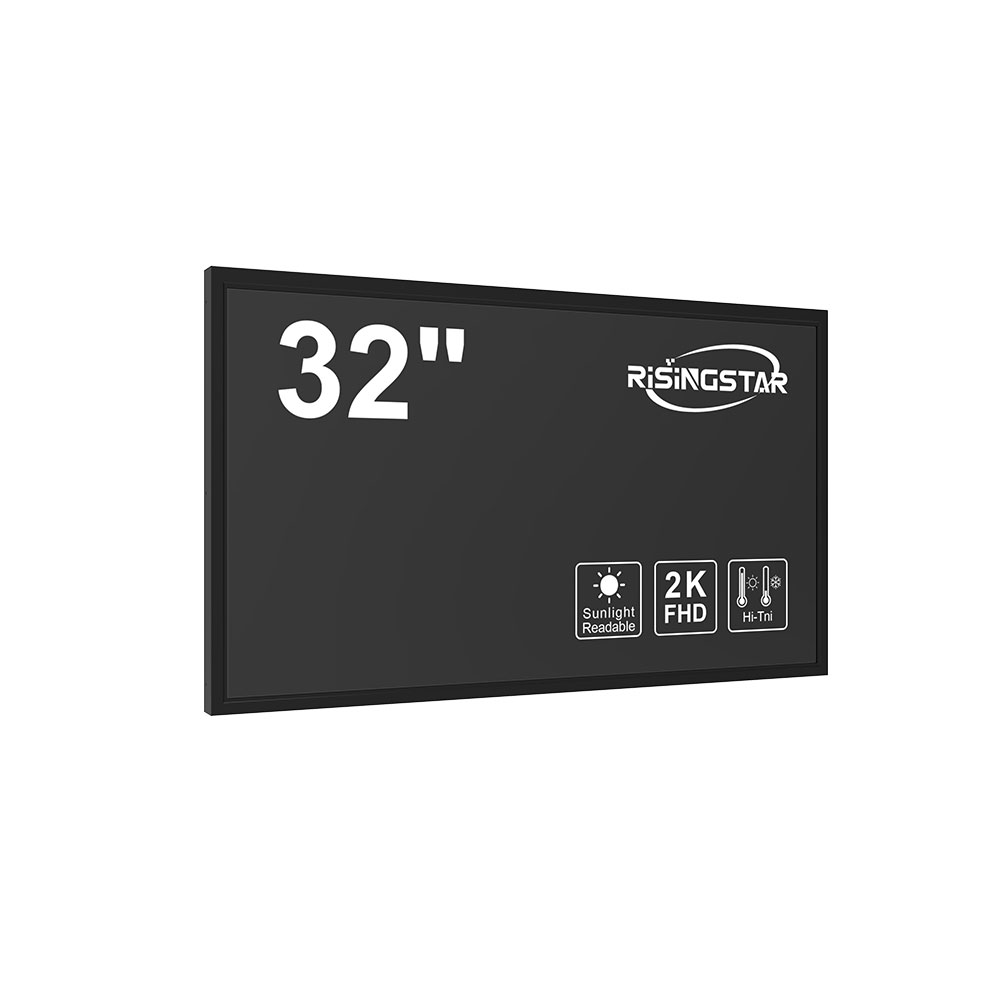

High TNI 32-Inch Open Frame Sunlight Readable TFT LCD – Industrial-Grade Display Solution
The RisingStar High TNI 32-inch Open Frame Sunlight Readable TFT LCD is a premium industrial-grade display designed for outdoor and demanding environments. Engineered with advanced high Transmission Nematic Index (TNI) technology, this panel delivers superior sunlight readability, exceptional brightness, and unmatched visual clarity, making it ideal for applications in digital signage, transportation systems, industrial automation, and interactive kiosks.
Key Features
High Brightness & Sunlight Readable: With adjustable brightness levels up to 5000 nits, the display remains clearly visible even under direct sunlight, reducing glare and enhancing image clarity for outdoor applications.
Advanced High TNI Panel Technology: Optimized for maximum light transmission, the high TNI panel ensures deep contrast and vivid color reproduction, meeting the highest standards for outdoor LCD performance.
Industrial-Grade Reliability: Built with a rugged open-frame aluminum structure, this display withstands extreme temperatures, low humidity, and challenging environmental conditions, ensuring long-term durability and low maintenance.
Wide Viewing Angles & High Contrast Ratio: The display provides 178° viewing angles with a high contrast ratio, enabling clear visuals from any perspective, perfect for public areas and multi-view installations.
Versatile Connectivity: Supports multiple input interfaces including HDMI, DisplayPort, VGA, and LVDS, allowing seamless integration with existing hardware systems.
Touchscreen Options Available: Compatible with projected capacitive (PCAP) or resistive touch solutions, providing flexibility for interactive applications.
Long Lifespan: Designed for 50,000+ hours of operation, minimizing downtime and providing a cost-effective solution for long-term deployment.
Waterproof & Dustproof Options: Suitable for outdoor and semi-outdoor environments with optional IP65-rated enclosures.
Applications
The 32-inch high TNI sunlight readable LCD is widely used by display integrators, OEMs, and resellers in sectors including:

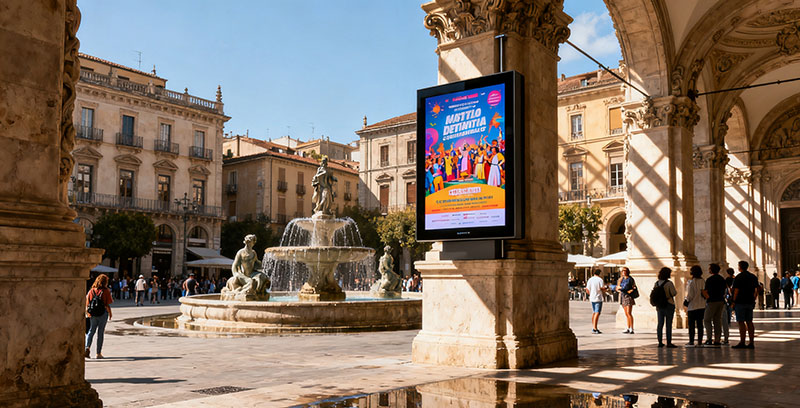

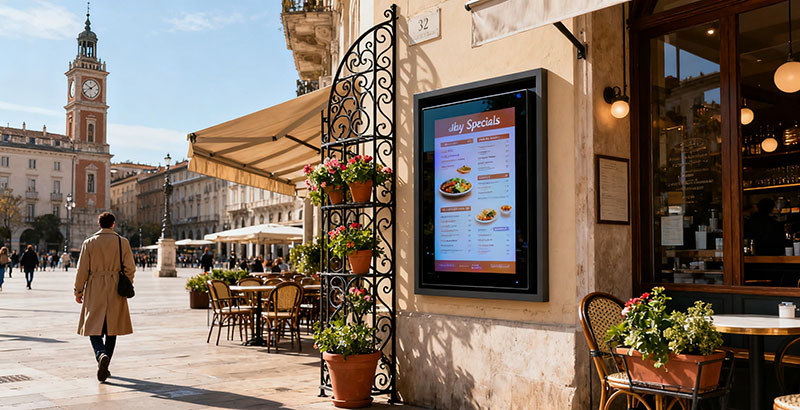

Outdoor Digital Signage: Bus stops, train stations, airports, EV charging kiosks, and retail advertising.
Transportation Passenger Information Systems: Real-time display solutions for metro, railway, and bus terminals.
Industrial & Commercial Automation: Control panels, monitoring systems, and factory-floor digital dashboards.
Interactive Kiosks: Self-service terminals, ticketing machines, and wayfinding displays.
Why Choose RisingStar
Certified Quality & Reliability: Complies with industry standards including CE, RoHS, and ISO certifications, ensuring safe and reliable deployment.
Expert Technical Support: Our experienced team provides guidance for system integration, customization, and deployment, helping integrators and distributors implement solutions efficiently.
Proven Track Record: Successfully deployed in multiple high-traffic public and industrial environments worldwide.
Technical Specifications (High lights)
| Specification | Details |
|---|---|
| Panel Size | 32-inch |
| Panel Type | a-Si TFT LCD, High TNI |
| Resolution | 3840 × 2160 (UHD) |
| Brightness | 500 – 5000 nits (adjustable) |
| Contrast Ratio | 4000:1 |
| Viewing Angle | 178° H / 178° V |
| Response Time | 8ms |
| Operating Temperature | -20 ~ 70 °C |
| Interface | HDMI, DisplayPort, VGA, LVDS |
| Lifespan | 50,000+ hours |
| Touch Option | PCAP / Resistive |
RisingStar High TNI 32-inch Open Frame Sunlight Readable TFT LCD is the professional choice for industrial integrators and resellers seeking a reliable, high-performance display solution capable of delivering outstanding clarity and durability in challenging outdoor environments.
32-Inch High Brightness UHD a-Si TFT-LCD Module – Technical Specifications
| Parameter | Specification |
|---|---|
| Panel Size | 32.0 inch |
| Panel Type | a-Si TFT-LCD, LCD module |
| Resolution | 3840 (RGB) × 2160, UHD, 139 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Display Area | 697.306 × 392.234 mm |
| Surface Treatment | Anti-glare (Haze 25%), Hard coating (3H) |
| Brightness | 500 – 5000 nits |
| Contrast Ratio | 1300:1 (Typ.) |
| Viewing Angle | 89° / 89° / 89° / 89° (Typ., CR≥10) L/R/U/D |
| Operating Mode | IPS, Normally Black, Transmissive |
| Panel Series Options | IPS Hard Screen Series: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich VA Soft Screen Series: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Response Time | 14 ms (Typ., G to G) |
| Display Colors | 1.07B, 99% sRGB |
| Backlight Type | 17S4P WLED, 30,000 hours (without driver) |
| Refresh Rate | 60 Hz (Standard) 120 Hz (60Hz input, MEMC built-in) 120Hz+120Hz (Panel + Backlight) 240 Hz (60Hz input, MEMC built-in) |
| Touch Screen | Not supported |
| Panel Weight | 4.52 kg (Typ.) / 4.75 kg (Max.) |
| Application | Computer monitor, Industrial display |
| Signal Interface | eDP (4 Lanes), HBR2 (5.4G/lane), 30-pin connector |
| Driver Voltage | 10.0 V (Typ.) |
| Operating Environment | Operating: -20 ~ 70 °C Storage: -20 ~ 70 °C |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
