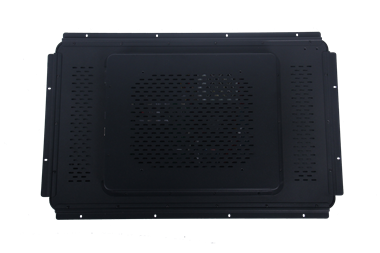

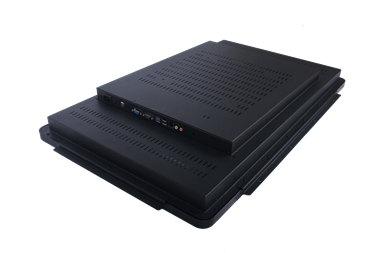

Open frame high tni sunlight readable tft LCD

Open frame high tni sunlight readable tft LCD

RisingStar® 15.6 inch RS156-OEM sunlight readable display. 2000 nits high brightness, 1920(RGB)×1080 resolution, Hi-Tni solar-resilient for 24/7 outdoor use.

OEM / ODM Manufacturer

Factory Direct

Order & Lead Time

Sample Order 1 Unit MOQ
Bulk Order 10+ Units Tiered Discounts

Need 50+ units? for framework agreements.

Global Shipping Options

Samples ship in ~10 working days; Bulk orders in 15-25 working days.

  • Express: DHL/FedEx door-to-door delivery (5-7 days)
  • Sea Freight: Cost-optimized bulk shipping (30-45 days)
  • Rush Orders: Available upon request for urgent projects

1-3 Year Standard Warranty

3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.

All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

Get Started

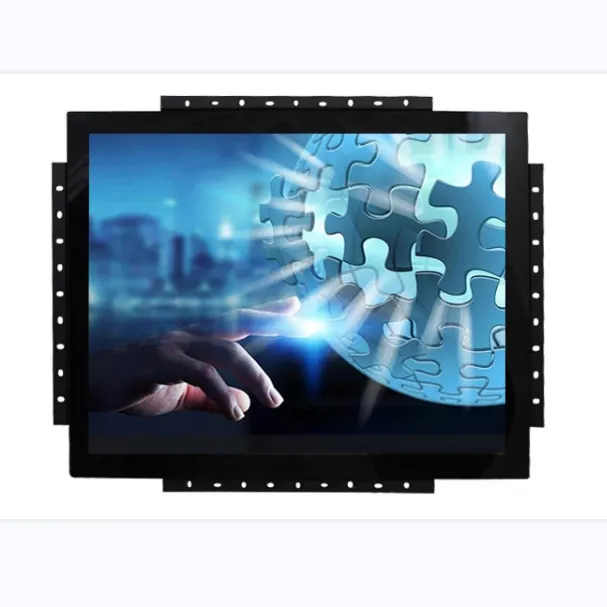

RisingLCD can offer you the open frame tft LCD, size from 15.6 inch to 49 inch, and with the sunlight-readable high-nit TFT LCD display, 1000 nits to 3500 nits brightness that it can be easily viewed in bright outdoor conditions, such as direct sunlight. This makes it ideal for outdoor digital signage, transportation displays, and other applications where high visibility is essential.

These open frame tft LCDs are with thin body design, high resolution, fast response and vivid color, the display is a light-weight, bright display designed for outdoor device,

Open frame

1. Thin profile: The open-frame design allows the display to have a thin profile, which makes it suitable for applications where space is limited.

2. Easy integration: The open-frame design makes it easy to integrate the display into different types of products.

3. Cost-effective: Open-frame displays are often more cost-effective than other types of displays because they do not have an additional enclosure.

4. Customizable: Open-frame displays can be customized to meet specific application requirements, such as size, resolution, and brightness.

5. Versatile: They are suitable for a wide range of applications, including gaming machines, industrial equipment, medical devices, and transportation systems.


High brightness sunlight readable display

The customized 1000 nits to 3500 nits, high brightness ensures that the screen remains visible even in direct sunlight, making it easy for people to read important information and messages.



Panel
display screenLCD module
display size15.6inch/18.5 inch/21.5 inch/23.6 inch/32 inch/43 inch
display areana
display resolution1920*1080/1366*768
Zoom1 6 : 9
brightness, 1000 to 3500 cd/m2 (center point, t yp ), sunlight readable
contrast5000:1
viewing angle89/89/89/89(Min.)(CR≥10)
Response time8ms ( Gray To Gray )
Uniformity of brightness ≧ 75%
color depth 16.7M
Operating Temperature-20 ~ 70 °C
system configuration
main chip68676
multimediaH265/H264 video decoding
system versionOSD
Interface

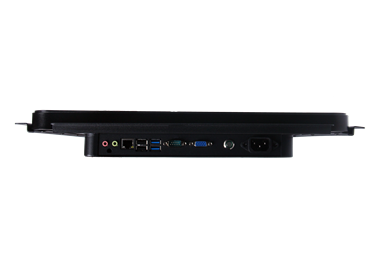

input interfaceUSB * 1 DC*1 hdmi*1 VGA*1
power inputAC 110-220V ~ 50/60Hz
RS156-OEM 15.6 inch high brightness display 15.6 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Protection Rating Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Surface Finish Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Format Architecture Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

03 / Interface & I/O

Industrial signal and power regulation.

Connectors Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Power Regulation Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Sensor Suite Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology.
Optical Bonding Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio.
Advanced Coating Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

04 / Embedded & Data

Software architecture and data sync.

Operating Systems Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
Communication High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
