32 Inch Public Parking Lot EV Charging Station Display
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
Flexible Warranty Options (1 to 5 Years)
As an OEM/ODM manufacturer, we offer highly customizable warranty plans. Choose the standard coverage for cost-sensitive projects, or opt for our premium 3-5 year extended warranty for mission-critical digital signage deployments.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
Full Specifications
| Parameter | Value |
|---|---|
| System Category | LCD/OLED/EPD Panel Module > TFT-LCM LCD Module |
| Brand | RisingStar |
| Series | 32-inch |
| Model | RS320HVN-ND10 |
| Key Description | 32-inch, 1920×1080, 1000 cd/m², 4000:1 contrast ratio; Industrial high-brightness LCD screen for smart bus station ads, scenic spot advertising displays, outdoor high-brightness LCD screens, vending machine screens |
| Product Category | Graphic Type |
| Product Labels | Color TFT LCD Screen, High-Brightness LCD Screen, Sunlight Readable LCD Screen, IPS LCD Screen |
| Applications | Digital Signage |
| Panel Type | a-Si TFT-LCD |
| Product Composition | LCD Module |
| Panel Size | 32-inch |
| Resolution | 1920×1080 |
| Aspect Ratio | 16:9 (W:H) |
| Physical Shape | Flat Rectangular |
| Display Area (A.A) | 698.4 (W) × 392.85 (H) mm |
| Overall Dimensions | 731.96 (W) × 431.4 (H) mm |
| Max. Thickness | 59.5 mm |
| LCD Family | IPS Hard Screen |
| Polarizer Type | Transmissive |
| Panel Brightness | 1000 cd/m² (Typ.) |
| Contrast Ratio | 4000:1 (Typ.) |
| Viewing Angle (L/R/U/D) | 89°/89°/89°/89° |
| Viewing Direction | Full Viewing Angle |
| Display Colors | 16.7M (16.7 million colors) |
| Backlight Type | WLED |
| Signal Interface | LVDS |
| Signal Pins | 92 Pins |
| Touch Support | Non-Touch |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
Rising Star Pioneering Global Manufacturing Technology for

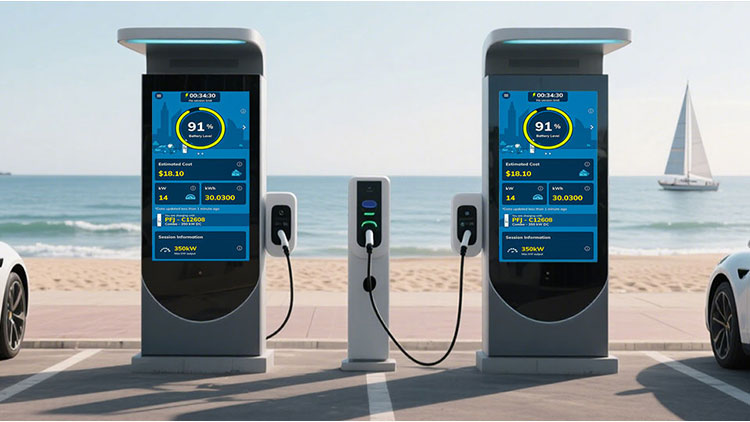

32-Inch EV Charging Station Digital Display: Elevate Your Charging Experience with Ultra-Clear Intelligence
Transform your EV charging stations into customer magnets with our 32-inch Ultra-HD Digital Display—designed to captivate users worldwide through cutting-edge visual performance and smart functionality. Equipped with a full HD anti-glare touchscreen, this large-format display guarantees crystal-clear visibility under direct sunlight or dim lighting, ideal for high-traffic public charging hubs, commercial complexes, and retail destinations.
Key Advantages for Charging Station Manufacturers:
1. Customizable Sizing (10.1"–110"): Tailor displays to fit any charging station design, from compact urban units to premium highway installations.

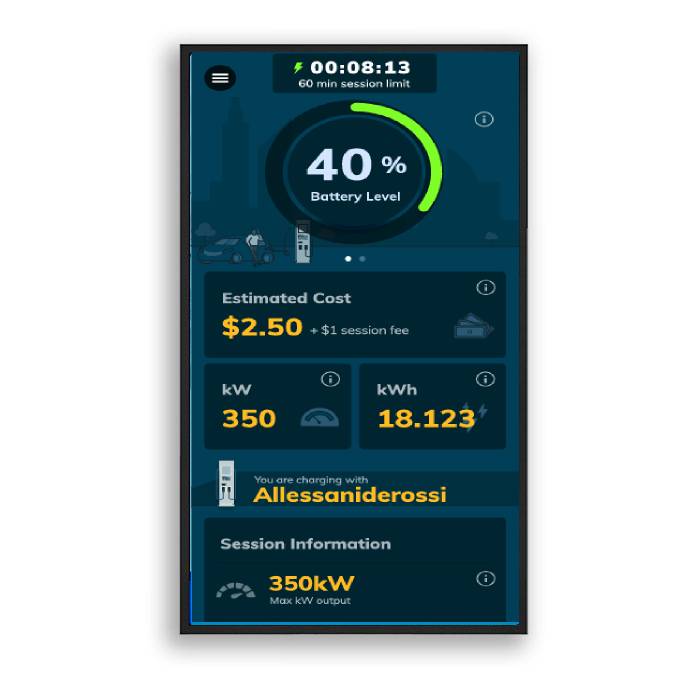

2. High-Resolution Clarity: Vibrant 32-inch screen showcases real-time charging data, payment interfaces, and branded content with unmatched sharpness.
3. Weatherproof & Rugged Design (IP65-rated): Built to endure extreme temperatures, dust, and moisture for year-round reliability.
4. Smart User Interface: Responsive touch controls with adaptive brightness ensure glare-free, intuitive operation across multilingual settings.
Why Partner with us?
1. Bulk Order Efficiency: Fast production cycles and competitive pricing for large-scale deployments.
2. OEM/ODM Support: Custom branding, software, and hardware adaptations to differentiate your products.
3. Certified Quality: CE, RoHS, and ISO-certified manufacturing for global market compliance.
4. Upgrade your charging solutions with a display that blends innovation, durability, and user appeal—rank higher in search 5. results for terms like "large EV charging display" or "commercial charging station monitor.
Specially designed to provide a perfect solution for EV Charging Station Digital Display
A+ grade wide temperature LCD panel
Normal operation in an environment of 24H -20 ℃ to 80 ℃.

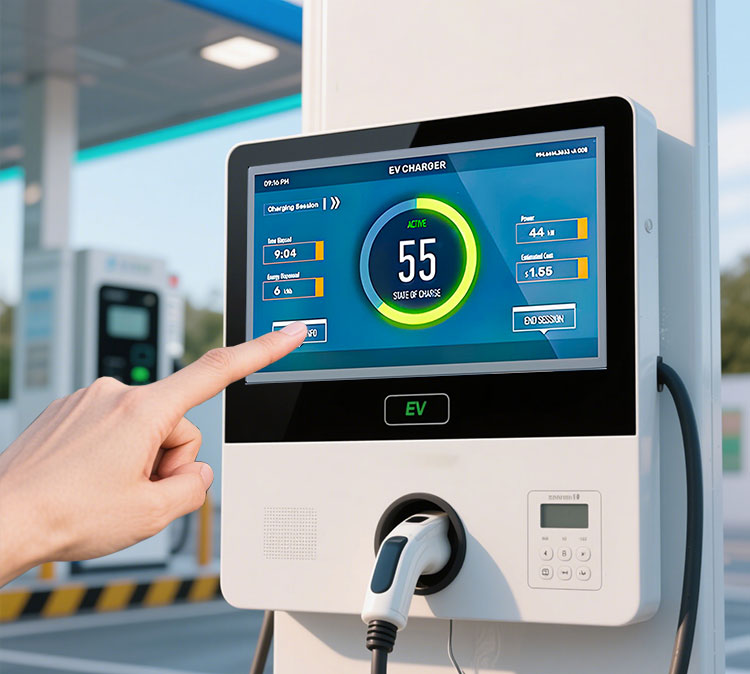

Designed for electric vehicle charging stations, this touchscreen responds instantly to the lightest touch, featuring multi-touch capability and a dustproof, waterproof design. Its anti-glare display ensures crystal-clear visibility even under direct sunlight, enabling effortless navigation, real-time charging monitoring, and instant payment processing
Optically bonded IK10 tempered glass effectively resists violent impacts
Having multiple national patent certificates
Customized LCD screen sizes for various electric vehicle (EV) charging stations
10.1 inches to 110 inches, please contact info@risinglcd.com
| Type | Size | Brightness |
|---|---|---|
| LCD module | 10" to 120" | 500 to 5000 nits |
| outdoor monitor | 32" to 75" | 500 to 5000 nits |
| waterproof monitor | 32" to 75" | 500 to 5000 nits |
| bus stop display | 21.5" to 86" | 500 to 5000 nits |
| window display | 43" to 75" | 500 to 3000 nits |
| double-sided display | 10" to 88" | 500 to 3000 nits |
| stretch display | 32" to 75" | 500 to 5000 nits |
| outdoor TV | 43" to 86" | 500 to 3000 nits |
| terrace TV | 10.1" to 86" | 500 to 3000 nits |
| touch monitor | 55" to 86" | 500 to 2500 nits |
| interactive screen | 43" to 86" | 500 to 2000 nits |
| battery Mobile monitors | 43" | 500 to 2000 nits |
| circular monitors | 23.6" | 500 to 3000 nits |
| mirror display | 21.5" to 65" | 500 to 1500 nits |
OEM / Customized Services
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |

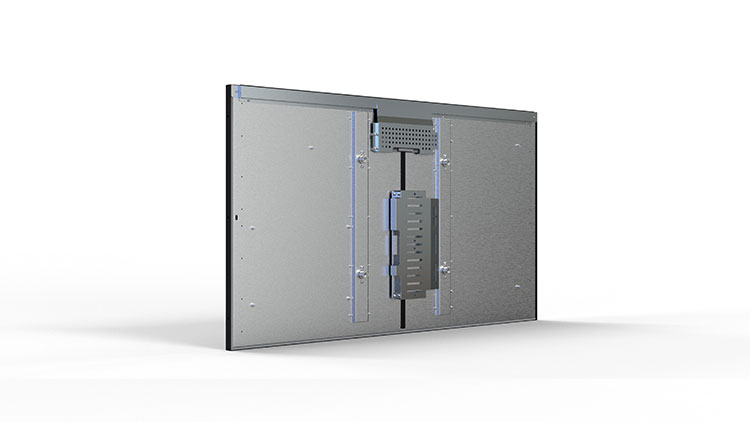

| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
