55 inch 3000 nits high brightness window facing display
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
The RS550MN0-T is 55 inch commercial LCD, with high brightness 3000 nits, it producessharp images, crisp text and lifelike colors. The Direct Type LED backlight technology ensures high reliabilityand low power consumption, suitable for outdoor application, kiosk, digital signage in retail stores,conference rooms, broadcast studios, public information.

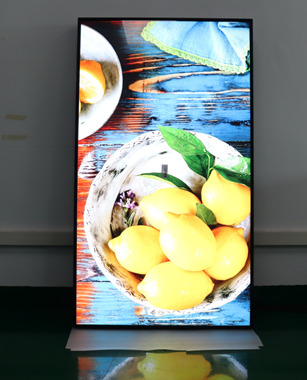

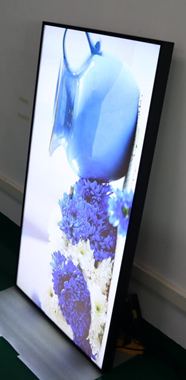

55 inch window facing display Key Features
Ultra thin bezel
High brightness 3000nits
LED Backlight
Wide Viewing Angle of 178°(H), 178°(V)
Operation Temperature (0 ˚C~50˚C)
Low Power Consumption
BL MTBF: 50,000 hours
Risingstar can offer you the high brightness window facing display, size from 32 inch to 98 inch, and brightness can custom as you like from 1000 nits to 5000 nits. with VESA mount, so you can assemble to wall easily.
Model Name: RS550MN0-T
Description: 55” TFT LCD, 3000nits LED Backlight, 3840x2160/1920*1080
Screen Size: 55”
Display Area (mm): 1209.6(H) x 680.4(V)
Brightness : 3000 cd/m 2
Resolution : 3840x2160/1920*1080
Aspect Ratio : 16 : 9
Contrast Ratio: 1200 : 1
Pixel Pitch (mm): 0.105(H) x 0.315(V)/0.210(H)*0.630(V)
Viewing Angle: 178°(H),178°(V)
Color Saturation (NTSC) : 74%
Display Colors: sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Response Time (Typical): 8ms
Panel Interface: LVDS
Input Interface: HDMI, DP (Customizable)
Input Power: AC100~240V
Power Consumption: 400W
OSD Control: Brightness, Color, Contrast, Auto Turing, H/V Position…etc
Dimensions (mm): 1255.5 x 726.4 x 89.5MM
Mounting: 400x400mm
Weight (Net): TBD
Operating Temperature : 0 ˚C ~ 50 ˚C
Storage Temperature: -10 ˚C ~ 60 ˚C
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
