43 inch ultra thinner window facing display with 2500 nits brightness
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

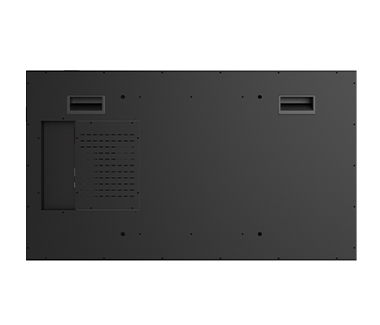

RS430MNX03D01 is a 43 inch outdoor digital signage from Risingstar, the original type of this product is rhe classic Risingstar window facing display RS430MNX01D01, this new modified type remove the electronic devices box(motherboard, fans, power board etc.) on the backside of the display, all those devices now hiding inside the display, make the whole display looks much regular.
Risingstar monitors always has far higher brightness than most of our competitors, for the specific 43-inches we can reached 4000 nits even much higher, more information please searching on our website: www.risinglcd.com
Size (inch) | 21.5 | 32 | 43 | 49 | 55 |
Model number | RS215MNX01D01 | RS320HNX02D05 | RS430MNX03D01 | RS490MNX01D01 | RS550MNX01D01 |
Brightness (cd/m2) | 1000 | 3000 | 2500 | 2000 | 3000 |
Resolution (pixels) | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 /3840*2160 | 1920*1080 /3840*2160 |
Power (Watt) | 80 | TBD | |||
Opreating temperature | -20 ~ 70 °C | -20 ~ 70 °C | -20 ~ 70 °C | -20 ~ 70 °C | -20 ~ 70 °C |
Top grade LCD panel: Risingstar has ability making our own design LCD panel, and we purchase A and A+ level Open-cell from LG, BOE, AUO and other famous liquid crystal glasses maker directly, this is the proof to make the high quality displays for each of our customers.
Rugged and unique housing: Unlike the typical window facing display, all the electronic devices of RS430MNX03D01 almost directly attached with its LCD panel, any deformation of the housing means the devices inside will hit with LCD panel and broken together, also the possibly ESD problem due to the devices are inside the display, it should has a much strength housing than the general product.
High adaptability electronic: Risingstar has customers from all over the world, EU, US, Asia...using the right plug and adapt different voltage is the basic issue we should figure out for our customers, you do not need worry about this; the possibly OS for the display, we can offer both PC and Android to make you using easier; also the interfaces, HDMI/USB/VGA/DVI/DP/Type-C/RJ45 by your choice, our enegineer will help you found the most suitable motherboard.

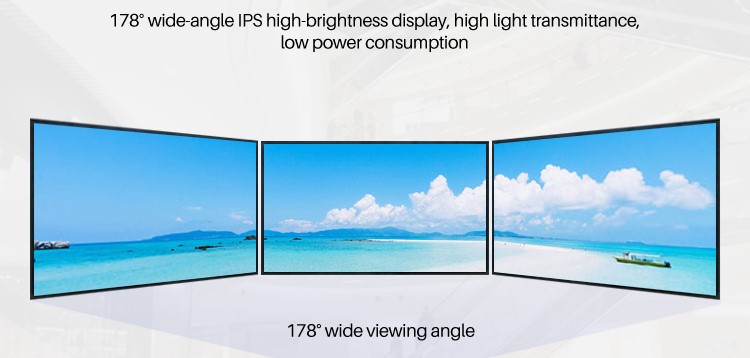

Ultra wide viewing angle: Most of the Risingstar display is IPS screen, which has extremely high viewing angle could reach 178° for both horizontal and vertical direction.
Multiple mounting type: for each display our engineer will reserved the mounting hole by your request, you can mounting it on the wall, ceiling, floor standing, hanging...whatever your choice, and our default mounting is VESA.
43-inch window facing display series:
RS430LNX01P01, lower brightness but full waterproof indoor display, special product for low light environment such like Museum/Aquarium...
RS430HNX02D05, much thicker and heavier type, but lower consumption and unique outer shell, all these for "Mute"...
RS430MNX01D01, classic design, the standard type of 43-inch window facing display
| Model Name | RS430MNX03D01 |
| Screen Size | 43" |
| Display Area (mm) | 941.18(W)×529.42(H) mm |
| Brightness | 2500 cd/m 2 (Light Sense Auto Adjust) |
| Resolution | 1920x1080 |
| Aspect Ratio | 16:09 |
| Contrast Ratio | 1200:1 |
| Response Time (Typical) | 8(Typ.)(Tr/Td) (ms) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
| Display Colors | 16.7M |
| OS | N/A |
| OSD Key | IR Remote Control |
| Speaker | 2*5W |
| Input Power | AC110-240V |
| Power Consumption | TBD |
| Radiator System | Automatic heat dissipation |
| Input Interface | PC AUDIO IN*1 EARPHONE OUT*1 |
| VGA*1 HDMI*1 DVI*1 AC IN*1 | |
| Dimensions (mm) | 966*544.5*50mm |
| Mounting | 400x400mm 4-M8,MAX_DEPTH=10mm |
| Weight (Net) | 17 KG |
| IP（Ingress Protection） | N/A |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
