10.1 Inch
Sunlight Readable Display
Compact. Sunlight-Readable. Industrial.
Purpose-built 10.1 inch sunlight readable displays with 500 to 1,500+ nits. Designed for EV chargers, fuel dispensers, outdoor kiosks, and industrial HMI in space-limited environments.
Featured Products

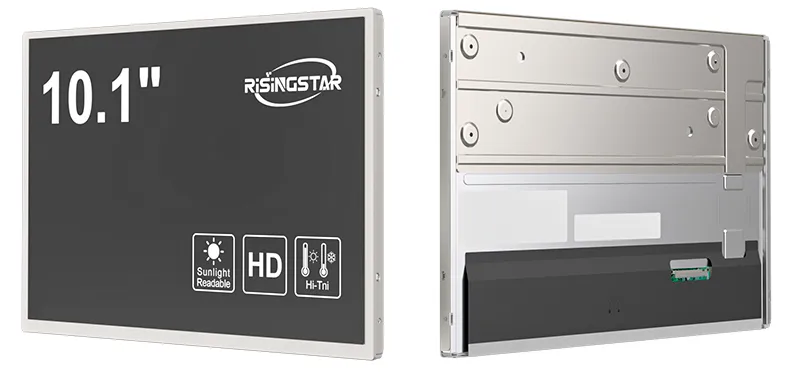

Premium 10.1 inch sunlight readable display modules for outdoor use.
| Model name | RS101ENT-N10 |
| Screen size | 10.1 " |
| Screen type | Outdoor LCD Panel |
| Resolution | 1280*800 , WXGA |
| Brightness (cd/m²) | 500- 5000cd/m2 |
| Contrast | 1200:1 |
| Screen size | 10.1 inch |
| Screen type | a-Si TFT-LCD, Liquid Crystal Module |
| Resolution | 1280 (RGB) × 800 (WXGA), 149 PPI |
| Brightness (cd/m²) | 2500/ 3000/ 4000/ 5000nits |
| Contrast | 1300:1 (Typ.) (Transmissive) |
| Operating temperature | -20 ~ 70 °C |
| Storage temperature | -30 ~ 80 °C |
| Screen size | 10.1 inch |
| Screen type | a-Si TFT-LCD, LCD Module |
| Resolution | 1280 (RGB) × 800, WXGA, 149 PPI |
| Brightness (cd/m²) | 500 ~ 1500 nits (Typ.) |
| Contrast | 800:1 (Typ.) (TM) |
| Operating temperature | -20 ~ 70 °C |
| Storage temperature | -20 ~ 70 °C |
| Model name | RS101ENT-GE15 |
| Screen size | 10.1 inch |
| Resolution | 1280(RGB)×800, WXGA, 149PPI |
| Brightness (cd/m²) | 1000 TO 5000NITS |
| Contrast | 800:1 |
| Operating temperature | -20 ~ 70 °C |
| Storage temperature | -30 ~ 80 °C |
| Model name | RS101ENT-GE10 |
| Screen size | 10.1" |
| Screen type | LCD module, a-Si TFT-LCD |
| Resolution | 1280 (RGB) × 800 [WXGA], 149 PPI |
| Brightness (cd/m²) | 1000 to 1500 nits |
| Contrast | 800:1 |
| Operating temperature | -20 ~ 70 °C |
| Storage temperature | -30 ~ 80 °C |
10.1 Inch Model Selection Guide
Choose from 9 brightness-graded models spanning 500 to 1,500 nits. The RS101WHB series offers cost-effective high brightness, while the RS101ICE series delivers extended temperature range for demanding outdoor environments.
| Model | Brightness | Resolution | Best For |
|---|---|---|---|
| RS101WHB-NE05 | 500 cd/m² | 1280 × 800 | Indoor HMI, cost-sensitive semi-outdoor |
| RS101WHB-NE07 | 700 cd/m² | 1280 × 800 | Sheltered kiosks, industrial panels |
| RS101WHB-NE08 | 800 cd/m² | 1280 × 800 | General outdoor, covered areas |
| RS101WHB-NE10 | 1,000 cd/m² | 1280 × 800 | Outdoor kiosks, fuel dispensers |
| RS101WHB-NE10-V1 | 1,000 cd/m² | 1280 × 800 | Outdoor kiosks (alternate backlight) |
| RS101WHB-NE10-V2 | 1,000 cd/m² | 1280 × 800 | Outdoor kiosks (alternate backlight) |
| RS101ICE-GE13 | 1,200–1,300 cd/m² | 1280 × 800 | Wide-temp direct sun, EV chargers |
| RS101WHB-NE15 | 1,500 cd/m² | 1280 × 800 | Full direct sun, mission-critical outdoor |
| RS101WHB-NE15-V1 | 1,500 cd/m² | 1280 × 800 | Full direct sun (alternate backlight) |
All models share 1280×800 WXGA resolution and LVDS interface. ICE series features wider -20°C to 70°C operating temperature vs. 0°C to 50°C for WHB series.
Technical Specifications
Factory-grade engineering parameters for the RS101WHB-NE05 reference design. Other brightness variants share the same mechanical and electrical footprint.
| Parameter | Specification |
|---|---|
| Panel Size | 10.1 inch diagonal |
| Resolution | 1280 × 800 (WXGA, 16:10) |
| Brightness Range | 500 – 1,500 cd/m² (selectable by model) |
| Contrast Ratio | 1300:1 (Typ.) |
| Display Mode | IPS, Normally Black, Transmissive |
| Viewing Angle | 85°/85°/85°/85° (L/R/U/D) — full IPS |
| Display Colors | 262K / 16.7M (6-bit + FRC / 8-bit) |
| Active Area | 216.96 × 135.6 mm |
| Outline Dimension | 227.91 × 148.0 × 8.4 mm (max depth) |
| Interface | LVDS (1 ch, 8-bit), 40 pins |
| Backlight Type | WLED, 50,000-hour lifetime |
| Operating Temperature (WHB) | 0°C to +50°C |
| Operating Temperature (ICE) | -20°C to +70°C |
| Storage Temperature | -20°C to +60°C (WHB) / -30°C to +80°C (ICE) |
| Panel Technology | a-Si TFT-LCD |
| Touch Panel | Optional PCAP or Resistive |
Specifications based on RS101WHB-NE05 reference. ICE series (RS101ICE-GE13) offers extended temperature range and Hi-Tni anti-blackening.
Find the Right Display for Your Application.
Quickly identify the ideal 10.1 inch sunlight readable display based on your brightness, touch, and deployment requirements.
| Target Application | Model Series | Brightness (Nits) | Touch Type | Key Features |
|---|---|---|---|---|
|
ev_station
EV Charger
|
RS101ICE-GE07 | 1,500 nits | PCAP (Gloved / Wet) | Anti-UV, Wide-Temp, IP65 |
|
local_gas_station
Fuel Dispenser
|
RS101ENT-GE10 | 1,000–1,500 nits | PCAP (Resistive Optional) | Vapor-Proof, Chemical Resistant |
|
point_of_sale
Outdoor Kiosk
|
RS101ENT-GE15 | 1,500 nits | PCAP (Anti-Vandal) | Anti-Glare, HDMI/LVDS |
|
precision_manufacturing
Industrial HMI
|
RS101ENT-NE05 | 500–700 nits | Optional PCAP / Resistive | Low Power, Open Frame, Wide-Temp |
|
directions_boat
Marine / Marine Control
|
RS101ENT-N10 | 1,000–1,500 nits | PCAP (Gloved / Wet) | Salt Spray Resistant, IP66 |
EV Charger
Model: RS101ICE-GE07
Brightness: 1,500 nits
Touch: PCAP (Gloved / Wet)
Features: Anti-UV, Wide-Temp, IP65
Fuel Dispenser
Model: RS101ENT-GE10
Brightness: 1,000–1,500 nits
Touch: PCAP (Resistive Optional)
Features: Vapor-Proof, Chemical Resistant
Outdoor Kiosk
Model: RS101ENT-GE15
Brightness: 1,500 nits
Touch: PCAP (Anti-Vandal)
Features: Anti-Glare, HDMI/LVDS
Industrial HMI
Model: RS101ENT-NE05
Brightness: 500–700 nits
Touch: Optional PCAP / Resistive
Features: Low Power, Open Frame, Wide-Temp
Marine Control
Model: RS101ENT-N10
Brightness: 1,000–1,500 nits
Touch: PCAP (Gloved / Wet)
Features: Salt Spray Resistant, IP66
Engineered for Extreme Outdoor Environments.
Standard screens fail within weeks outdoors. Our displays integrate 5 core technologies to ensure 5+ years of reliable, 24/7 operation in any condition.
IP65/IP66 Waterproof Ingress
Non-sealed displays fail quickly from rain, windblown dust, and condensation. Our fully sealed enclosures eliminate vulnerabilities to external elements, ensuring uninterrupted performance during severe weather.
100% dust-tight and water-resistant enclosures protect internal components from rainstorms and coastal salt spray.
IK10 Vandal-Resistant Design
Public deployments face the constant threat of physical impact and vandalism. We utilize robust galvanized steel and specialized glass to shield the core display components from deliberate damage and harsh physical shocks.
IK10-rated tempered front glass combined with a ruggedized metal chassis to absorb heavy impacts.
Smart Auto-Brightness
Integrated ambient light sensors dynamically adjust screen brightness from day to night, maximizing visibility while minimizing power consumption.
Overpowers noon sunlight & auto-dims at night.
Advanced Thermal Control
Intelligent cooling systems and heat dissipation designs prevent overheating and LCD blackening under direct sunlight exposure.
Flawless operation from -20°C to 70°C.
Zero-Gap Optical Bonding
Eliminates the air gap between the LCD panel and front glass, dramatically enhancing contrast and completely preventing moisture condensation.
Reduces light reflection by 80%.
Versatile Solutions for Infrastructure and Retail.
EV Charger Control Panels
1,000–1,500 nits
PCAP touchscreens tuned for gloved and wet-hand operation. IP65 rated and fully compatible with OCPP 1.6/2.0 standards.
Fuel Dispenser Displays
1,000–1,500 nits
Engineered with UV-resistant glass and vapor-proof sealing to withstand harsh chemical environments and direct sunlight.
Outdoor Kiosks & Payment
1,000–1,500 nits
Compact IP65/IP66 modules with anti-glare surfaces and anti-vandal options for secure public ticketing and transactions.
Industrial HMI Panels
500–1,000 nits
Washdown-safe stainless steel integrations designed for food, pharmaceutical, and heavy industrial automation systems.
Matching Brightness to Your Compact Installation.
For a 10.1 inch sunlight readable display, extreme brightness must be balanced with thermal limits. Selecting the right nits ensures perfect readability without overheating the compact enclosure.
500–700
nits
Factory automation HMIs, food & beverage processing panels. High ambient light, no direct sun.
700–1,000
nits
Vending machines under awnings, covered payment terminals. Indirect sunlight with strong glare.
1,000–1,500
nits
EV charging stations, fuel dispensers, ticketing kiosks. Direct solar radiation requiring Hi-Tni protection.
1,500+
nits
Desert gas pumps, marine control panels. Maximum visibility requiring advanced thermal routing in tight spaces.
The RisingStar® Engineering Benchmark.
Industrial-grade specifications for mission-critical applications.
500 to 1,500+ nits
Optimized for compact thermal profiles
Up to 50,000 Hours
Industrial-grade WLED backlight
Hi-Tni Technology
Anti-blackening technology
PCAP Touch
Wet & gloved hand support
100% Inspected
72-hour high-temperature aging protocols
-20°C to 70°C
Industrial-grade stability
IP65 / IP66
Fully sealed or open-frame integration
178°
Full viewing angle IPS / ADS panels
LVDS / eDP
Seamless integration for system builders
Factory-Direct OEM/ODM Since 2009
Based in Shenzhen, we design and manufacture outdoor displays for system integrators and brands. Every unit undergoes 72-hour aging test before shipment.
8 Hours
Quote Response
10 Days
Sample Delivery
3 Years
Standard Warranty
ISO 9001
Certified Facility
ISO 9001
Certified Facility
Custom OEM/ODM Process.
From concept to mass production, we provide end-to-end customization for your specific project requirements.
Requirements
Define size, brightness, protection level, touch type, interface, and housing material. Our engineers provide specification consultation.
Prototype
Functional prototype delivered within 10 working days. Includes panel assembly, backlight module, and interface board for testing and evaluation.
Validation
On-site testing under actual deployment conditions. Brightness, thermal performance, and touch responsiveness verified against specifications.
Production
Mass production in our 4,000㎡ ISO-certified facility. 100% factory inspection, 72-hour aging test, and CE/FCC/RoHS certification included.
Frequently Asked Questions.
Yes. Our 1,000–1,500-nit models are specifically engineered for full sunlight. For installations in unshaded desert or tropical locations, we can explore custom higher-brightness configurations.
Absolutely. We use outdoor-tuned PCAP touch controllers designed to reject water and register glove contact reliably — essential for EV chargers and fuel dispensers.
Our Hi-Tni solar-resilient technology prevents thermal blackening, and we design the backlight and power electronics for low heat generation within a wide -20°C to 70°C operating range.
Yes, we specialize in open-frame configurations with standard LVDS/eDP interfaces, making integration into your kiosk or control panel straightforward.
Industrial-grade sunlight readable displays with WLED backlighting are typically rated for up to 50,000 hours of operation. At 24/7 usage, this equates to approximately 5.7 years of continuous service.
Yes, we offer single-unit sales for prototyping and evaluation purposes, giving you the flexibility to test before committing to a volume order.
