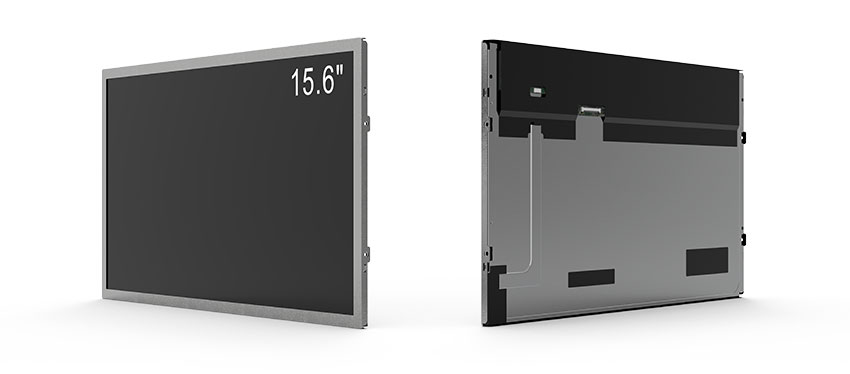

15.6" Sunlight Readable TFT/IPS LCD Screen

Brand:

RisingStar

Model name:

RS156ENT-N12

Screen size:

15.6"

Screen type:

high brightness

Resolution:

1920 (RGB) × 1080, FHD, 141 PPI

Brightness (cd/m²):

Brightness can be customized from 500 to 3000.

Key Specifications

Item	Specification
Panel Size	15.6 inches
Panel Type	a-Si TFT-LCD Module
Resolution	1920 (RGB) × 1080, FHD, 141 PPI
Pixel Arrangement	RGB Vertical Stripe
Active Area	344.16 (W) × 193.59 (H) mm
Outline Dimension (Viewing Size)	347.06 × 196.49 mm (H × V)
Surface Treatment	Anti-glare, Hard Coating (3H)
Brightness	500–3000 nits
Contrast Ratio	800:1 (Typ.) – Transmissive
Best Viewing Angle	Full Viewing Angle
Optical Mode	AAS (IPS-type), Normally Black, Transmissive
Viewing Angle (CR ≥ 10)	85/85/85/85 (Left/Right/Up/Down)
Response Time (Tr/Td)	13/12 ms (Typ.)
Color Depth	16.2M, 73% NTSC
Backlight System	WLED, 50,000 hrs lifetime, Integrated LED Driver
Weight	1.06 / 1.10 kg (Typ./Max.)
Refresh Rate	60Hz • 120Hz (60Hz input) – built-in MEMC • 120Hz + 120Hz Dual Mode (Panel + Backlight) • 240Hz (60Hz input) – built-in MEMC
Signal Interface	LVDS (2ch, 8-bit), 40-pin connector
Supply Voltage	3.3V (Typ.)
Storage Temperature	–40 ~ 90°C
Operating Temperature	–30 ~ 85°C
Panel Categories	IPS Hard-Screen Series: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode 2, PLS, SFT, Vistarich VA Soft-Screen Series: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA

Note: © ScreenDB – Original source protected; reformatted version created for technical documentation use.

Technical Notes

1. Wide Temperature Operation

The panel is engineered for –30°C to 85°C operation, making it suitable for harsh environments such as outdoor sunlight exposure, extreme cold starts, or heat-intensive industrial equipment.

2. Ultra-High Brightness Option (up to 3000 nits)

• Ensures sunlight readability
• Compatible with outdoor kiosks, EV chargers, and industrial terminals
• Supports black-level defect prevention under extreme luminance

3. AAS / IPS-Type Wide Viewing

AAS (Advanced Super Dimension Switch) provides:

Full viewing angle
High color consistency
Better readability in public or multi-directional spaces

4. MEMC Frame Rate Enhancement

The optional 120Hz / 240Hz MEMC ensures smoother motion display, ideal for high-speed video, mapping, or vehicle monitoring.

Typical Applications

This 15.6-inch high-brightness industrial LCD is widely used in:

Outdoor & Semi-Outdoor

EV charging station displays
Gas pump / fuel dispenser screens
Outdoor kiosks
Sunlight readable digital signage
Smart vending machines

Transportation & Industrial

Passenger Information Display (PID)
Railway / metro / airport terminals
Industrial control HMI panels
Marine navigation monitors
Factory automation systems

Commercial & Retail

Window-facing displays
Retail digital signage
Self-service checkout terminals
