12.1 Inch

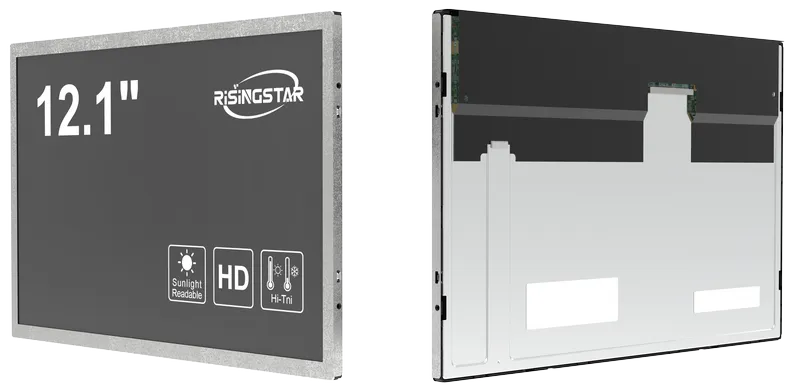

Sunlight Readable Display
Rugged. High-Brightness. Legacy-Ready.
Purpose-built 12.1 inch sunlight readable displays delivering 1,000 to 1,500 nits of genuine outdoor-readable luminance. The ideal 4:3 and 16:10 solution for EV chargers, marine navigation, and industrial HMI in legacy enclosures.
Featured 12.1 inch Products
Select from 8 brightness-graded models spanning 500 to 1,500 nits. Each model is purpose-tuned for a specific deployment environment — from indoor factory HMI to full direct-sun EV charging stations.
| Screen Diagonal | 12.1 inch |
| Model No | RS121TD02-GE08 |
| Active Area | 261.12(W)×163.2(H) mm |
| Resolution | 1280(RGB)×800, WXGA, 124PPI |
| Display Mode | a-Si TFT-LCD, LCM |
| Contrast Ratio : | 700:1 |
| White Luminance ( Center ) | 800 nits |
| Screen size | 12.1 inch |
| Screen type | a-Si TFT-LCD, LCD Module |
| Resolution | 1024(RGB) × 768 (XGA), 105 PPI |
| Brightness (cd/m²) | 500 ~1500 nits |
| Contrast | 1000:1 (Typ.), Transmissive |
| Operating temperature | -20 ~ 70 °C |
| Storage temperature | -30 ~ 80 °C |
| Model Name | RS121XCE-GE10 |
|---|---|
| Panel Size | 12.1 inch |
| Resolution | 1280 × 800 (WXGA) |
| Aspect Ratio | 16:10 (W:H) |
| Brightness | 1000 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) |
| Model name | RS121ENT-GE15 |
| Screen size | 12.1" |
| Screen type | Industrial Ultra High Brightness |
| Resolution | 1024(RGB)×768, XGA 105PPI |
| Brightness | Brightness can be customized from 500 to 1500. |
| Model name | RS121ETN-GE15 |
| Screen size | 12.1" |
| Screen type | Outdoor LCD Panel |
| Resolution | 1280(RGB)×800 |
| Brightness | 500~3000nits |
| Model name | RS121ENT-N10 |
| Screen size | 12.1 " |
| Screen type | Outdoor LCD Panel |
| Resolution | 1280(RGB)×720 |
| Brightness (cd/m²) | 1000 |
| Model name | RS121NET-GE10 |
| Screen size | 12.1 " |
| Screen type | Outdoor LCD Panel |
| Resolution | 1280(RGB)×800 |
| Brightness | 800/ 1000/ 1500nits |
| Model name | RS121XCE-GE15 |
| Screen size | 12.1 " |
| Screen type | Outdoor LCD Monitor |
| Resolution | 1280(RGB)×800 |
| Brightness (cd/m²) | 1500 |
| Model name | RS121HAN-GE10 |
| Screen size | 12.1" |
| Screen type | Outdoor LCD Panel |
| Resolution | 1280(RGB)×800 |
| Brightness | 1000 cd/m² |
| Viewing Angle | 6 o'clock |
| Interface | LVDS |
| Built-in Component | Controller IC |
| Features | Sunlight readable, suitable for outdoor application |
12.1 Inch Model Selection Guide
Choose the exact brightness and resolution combination for your deployment environment. All models share the same mechanical footprint for drop-in interchangeability.
| Model | Brightness | Resolution | Best For |
|---|---|---|---|
| RS121XCE-GE05 | 500 cd/m² | 1280 × 800 | Indoor HMI, cost-sensitive builds |
| RS121XCE-GE07 | 700 cd/m² | 1280 × 800 | Semi-outdoor, sheltered kiosks |
| RS121XCE-GE08 | 800 cd/m² | 1280 × 800 | General industrial, factory floor |
| RS121XCE-GE10 | 1,000 cd/m² | 1280 × 800 | Outdoor kiosks, EV chargers |
| RS121XCE-GE12 | 1,200 cd/m² | 1280 × 800 | High-ambient, direct-sun partial shade |
| RS121XCE-GE15 | 1,500 cd/m² | 1280 × 800 | Full direct sun, outdoor mission-critical |
| RS121XGE-GE10 | 1,000 cd/m² | 1024 × 768 | Legacy 4:3 HMI replacement |
| RS121XGE-GE15 | 1,500 cd/m² | 1024 × 768 | Legacy 4:3 outdoor conversion |
All models share common 20-pin LVDS interface, -20°C to 70°C operating range, and Hi-Tni anti-blackening technology.
Technical Specifications
Factory-grade engineering parameters for the RS121XCE series (1280×800) and RS121XGE series (1024×768).
| Parameter | Specification |
|---|---|
| Panel Size | 12.1 inch diagonal |
| Resolution | 1280 × 800 (WXGA, 16:10) / 1024 × 768 (XGA, 4:3) |
| Brightness Range | 500 – 1,500 cd/m² (selectable by model) |
| Contrast Ratio | 1000:1 (Typ.) |
| Display Mode | IPS, Normally Black, Transmissive |
| Viewing Angle | 89°/89°/89°/89° (L/R/U/D) — full IPS |
| Display Colors | 262K / 16.7M (6-bit + FRC / 8-bit) |
| Active Area (16:10) | 245.76 × 184.32 mm |
| Outline Dimension | 260.5 × 204.0 × 8.9 mm (max depth) |
| Interface | LVDS (1 ch, 6/8-bit), 20 pins |
| Backlight Type | WLED, 50,000-hour lifetime |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Liquid Crystal | Hi-Tni (Tni > 100°C, anti-blackening) |
| Panel Technology | a-Si TFT-LCD |
| Ingress Protection | IP65 / IP66 (optional, sealing dependent) |
Base panel glass sourced from BOE (G121WHB-S08). Backlight and LC module customized by RisingStar.
Engineered for Extreme Outdoor Environments.
Standard screens fail within weeks outdoors. Our displays integrate 5 core technologies to ensure 5+ years of reliable, 24/7 operation in any condition.
IP65/IP66 Waterproof Ingress
Non-sealed displays fail quickly from rain, windblown dust, and condensation. Our fully sealed enclosures eliminate vulnerabilities to external elements, ensuring uninterrupted performance during severe weather.
100% dust-tight and water-resistant enclosures protect internal components from rainstorms and coastal salt spray.
IK10 Vandal-Resistant Design
Public deployments face the constant threat of physical impact and vandalism. We utilize robust galvanized steel and specialized glass to shield the core display components from deliberate damage and harsh physical shocks.
IK10-rated tempered front glass combined with a ruggedized metal chassis to absorb heavy impacts.
Smart Auto-Brightness
Integrated ambient light sensors dynamically adjust screen brightness from day to night, maximizing visibility while minimizing power consumption.
Overpowers noon sunlight & auto-dims at night.
Advanced Thermal Control
Intelligent cooling systems and heat dissipation designs prevent overheating and LCD blackening under direct sunlight exposure.
Flawless operation from -20°C to 70°C.
Zero-Gap Optical Bonding
Eliminates the air gap between the LCD panel and front glass, dramatically enhancing contrast and completely preventing moisture condensation.
Reduces light reflection by 80%.
The Core Technologies of 12.1 inch Visibility.
Every 12.1 inch sunlight readable display from RisingStar integrates five pillars of industrial engineering.
High-Bright Backlight
Industrial WLED modules delivering 1,000–1,500 nits (up to 29.4W typical) with an aluminum-core heatsink for sustained outdoor operation. LMS dimming for precise luminance control across ambient conditions.
Hi-Tni Solar Resilience
Advanced LC formulation with Tni > 100°C prevents the isotropic transition that causes permanent blackening. Validated through 1,000-hour solar-radiation chamber testing per IEC 60068-2-5.
Optical Bonding
OCR (Optical Clear Resin) / LOCA lamination fills the gap between cover glass and LCD panel, eliminating condensation and improving outdoor contrast by up to 300%. Reduces surface glare by 50% versus air-gap designs.
AR / AG Coatings
Multi-layer AR coating reduces surface reflectance to <1% (vs. 4–5% untreated). AG hard-coat rated 3H pencil hardness protects against scratches in high-traffic kiosk environments.
PCAP Touch System
Projected Capacitive (PCAP) controllers with proprietary firmware for wet-surface rejection and glove detection (up to 3mm thickness). Supports multi-touch (10-point) with 1.5mm cover glass.
The 12.1 inch Engineering Benchmark.
Up to 1,500 nits
Sunlight-readable with high-efficiency WLED backlight
-20°C to 70°C
Wide-range industrial stability
Hi-Tni Solar Resilience
Advanced anti-blackening technology
PCAP Multi-Touch
Wet-hand and glove compatibility
Up to 50,000 Hours
Industrial-grade WLED backlights
IP65 / IP66
Fully sealed or open-frame modules
Factory-Direct OEM/ODM Since 2009
Based in Shenzhen, we design and manufacture professional outdoor displays for system integrators globally. Every unit undergoes a rigorous 72-hour burn-in test.
8 Hours
Quote Response
10 Days
Sample Delivery
3 Years
Standard Warranty
ISO 9001
Certified Facility
Frequently Asked Questions.
Yes. Our 1,000–1,500 nit 12.1 inch modules use high-efficiency LED backlighting. Power consumption is managed within a range suitable for typical kiosk and industrial power budgets.
Our Hi-Tni solar-resilient technology prevents thermal blackening defects, ensuring reliable operation across an industrial temperature range of -20°C to 70°C.
Absolutely. Our outdoor-tuned PCAP controllers are specifically designed to detect touches through thick work gloves and to ignore rain droplets, making them ideal for fuel dispensers and EV chargers.
In most cases, yes. We follow industry-standard mechanical outlines for the classic 4:3 and 16:10 aspect ratios used in factory HMI and outdoor kiosks. We can provide mechanical drawings for verification.
Industrial-grade sunlight readable displays with WLED backlighting are typically rated for up to 50,000 hours of operation. At 24/7 usage, this equates to approximately 5.7 years of continuous service.
We offer an industry-leading 3-year warranty for complete monitor units and a 1-year warranty for individual LCD modules. For long-term projects, extended warranty options are available for all our products to ensure maximum reliability.
Absolutely. We provide comprehensive OEM/ODM services, including custom chassis materials (Stainless steel, Aluminum, or SECC), specialized optical bonding, high-Tni solar resilience, and bespoke I/O configurations tailored to your technical specifications.
Ready to Deploy in Extremes?
Consult with our technical team to customize a 12.1 inch sunlight-readable solution for your specific project requirements.
