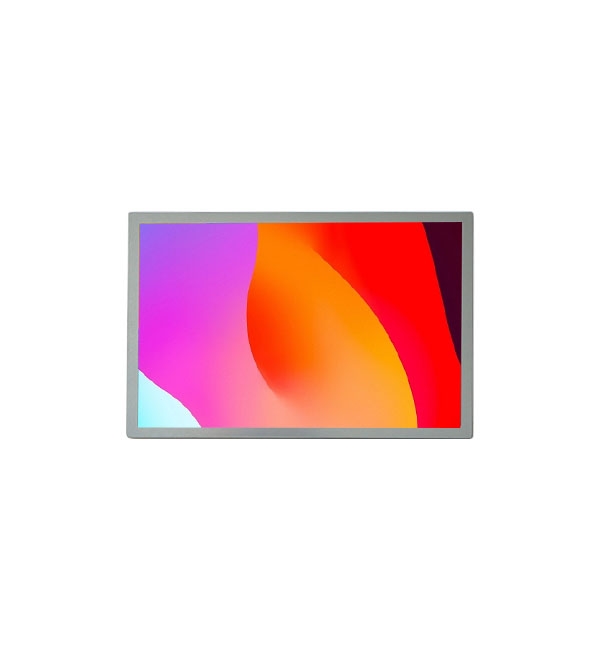

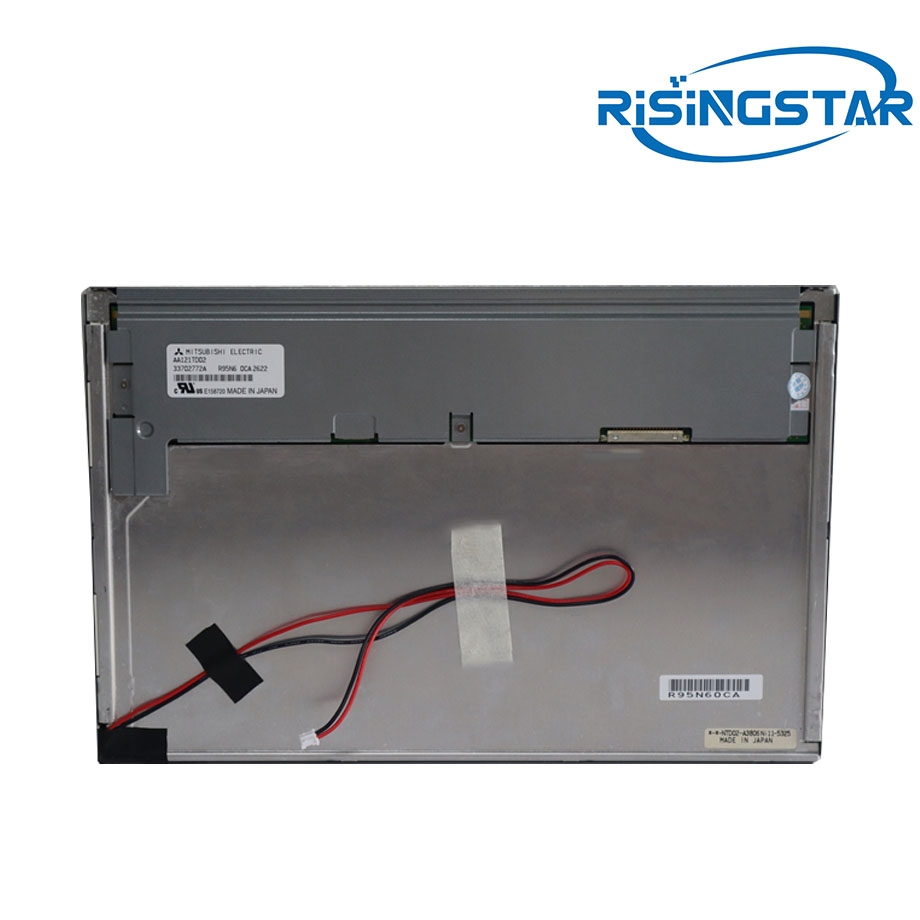

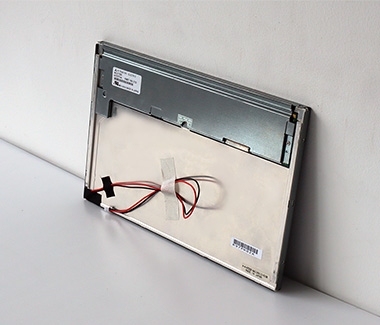

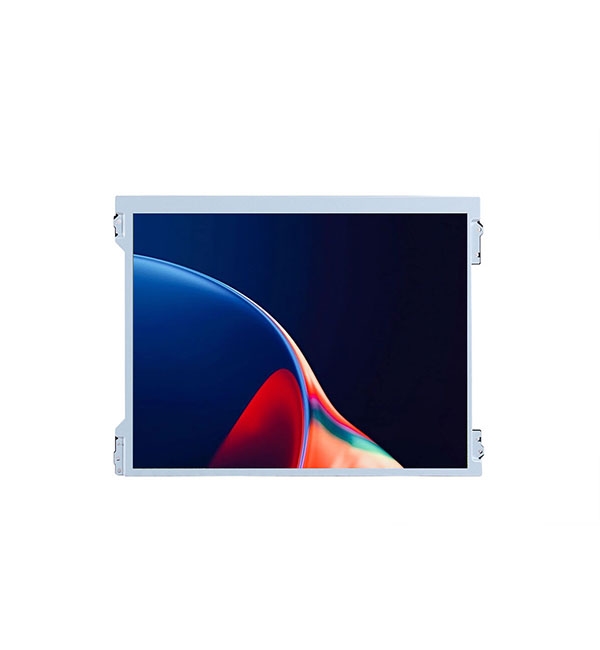

12.1" Sunlight Readable Industrial LCD Display

The RisingStar RS121XCE-GE10 is a premium 12.1-inch industrial-grade LCD module engineered specifically for high-reliability applications in challenging environments. Combining advanced display technology with rugged durability, this panel is the ideal solution for engineers and system integrators seeking uncompromising visual performance under direct sunlight and extreme temperature fluctuations.

Exceptional Visual Clarity and Sunlight Readability

Featuring a native WXGA resolution of 1280 x 800 and a 16:10 widescreen aspect ratio, the RS121XCE-GE10 delivers crisp, high-definition imagery. The standout feature is its ultra-high brightness of 1000 nits (cd/m²), which ensures excellent legibility even in high-ambient light or outdoor settings. Complemented by a high contrast ratio of 1000:1, the display produces deep blacks and vibrant colors, maintaining professional-grade optical quality across various lighting conditions.

Advanced IPS and Hi-Tni Technology

To ensure a superior user experience, the module utilizes IPS (In-Plane Switching) technology, providing expansive viewing angles of 89°/89°/89°/89°. This ensures consistent color accuracy and image integrity from any perspective, which is critical for multi-user monitoring or automotive dashboards. Furthermore, the panel is equipped with specialized Hi-Tni (High-Temperature Liquid Crystal) technology. This innovation prevents the "Blackening Effect"—a common failure in standard LCDs when exposed to solar radiation—allowing the screen to operate reliably under intense heat without losing image visibility.

Ruggedized for Extreme Environments

Designed for 24/7 industrial operation, the RS121XCE-GE10 boasts an impressive wide-temperature range. It operates seamlessly from -30°C to 85°C and can be stored in conditions as low as -40°C or as high as 90°C. This industrial-grade endurance makes it perfectly suited for outdoor digital signage, heavy-duty industrial controllers, marine navigation systems, and automotive displays where environmental stability is non-negotiable.

Seamless Integration and Versatility

The module features a slim, flat-rectangle form factor with a maximum depth of only 8.9 mm, facilitating easy integration into compact enclosures or open-frame monitors. It utilizes a standard 20-pin LVDS interface, supporting both 6-bit and 8-bit color depths (262K/16.7M colors) for smooth gradients and professional rendering. Whether deployed in a rugged outdoor kiosk or a sophisticated medical interface, the RS121XCE-GE10 provides the technical edge required for modern high-brightness display applications.
