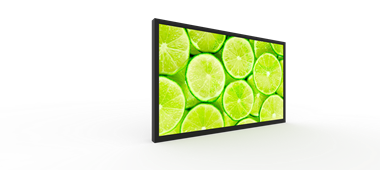

1200 nits 32 inch 8K high brightness LCD panel
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
RisingStarLCD ultra sharp 8K 32 inch LCD panel with 1200 nits high brightness, it can make you can see areas where the brightness of the image is very high and overexposed, such as directly under sunlight.
RS315QU1-DG12 is Ringstar 32 inch high brightness LCD pane that is well equipped with LG original 8K open cell (LM315QU1-SSA2), it is 31.5 inch diagonally measured active display area with QUHD resolution (7680 horizontal by 4320 vertical pixel array), and with Risingstar customizes LED DLED back light, it can achieve 1200 nits brightness. it is a trans missive, operating in the normally black mode,
This 8K high brightness panel is intended to support displays where high brightness, super wide viewing angle, high color saturation and high color are important.
32 inch 8k LCD high brightness LCD panel Features
High brightness panel 1200 nits
QUHD 7680(RGB)*4320 resolution (16:9)
High contrast ratio (1300:1)
Wide viewing angle (178°)
Fast response time: gray to gray (G to G) 6ms
IPS trans missive, normally black mode,
High frame rate: 60HZ
Low power consumption

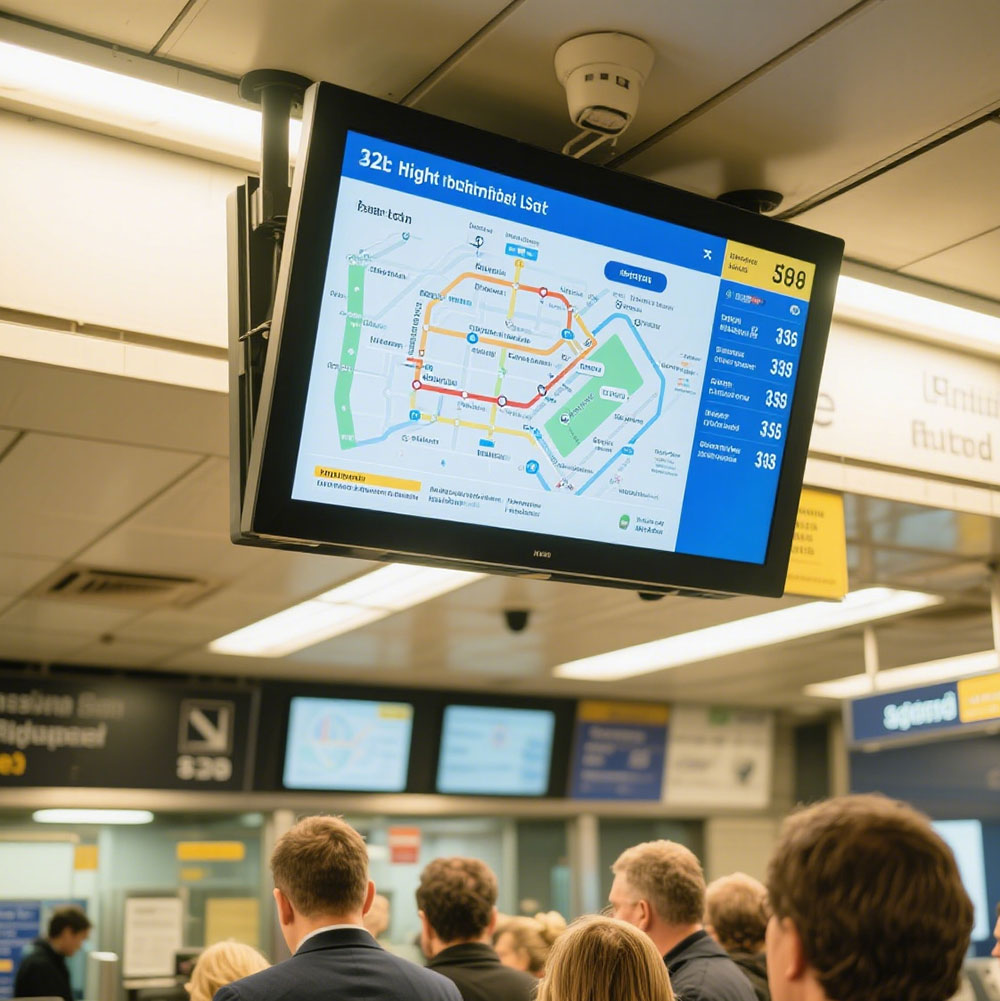

Based on its 1200 nits high brightness, DCI-P3, Adobe RGB, sRGB, 4-side borderless, white LED backlight, reverse terminal, 10-bit gray scale, 100% Adobe RGB, 99% DCI-P3, 4-side borderless and other features, this model is recommended Used in outdoor devices. computer monitors, 3D screens.
| Screen Diagonal | 32 inch |
| LG panel no | LM315QU1-SSA2 |
| Panel Brand | RisingStar |
| Model No | RS315QU1-DG15 |
| Active Area | 698.11(W)×392.69(H) mm |
| Pixels | 7680(RGB)×4320, QUHD, 279PPI |
| Physical Size | 731.4(W)×430.4(H)×64.5(D) mm |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| White Luminance ( Center ) | 1200 cd/m2 (Typ.) [cd/m2 ] |
| Contrast Ratio | 1300:1 (Typ.) |
| Optical Response Time | 14 (Typ.)(G to G) ms |
| Nominal Input Voltage | 10.0V (Typ.) |
| Frame Rate | 60Hz |
| Viewing Angle | 85/85/85/5 (Typ.)(CR≥10) |
| Weight [g] | 4.8kgs(Typ.) |
| Interface Type | V-by-One 16 lane × 2ch, 143 pins |
| Support Color | 1.07B , 100% Adobe RGB |
| Surface Treatment | Hard coating (2H), |
| RoHS Compliance | RoHS Compliance |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
